12 14 513 Replacing pulse generator on right exhaust camshaft (N62)

WARNING: This page is about a different variant/trim than selected.

(Cylinder bank 1 to 4)

Switch off ignition.

Remove acoustic cover.

Remove right ignition coil cover. See Figure.

Unlock and detach plug connection (1).

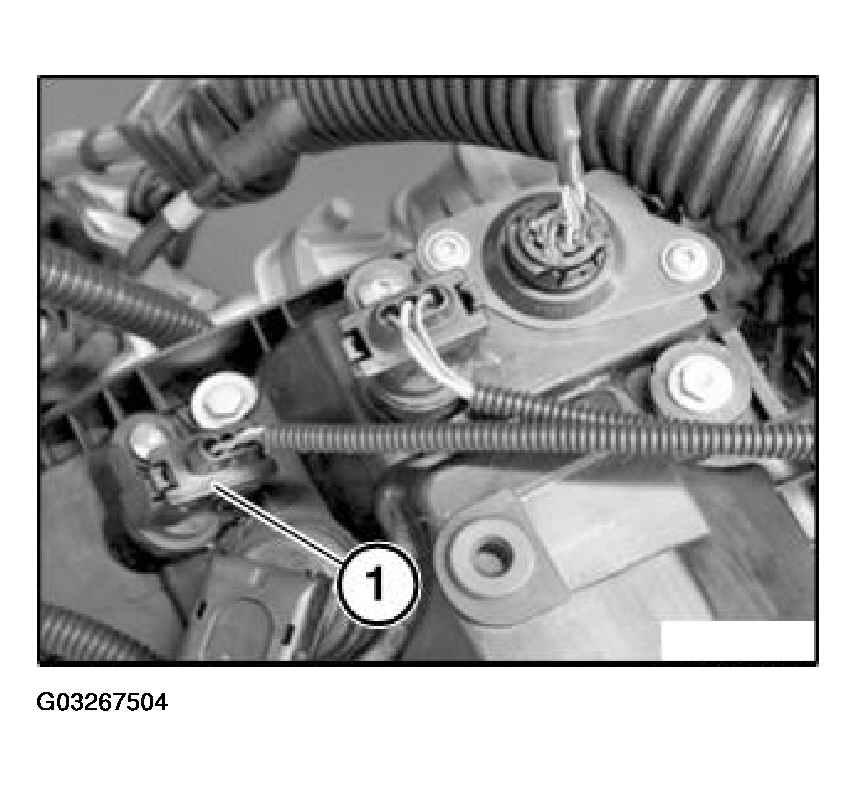

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw.

Remove pulse generator (2).

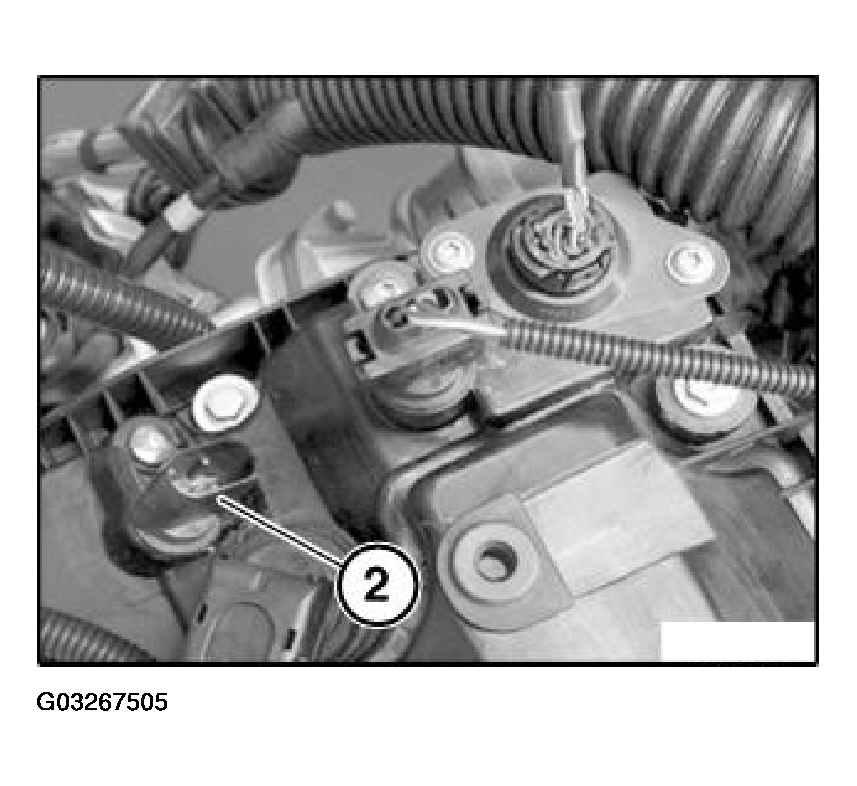

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

NOTE: Interrogate fault memory of DME control unit. Check stored fault messages. Rectify faults. Now clear the fault memory.
