11 23 010 Removing and installing/replacing vibration damper (N62)

WARNING: This page is about a different variant/trim than selected.

Remove alternator drive belt. See GENERATOR DRIVE BELT 4.4L (N62) .

Remove A/C compressor drive belt. See A/C COMPRESSOR DRIVE BELT 4.4L (N62) .

Remove fan cowl.

Release screws and remove vibration damper (1).

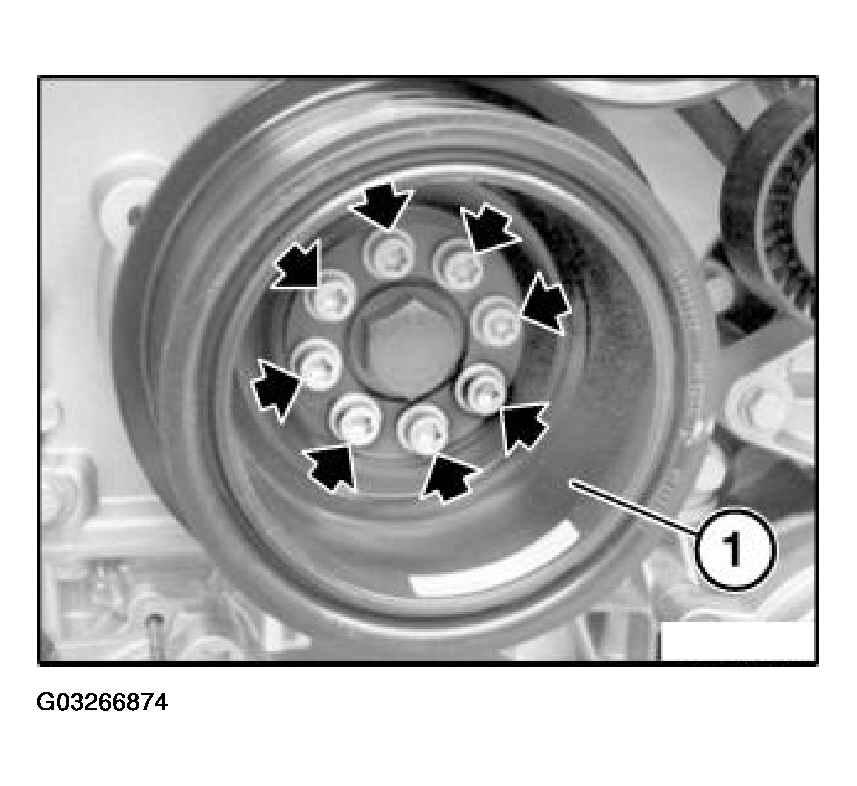

Fig 1: Removing Vibration Damper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Vibration damper is secured on hub with an alignment pin (4).

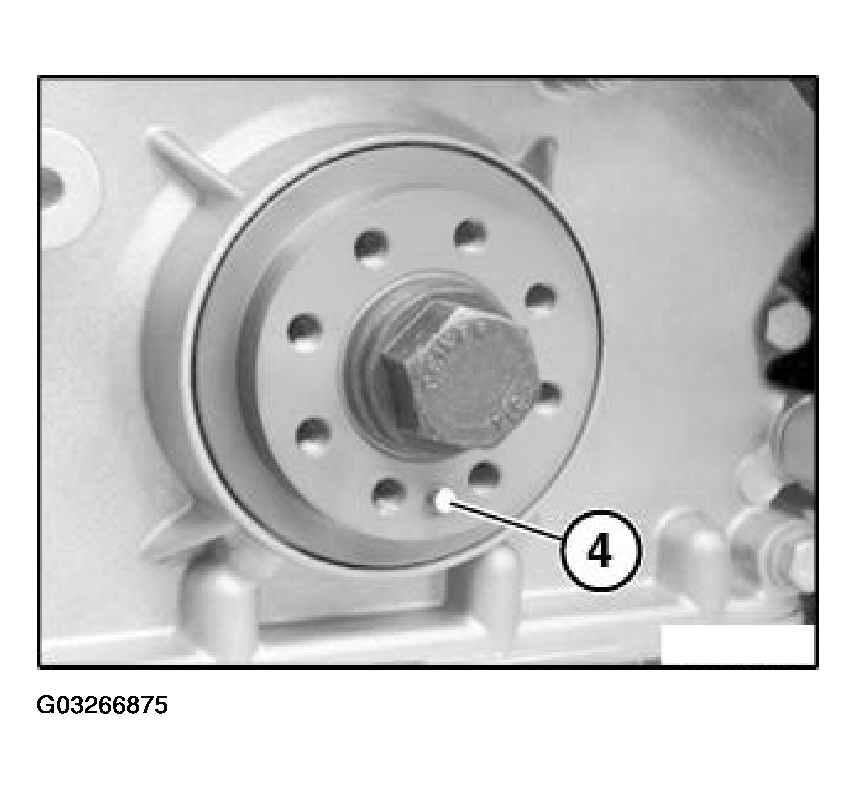

Fig 2: Securing Vibration Damper On Hub With An Alignment Pin
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit bore (2) in vibration damper (1) on alignment pin in hub.

Fit washer (3).

Replace screws.

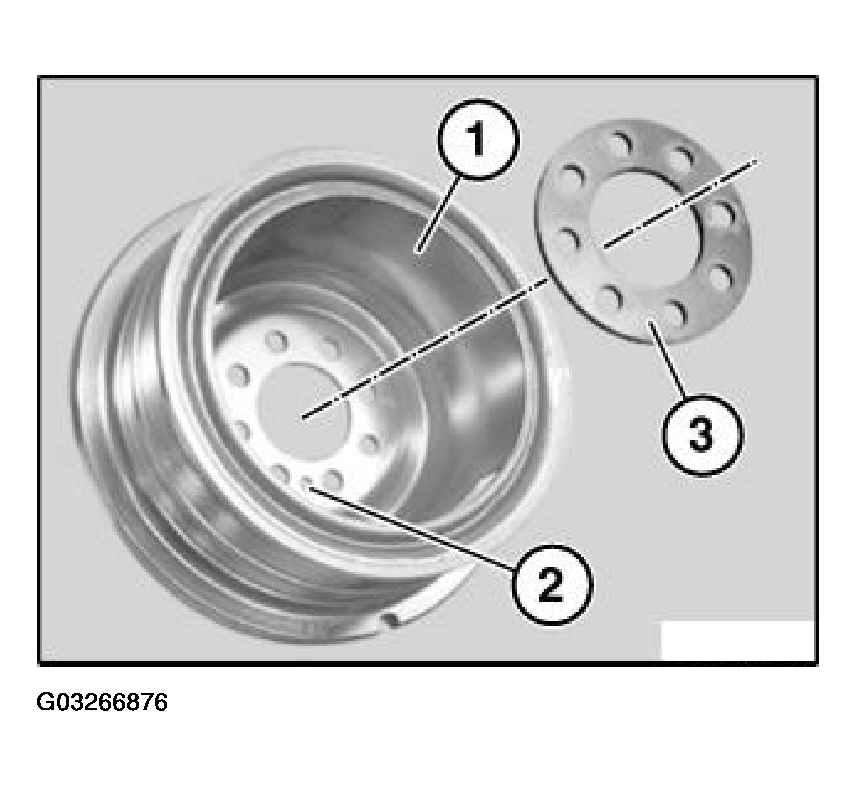

Fig 3: Fitting Bore In Vibration Damper On Alignment Pin In Hub

Courtesy of BMW OF NORTH AMERICA, INC.
