11 36 715 Removing and installing/replacing both solenoid valves on left side (N62)

WARNING: This page is about a different variant/trim than selected.

(cylinder bank 5 to 8)

Necessary preliminary tasks:

NOTE: Solenoid valve (1) controls adjusting unit on inlet side.
Solenoid valve (2) controls adjusting unit on exhaust side.

Unlock plug of solenoid valves (1 and 2) and disconnect.

Release screws and remove holder (3).

Pull out solenoid valves (1 and 2).

Installation:

Check holder (3) for deformation; replace if necessary.

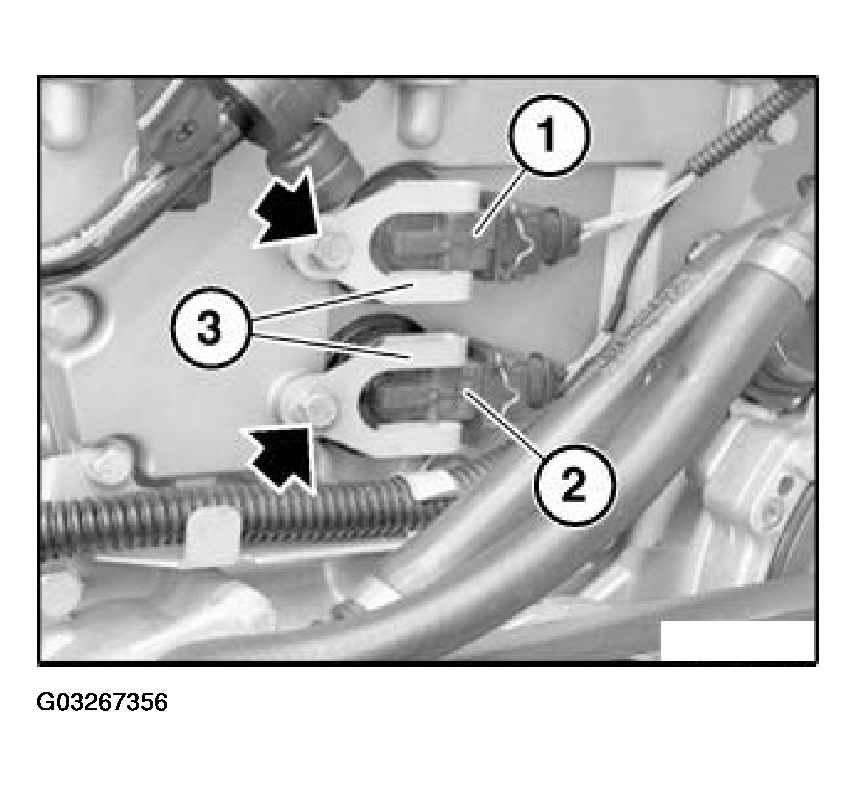

Fig 1: Disconnecting Plug Of Solenoid Valves
G03267356Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean sealing faces (1) on cylinder head.

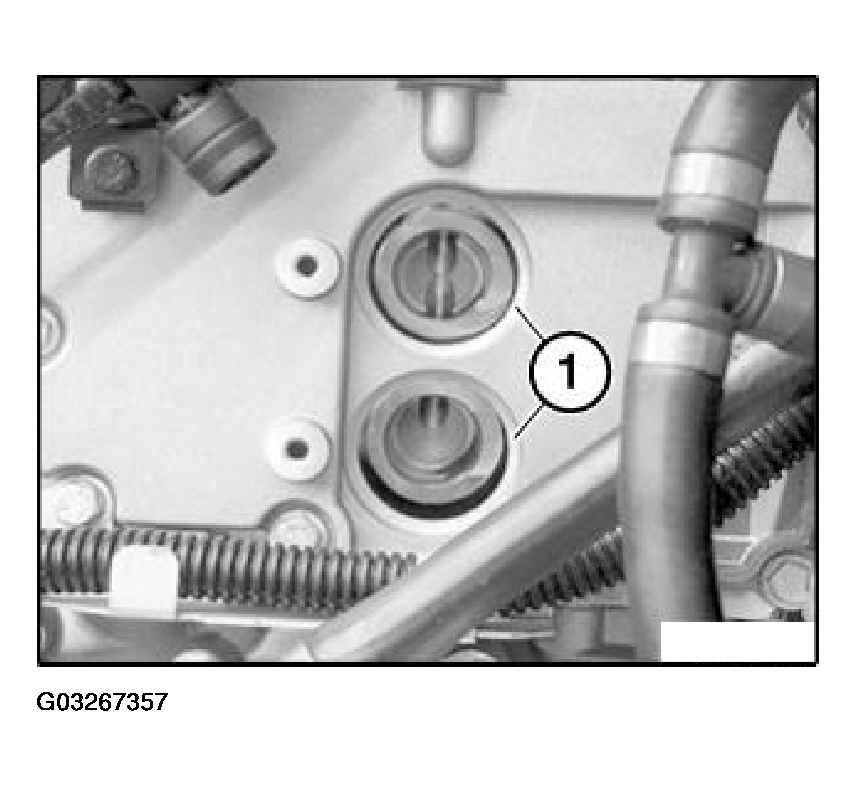

Fig 2: Cleaning Sealing Faces Of Cylinder Head
G03267357Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-rings (1 and 2) on solenoid valve (3) and lubricate.

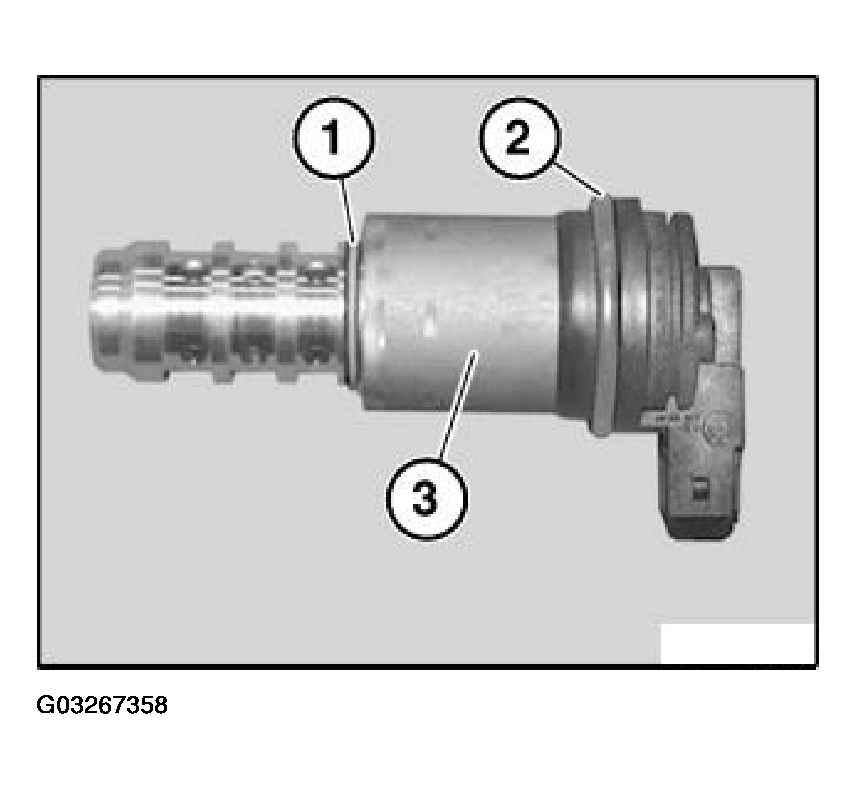

Fig 3: Replacing O-Rings On Solenoid Valve
G03267358Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press in solenoid valve as far as it will go.

Make sure holders are in correct installation positions.

Install and tighten down screws.

Now clear the fault memory.

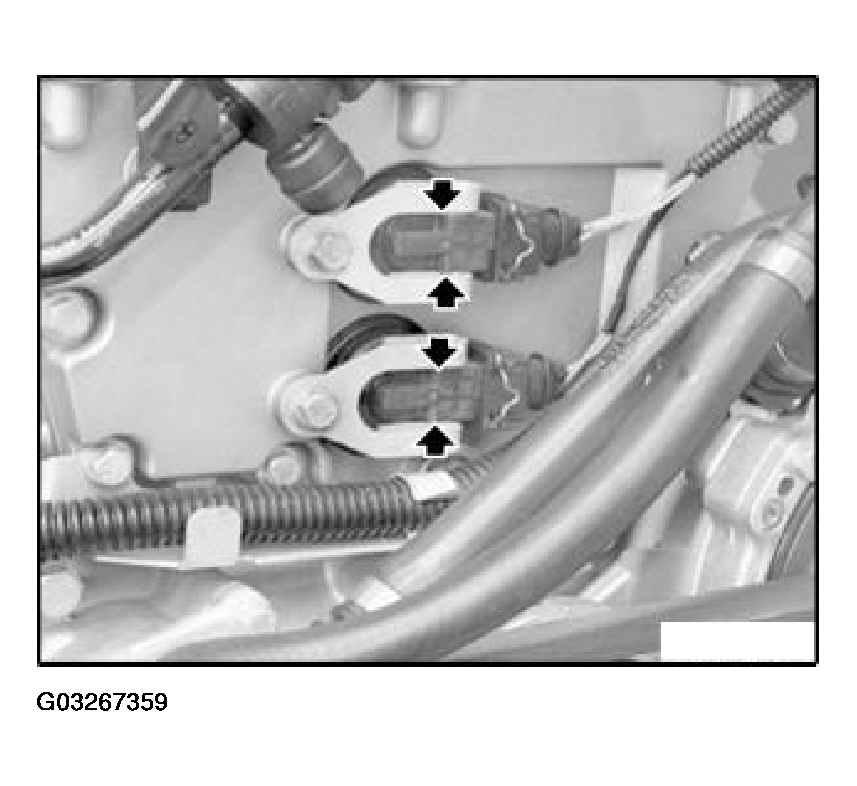

Fig 4: Tightening Holders Screws
G03267359Courtesy of BMW OF NORTH AMERICA, INC.
