Cylinder Bank 5 To 8

WARNING: This page is about a different variant/trim than selected.

Fit conrod with piston pin to piston in such a way that arrow on piston points to front and flat end of conrod points to rear.

Install conrod bearing.

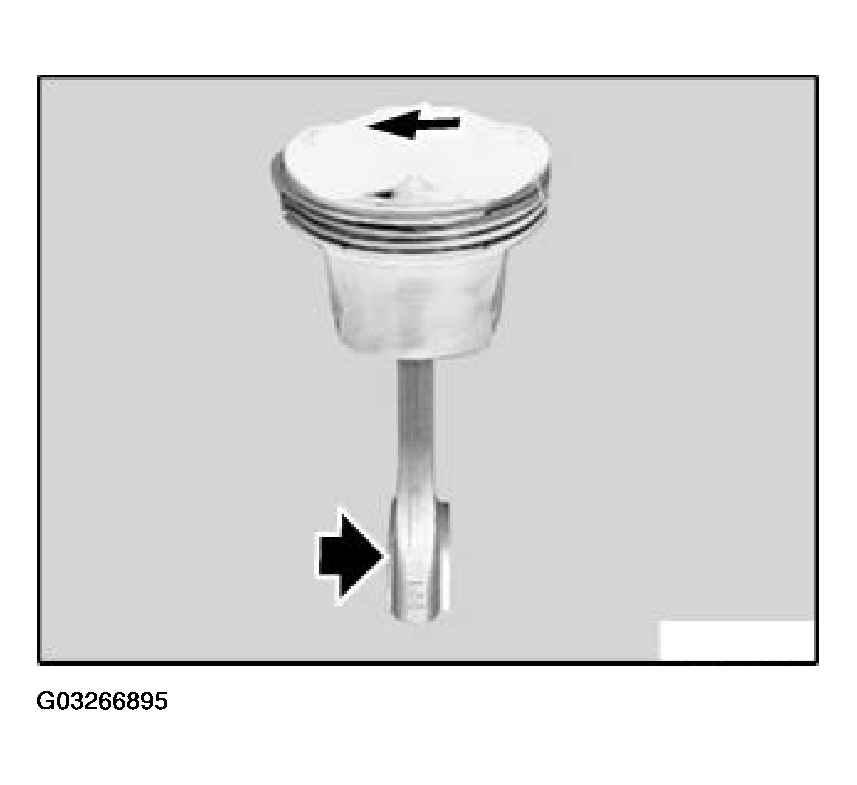

Fig 1: Identifying Installation Position Of Connecting Rod (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Install retaining ring.

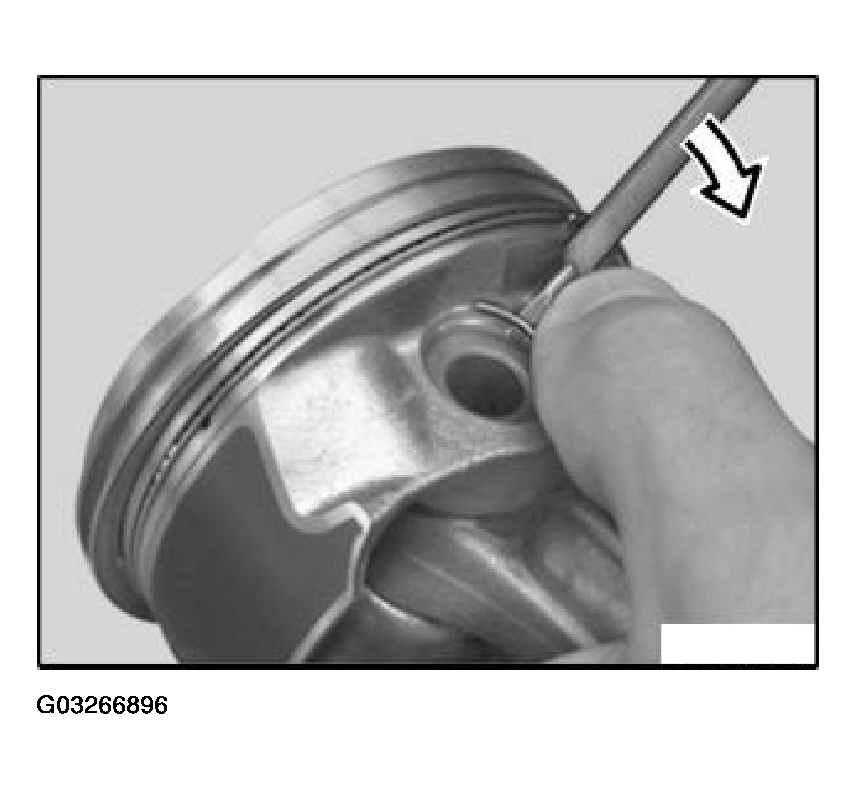

Fig 2: Installing Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Insert special tools 11 8 151 and 11 8 152 in conrod.

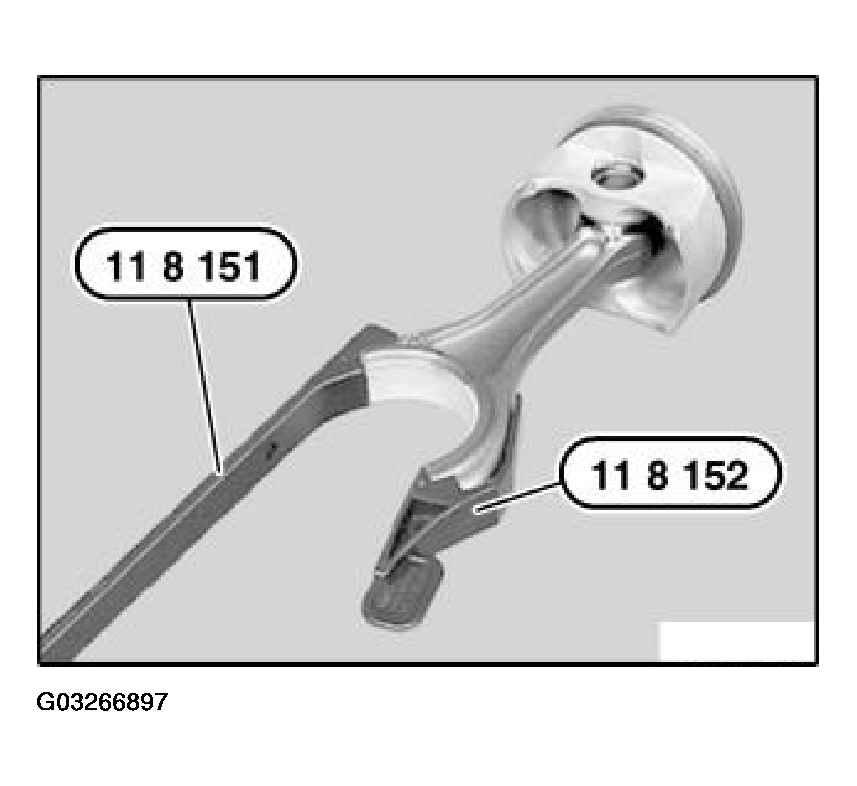

Fig 3: Inserting Special Tools 11 8 151 And 11 8 152 In Conrod

Courtesy of BMW OF NORTH AMERICA, INC.
