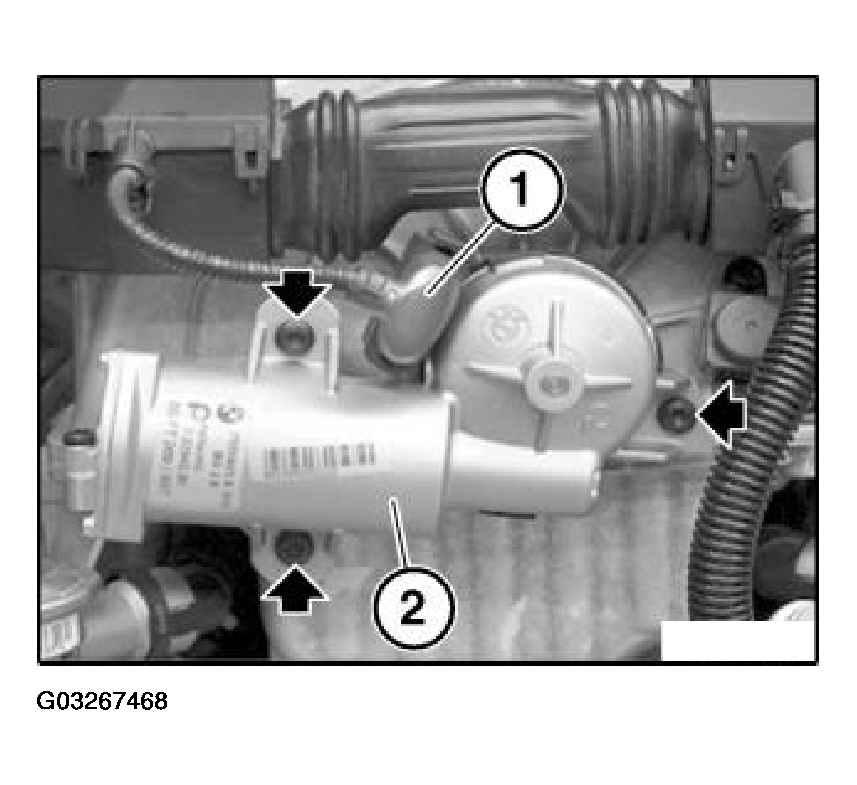

11 61 095 Removing and installing/replacing DISA adjustment unit
WARNING: This page is about a different variant/trim than selected.
DISA ADJUSTMENT UNIT REMOVING AND INSTALLING PROCEDURE
| Work step |
|---|
| Switch off ignition. |
| Remove design cover. |
| Remove engine cover. |
| Remove cover for ignition coils on left and right. |
| Remove bulkhead, equipment compartment, center. |
| Unlock plug on throttle and disconnect. |
| Unlock plug on knock sensor on left and right and disconnect. |
| Unlock plug on oil pressure switch and disconnect. |
| Unlock plug on thermostat and disconnect. |
| Unlock plug on water temperature sensor and disconnect. |
| Unlock plug on exhaust solenoid valve on left and right and disconnect. |
| Unlock plug on inlet solenoid valve on left and right and disconnect. |
| Unlock plug on tank venting valve and disconnect. |
| Unlock plug on alternator and disconnect. |
| Unlock plug on injection pipe on left and right and disconnect. |
| Unlock plug on Valvetronic servomotor on left and right and disconnect. |
| Unlock plug on exhaust camshaft sensor on left and right and disconnect. |
| Unlock plug on inlet camshaft sensor on left and right and disconnect. |
| Unlock plug on eccentric shaft sensor on left and right and disconnect. |
| Unlock plug on differential pressure sensor and disconnect. |
| Remove engine wiring harness from guides. |
| Release engine wiring harness screw connection to intake air manifold on left and right. |
