11 14 085 Removing and installing top right timing case cover (N62/N62TU)

(Cylinder Bank 1 To 4)

Necessary preliminary tasks:

• Remove right cylinder head  cover
• Remove vacuum pump
• Remove both solenoid valves on right side

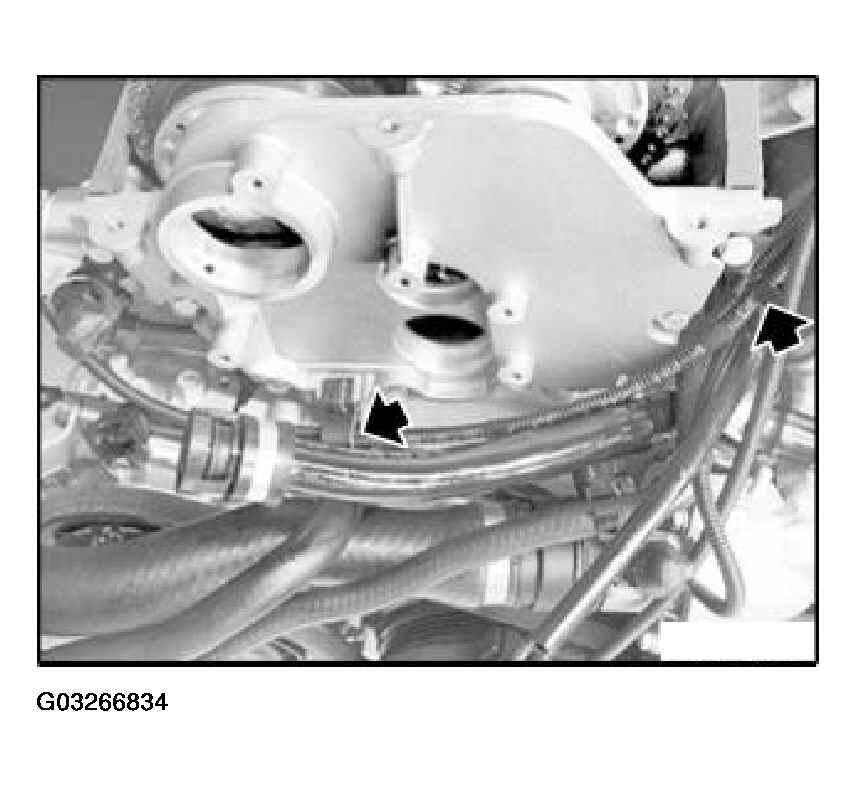

Remove cable from holder.

Fig 1: Removing Cable From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

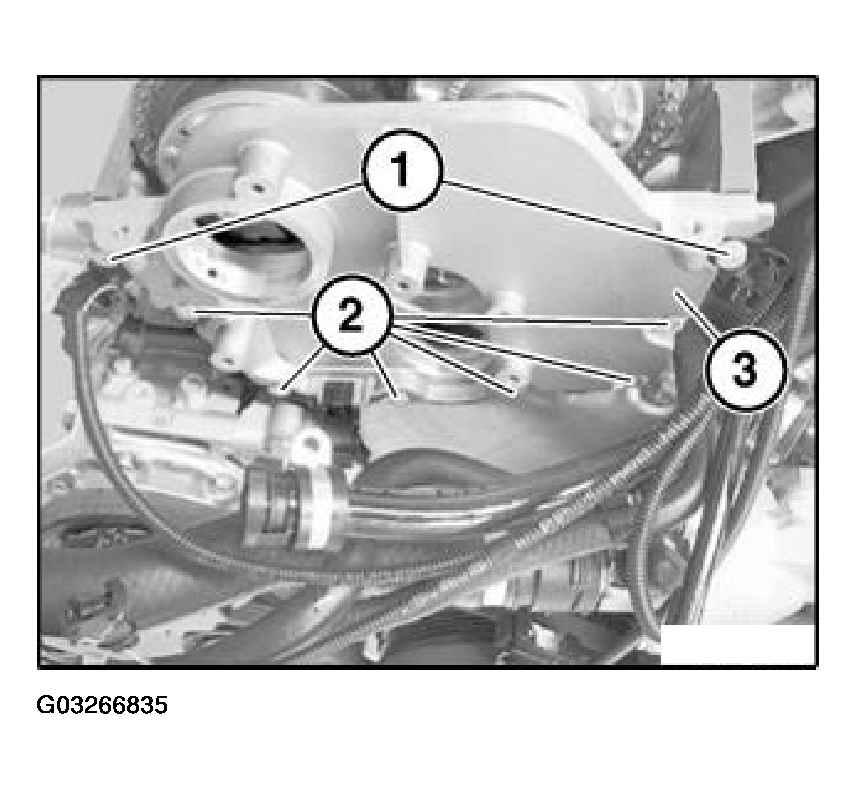

Release screws (1 and 2).

Remove timing case cover (3).

Fig 2: Removing Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

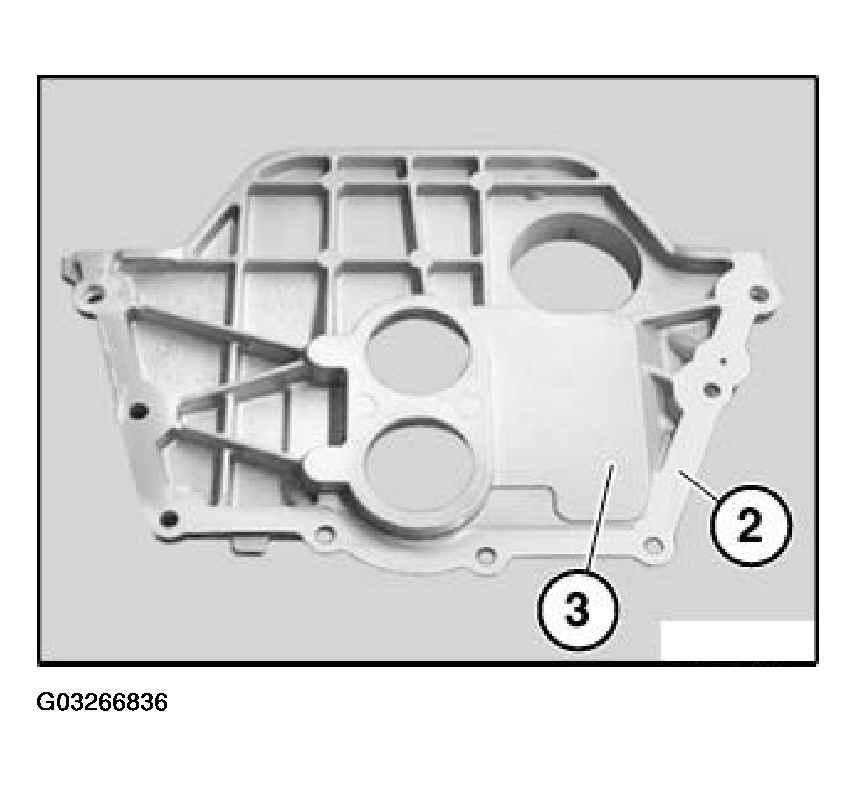

Free sealing face (2) on timing case cover (3) of seal debris and clean.

Fig 3: Installing Free Sealing Face On Timing Case Cover Of Seal Debris

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

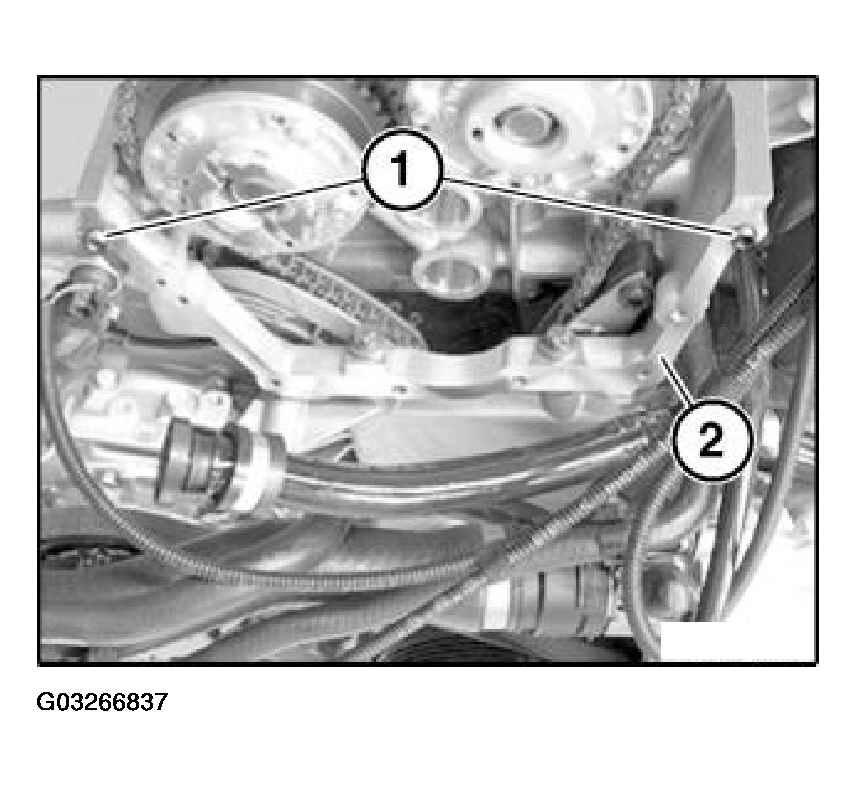

Check adapter sleeves (1) for damage and correct installation position; replace if necessary.

Free sealing face (2) of seal debris and clean.

Fig 4: Checking Adapter Sleeves For Damage

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

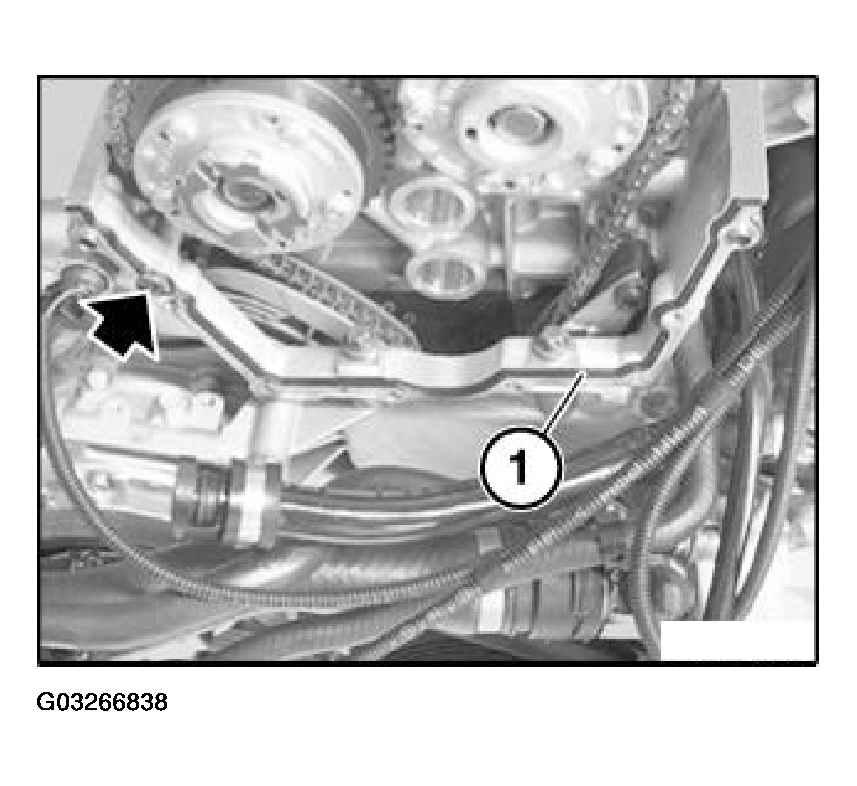

Replace gasket (1) and check for correct installation position.

Fig 5: Replacing Gasket

Courtesy of BMW OF NORTH AMERICA, INC.
