11 22 000 Removing and installing/replacing flywheel (N62)
WARNING: This page is about a different variant/trim than selected.
Special tools required:
- 11 4 180
- 11 9 260
- 11 9 262
- 11 9 263
- 11 9 264
Necessary preliminary tasks:
- Remove transmission. See REMOVAL & INSTALLATION - X5 (A5S 360R/390R) , REMOVAL & INSTALLATION - X5 (6HP26Z) or REMOVAL & INSTALLATION - X5 (S5D 280Z) .
- Remove clutch.
Automatic transmissions only:

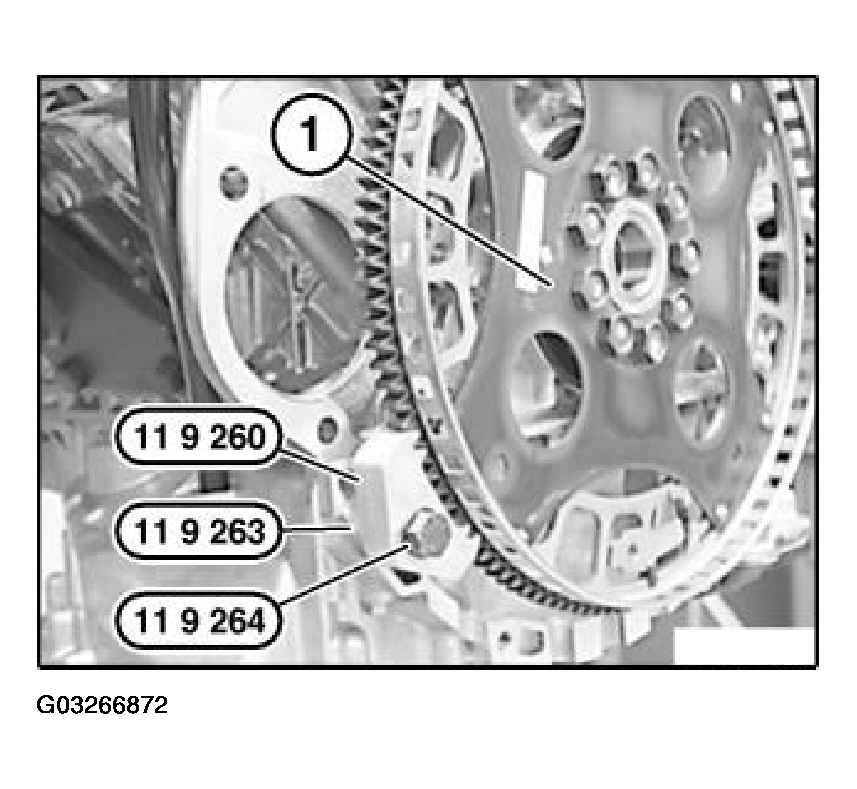

Block flywheel (1) with special tools 11 9 260 / 11 9 263 / 11 9 264.
Unfasten flywheel screws.
Remove flywheel (1).
Installation:
Clean threads on flywheel screws in crankshaft.
Flywheel (1) is secured with an alignment pin.
Fit flywheel (1).
Fit new flywheel screws.
Tightening torque, see ENGINE - TIGHTENING TORQUES .
Manual transmissions only:

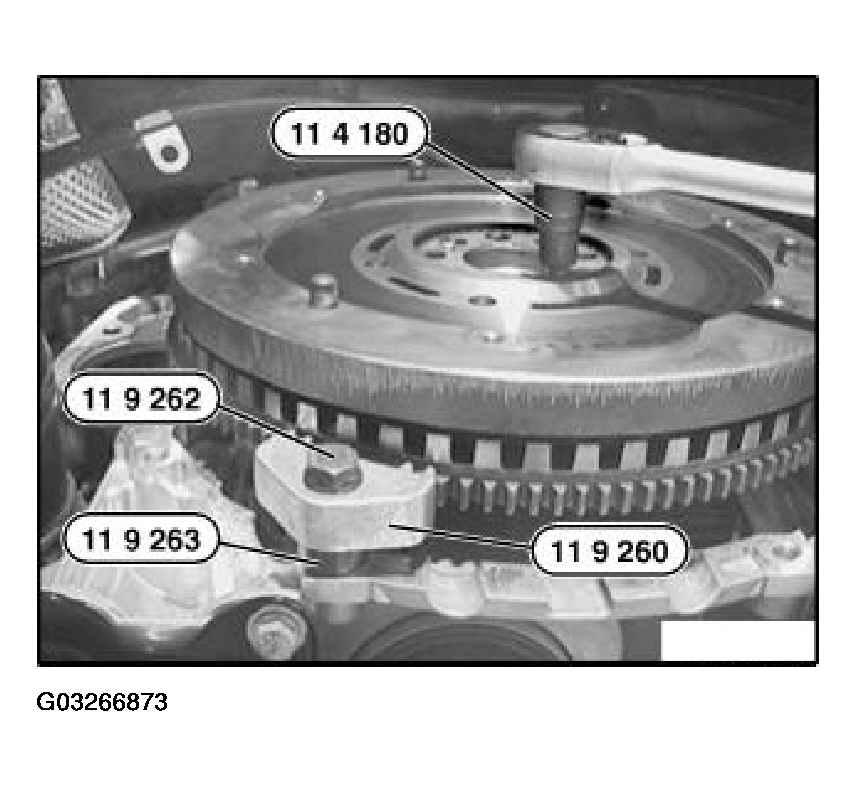

Block flywheel (dual-mass) with special tools 11 9 260 / 11 9 262 / 11 9 263.
Release flywheel screws with special tool 11 4 180.
Installation:
Flywheel (1) is secured with an alignment pin.
IMPORTANT:
Do not use screw locking varnish.
Tightening torque, see ENGINE - TIGHTENING TORQUES .
