11 62 065 Removing and installing/replacing right exhaust manifold (M62/N62)

(Cylinder bank 1 to 4)

Necessary preliminary tasks:

• Remove exhaust system.
• Remove reinforcement plate.
• Remove propeller shaft.

Release screw connection at exhaust manifold.

Feed out exhaust manifold towards bottom.

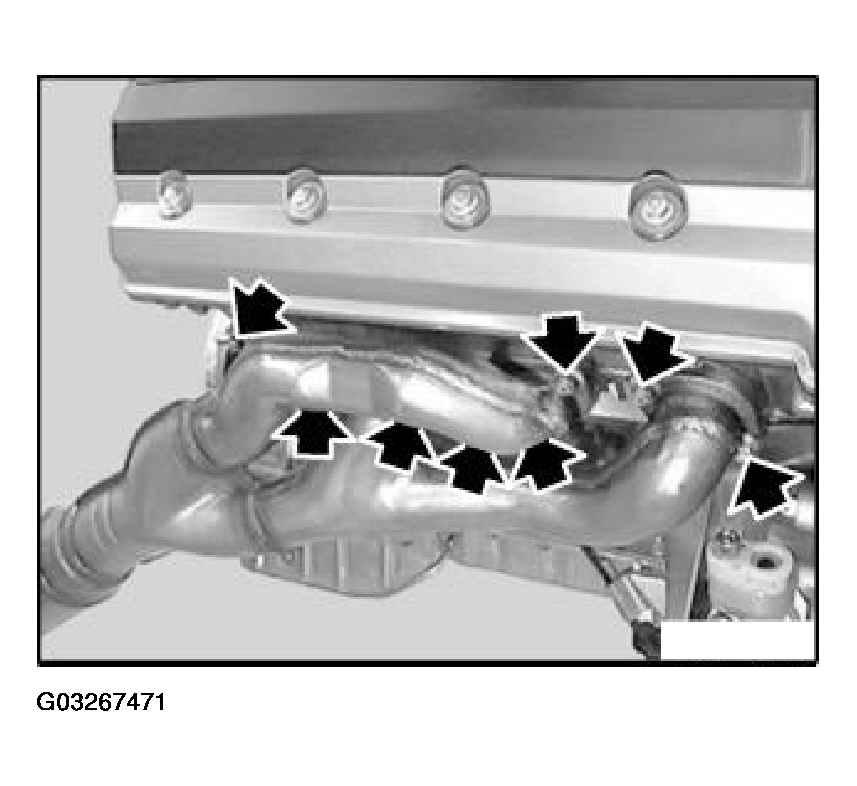

Fig 1: Removing Exhaust Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

1. Replace seals.
2. Seal beads faces the exhaust manifold.
3. Coat thread with copper paste (CRC).
4. Replace nuts.

Tightening torque, see ENGINE - TIGHTENING TORQUES .

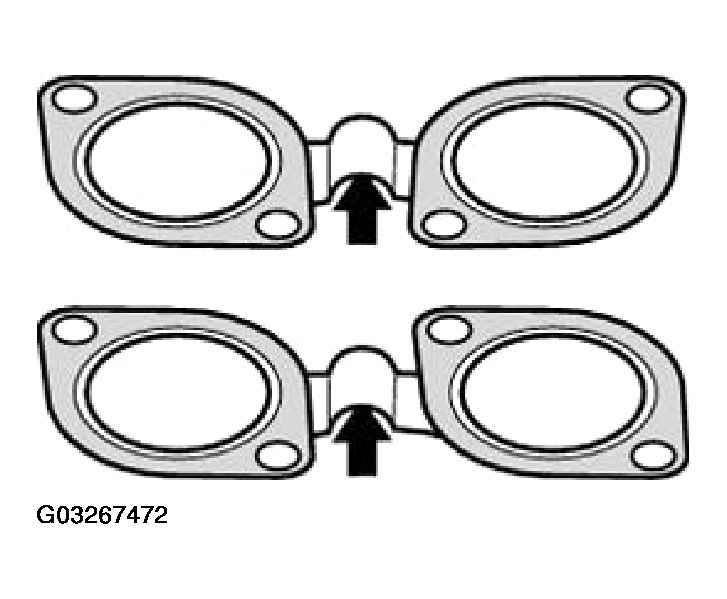

Fig 2: Identifying Seal Beads Facing Exhaust Manifold

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check exhaust system for leaks.
