Diagnosis and Information System (DIS)

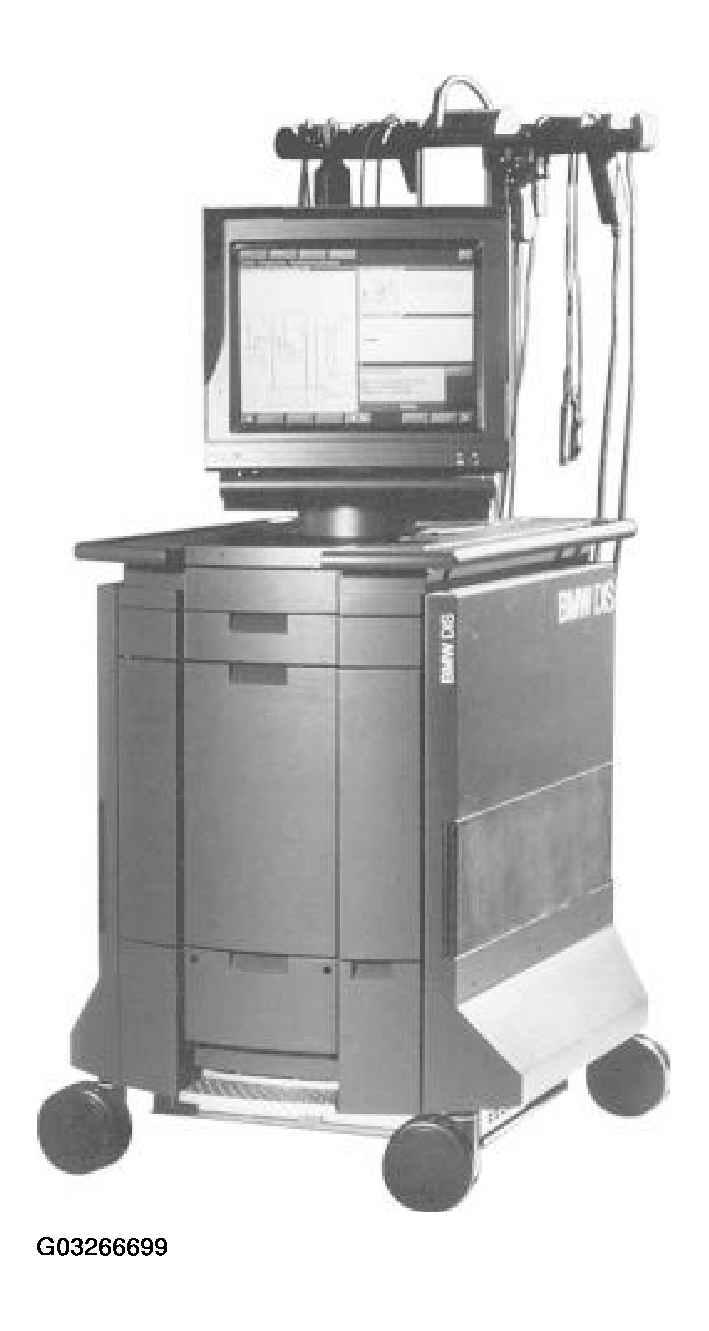

Fig 1: Identifying Diagnosis And Information System (DIS)

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• Remove engine acoustic cover.
• Remove right ignition coil cover (1). See Fig 2.
Fig 2: Removing Ignition Coil Covers
Courtesy of BMW OF NORTH AMERICA, INC.
• Connect DIS Tester.

Test:

• Call up Diagnosis
• Select car > right arrow key
• Function selection
  • Complete vehicle
  • Drive
  • Engine management
    • Valve gear
    • Valvetronic variable valve gear
    • Mechanical components / function
• Test schedule > right arrow key
  • Compression test > right arrow key
• Follow DIS Tester instructions.
