11 78 543 Replacing right oxygen monitor sensor (N62)
WARNING: This page is about a different variant/trim than selected.
Special tools required:
- 11 7 030
Necessary preliminary tasks:
- Check function of DME.
- Switch off ignition.
WARNING:
Scalding hazard!
Only perform this task on an engine that has cooled down.
Only perform this task on an engine that has cooled down.

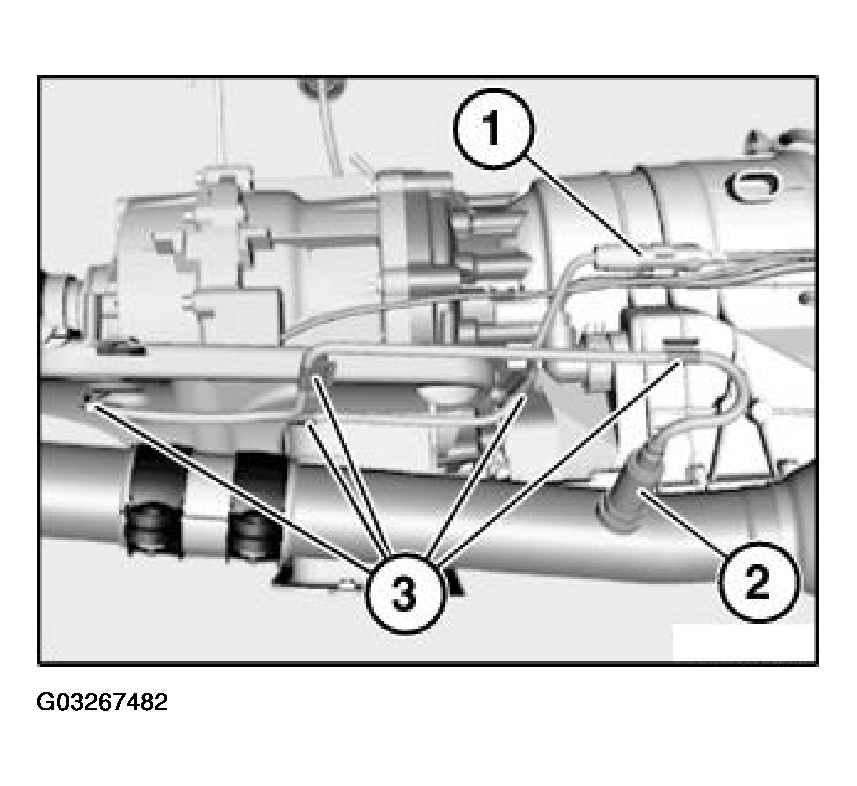

Unlock and detach plug connection (1) for monitor sensor (2).
Unclip monitor sensor cable from fixtures (3). Release monitor sensor (2) with special tool 11 7 030.
