11 78 540 Replacing left oxygen monitor sensor (N62)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks:

WARNING: Scalding hazard!
Only perform this task on an engine that has cooled down.

Unclip monitor sensor cable from fixture (1).

Unlock and detach plug connection (2) for monitor sensor.

Fig 1: Unclipping Monitor Sensor Cable From Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Release monitor sensor (1) with special tool 11 7 030.

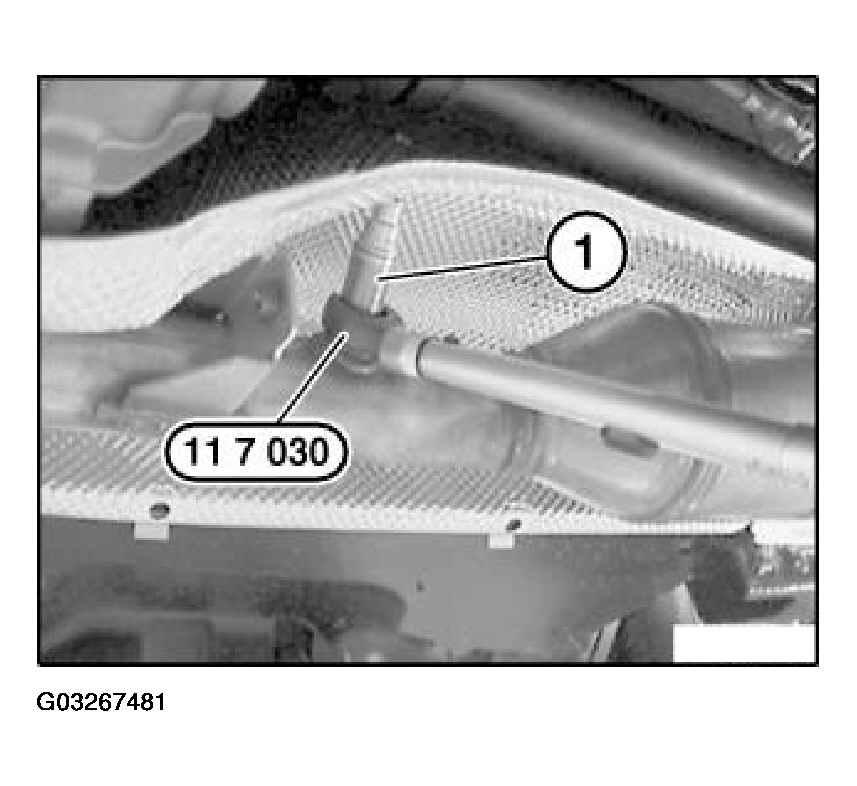

Fig 2: Releasing Monitor Sensor With Special Tool 11 7 030

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation:

Threads of new oxygen sensors are already coated with Never Seize compound.
If an oxygen sensor is reused, only apply a thin and uniform coat of Never Seize compound to thread.
Oxygen sensor section projecting into exhaust system branch must not be cleaned or come into contact with lubricant.

Installation:

Check function of DME.

Pay attention to cable routing of monitor sensor.
