11 12 729 Checking cylinder head for leaks (N62)

WARNING: This page is about a different variant/trim than selected.

Special Tools Required:

(Cylinder Head Dismantled)

Have special tool kit 11 9 430 ready.

NOTE: Special tool kit 11 9 430 can be used for cylinder bank 1 to 4 and cylinder bank 5 to 8.

Place special tool 11 9 431 on cylinder head sealing surface, insert screws (special tool 11 9 433) and tighten down.

Seal coolant opening with special tool 11 9 432 and tighten down.

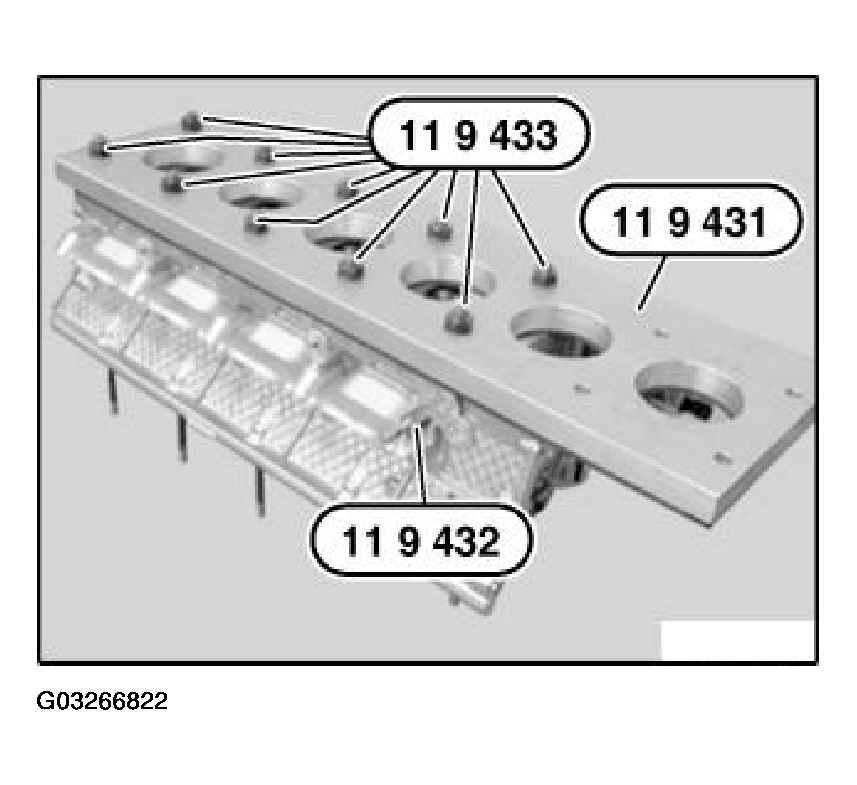

Fig 1: Placing Special Tool 11 9 431 On Cylinder Head Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air hose (1) to pressure gauge.

Immerse cylinder head in a water bath. Inspection pressure 4.5 bar.

Check cylinder head for escaping air (cracks).

NOTE: If necessary, soften the bath water with a cleaning agent.

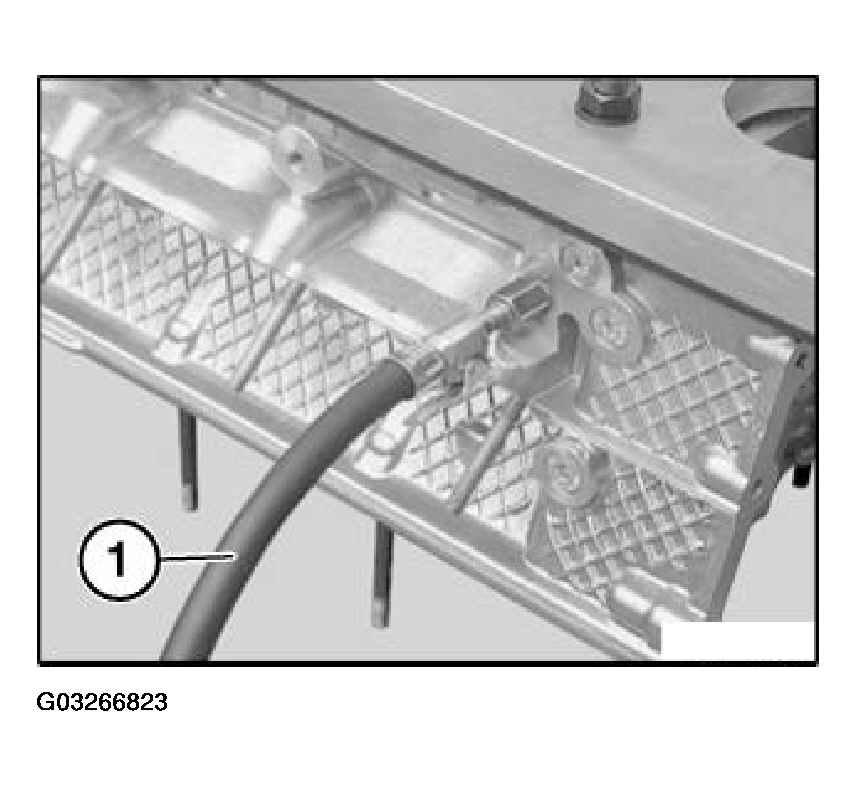

Fig 2: Connecting Compressed Air Hose To Pressure Gauge

Courtesy of BMW OF NORTH AMERICA, INC.
