11 12 106 Removing and installing right cylinder head (N62 to 9/03): Removal

WARNING: This page is about a different variant/trim than selected.

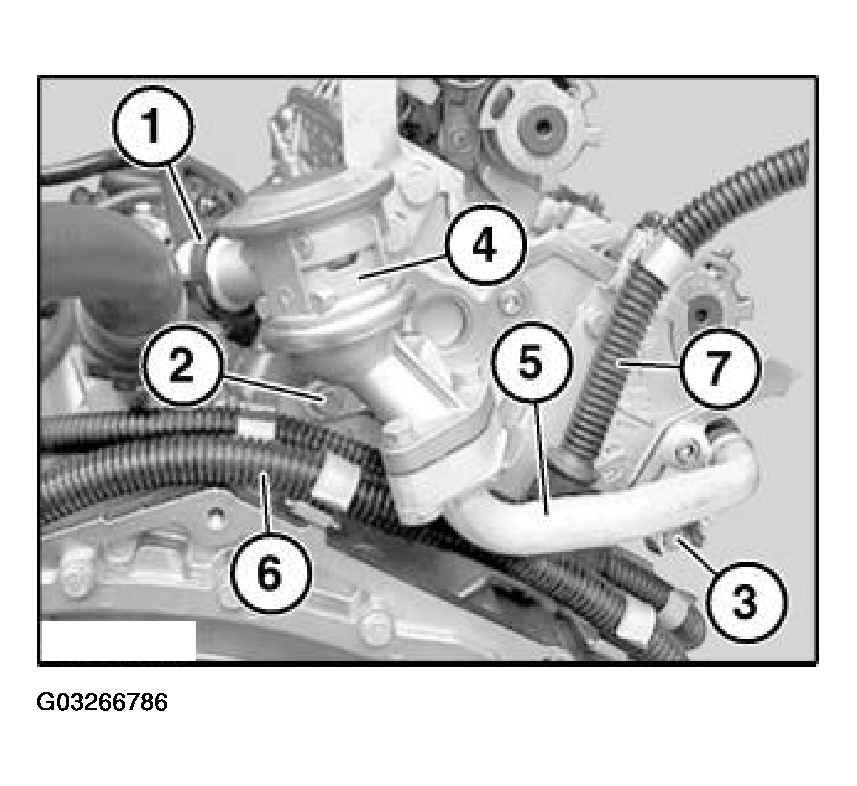

Fig 1: Removing Check Valve, Tube And Spacer Bushing

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of cylinder head is described separately from installation.

Remove inlet and exhaust adjustment unit on right side.

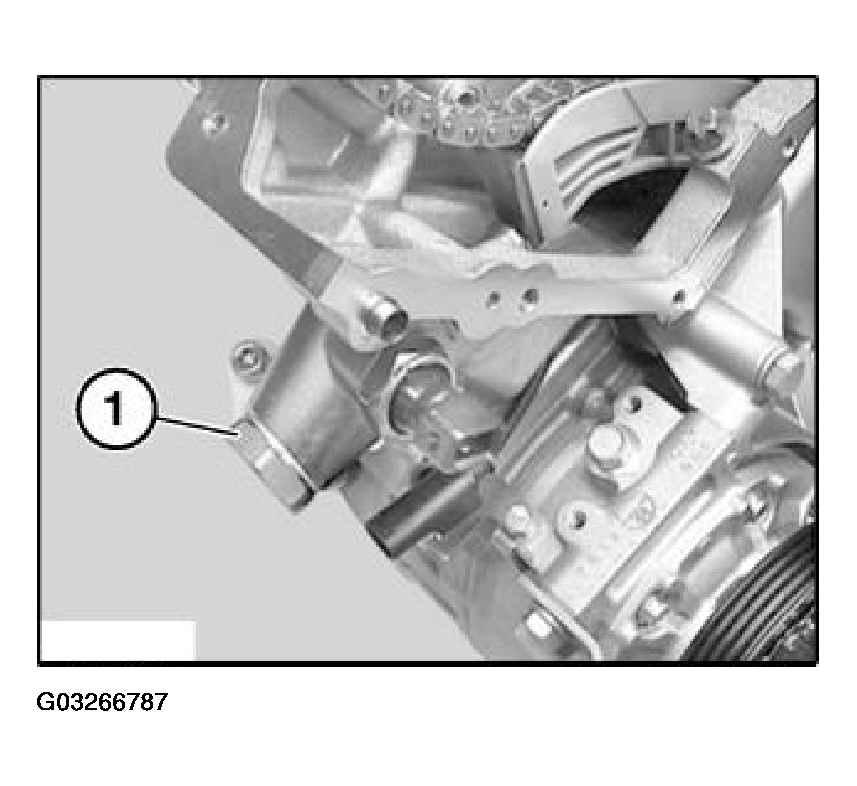

Slacken off chain tensioning piston (1) by approx. one turn.

Fig 2: Slackening Off Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

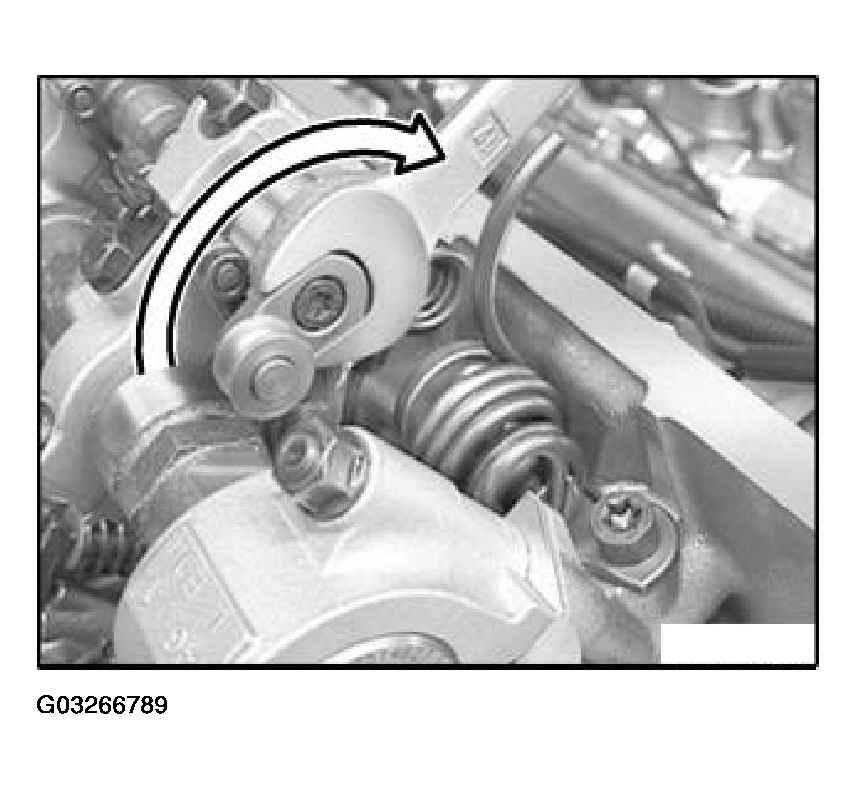

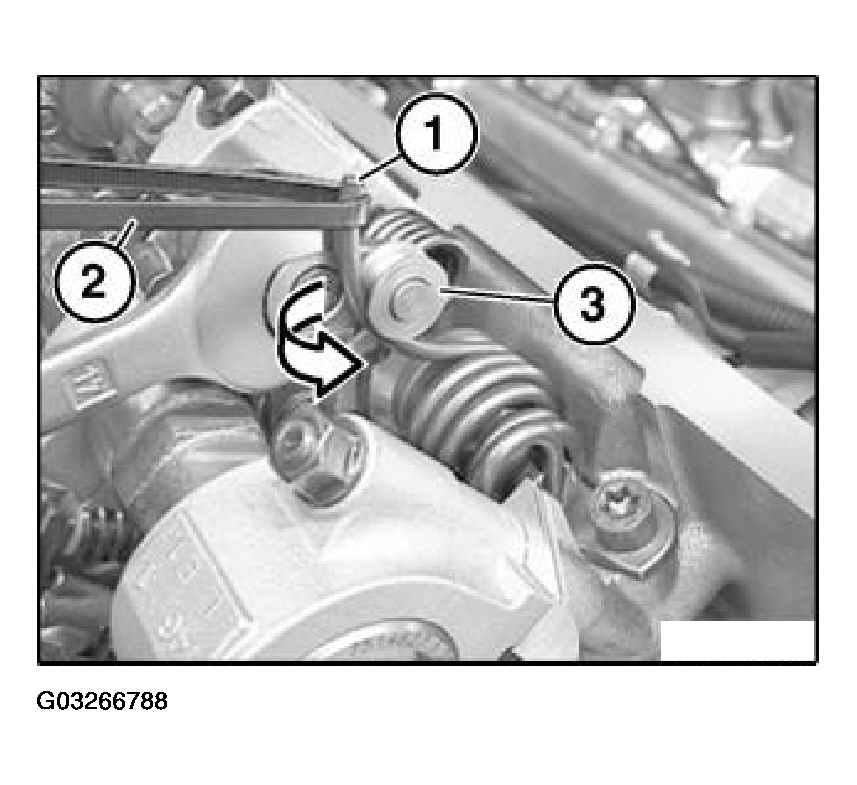

Rotate eccentric shaft at dihedral head as illustrated in order to reduce tension on torsion spring (1).

Pretension torsion spring (1) with a cable strap (2), feed out from roller (3) and carefully relieve tension.

Fig 3: Removing Pretension Torsion Spring With Cable Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Fig 4: Rotating Eccentric Shaft At Dihedral Head

Courtesy of BMW OF NORTH AMERICA, INC.

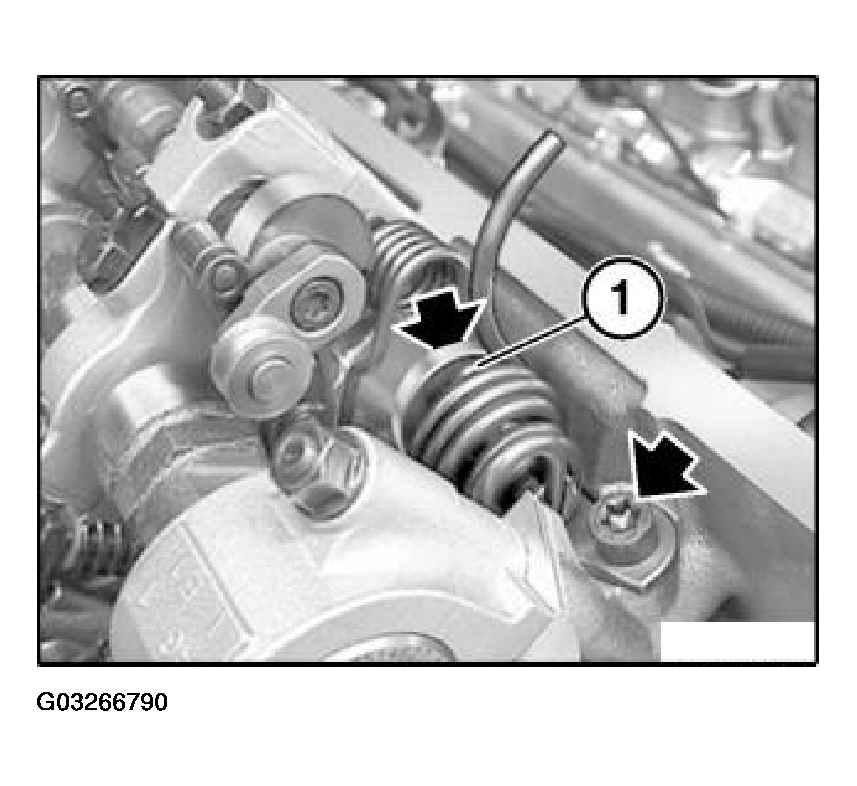

NOTE: Spring mount (1) has a locating pin opposite screw.

Release screw.

Feed spring mount (1) upwards out of locating pin.

Fig 5: Feeding Spring Mount Upwards Out Of Locating Pin

Courtesy of BMW OF NORTH AMERICA, INC.

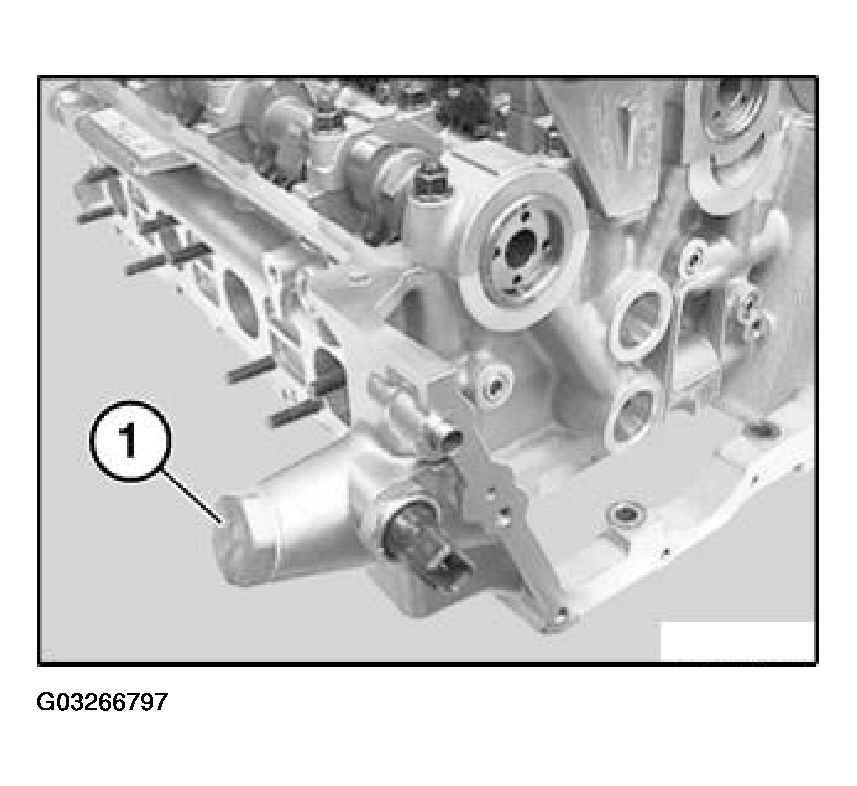

NOTE: Illustration with engine removed.

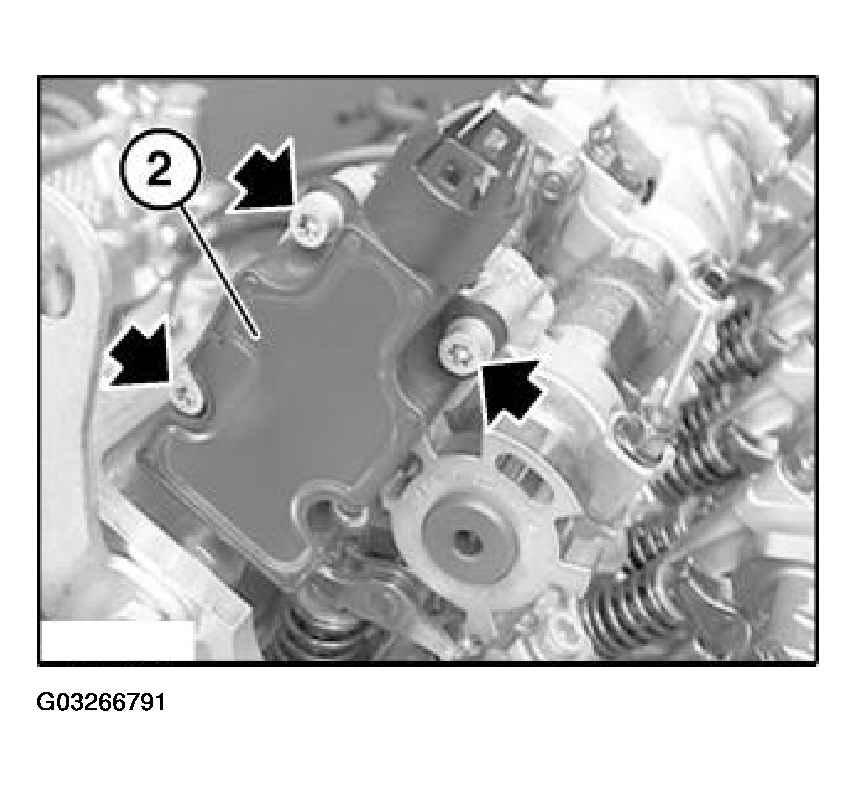

Remove eccentric shaft sensor (2).

Fig 6: Removing Eccentric Shaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

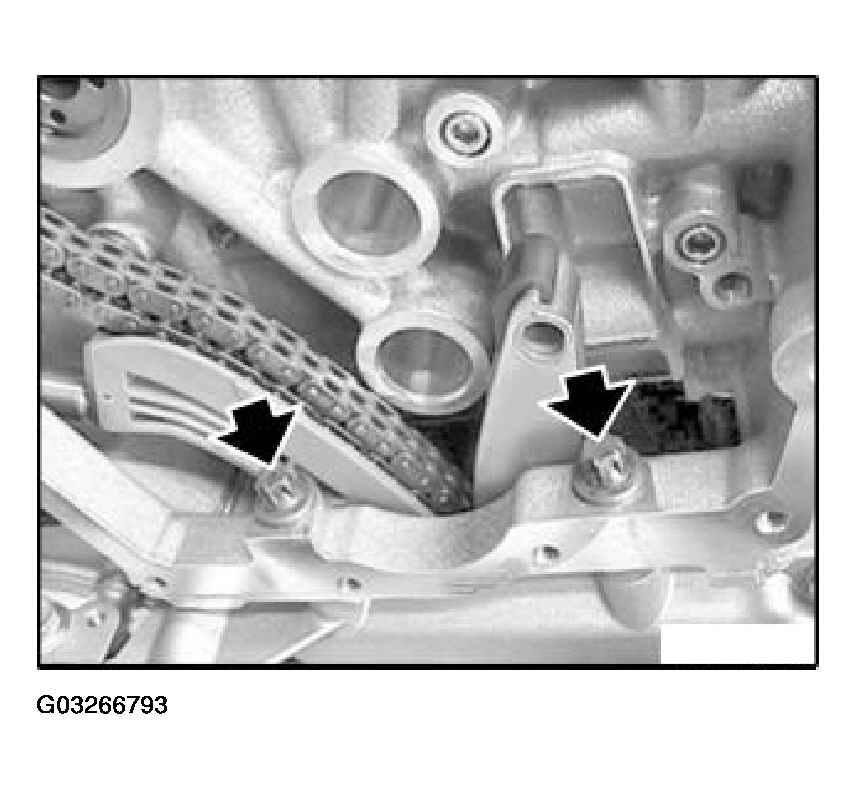

Detach guide rail from cylinder head.

Fig 7: Detaching Guide Rail From Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

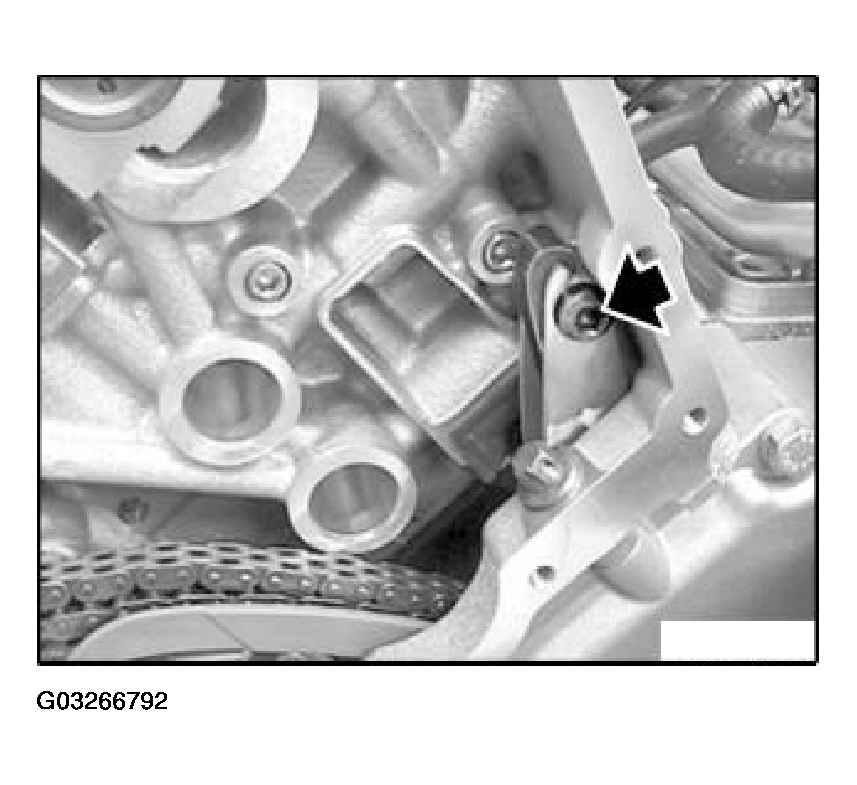

Release screws between cylinder head and timing case cover.

Fig 8: Releasing Screws Between Cylinder Head And Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: At narrow points, use a socket with 3/8" drive and a short extension.

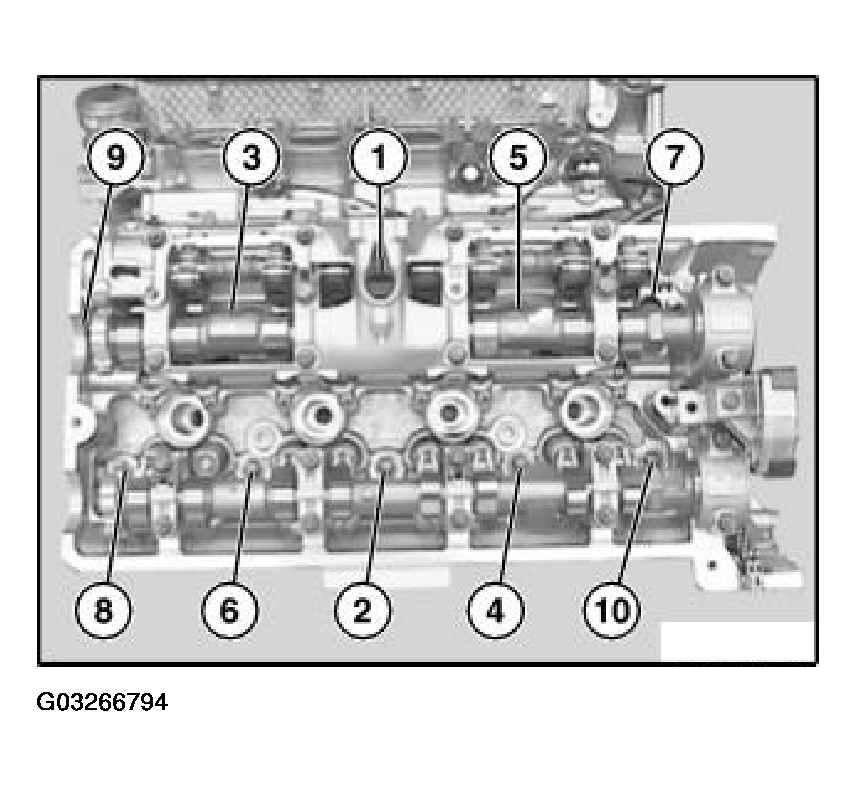

Slacken off cylinder head bolts by one turn in sequence 10... 1.

Fig 9: Slackening Off Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

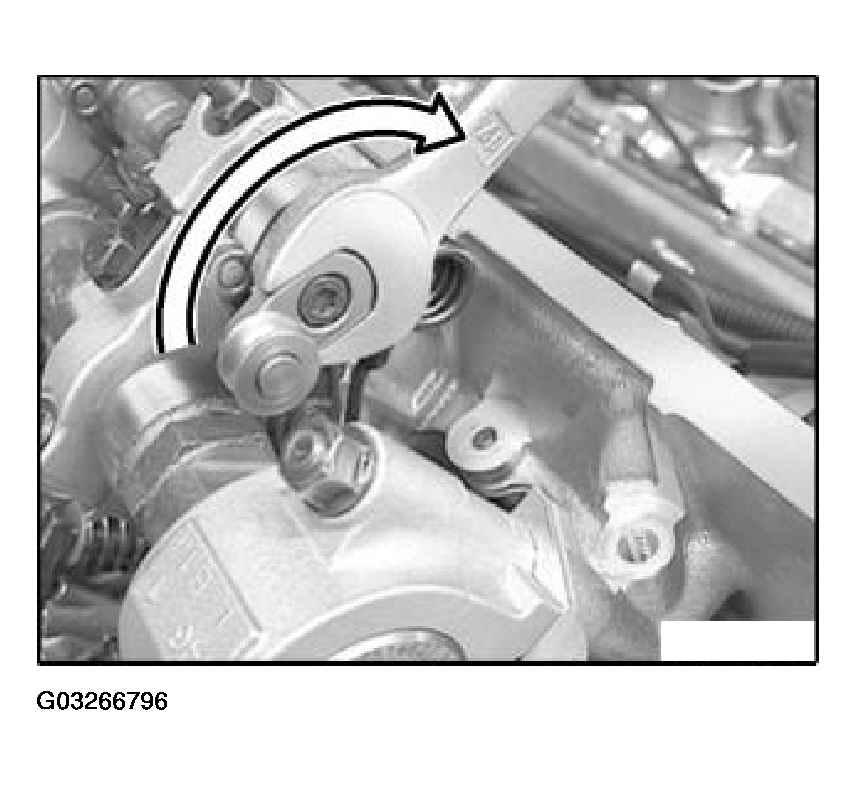

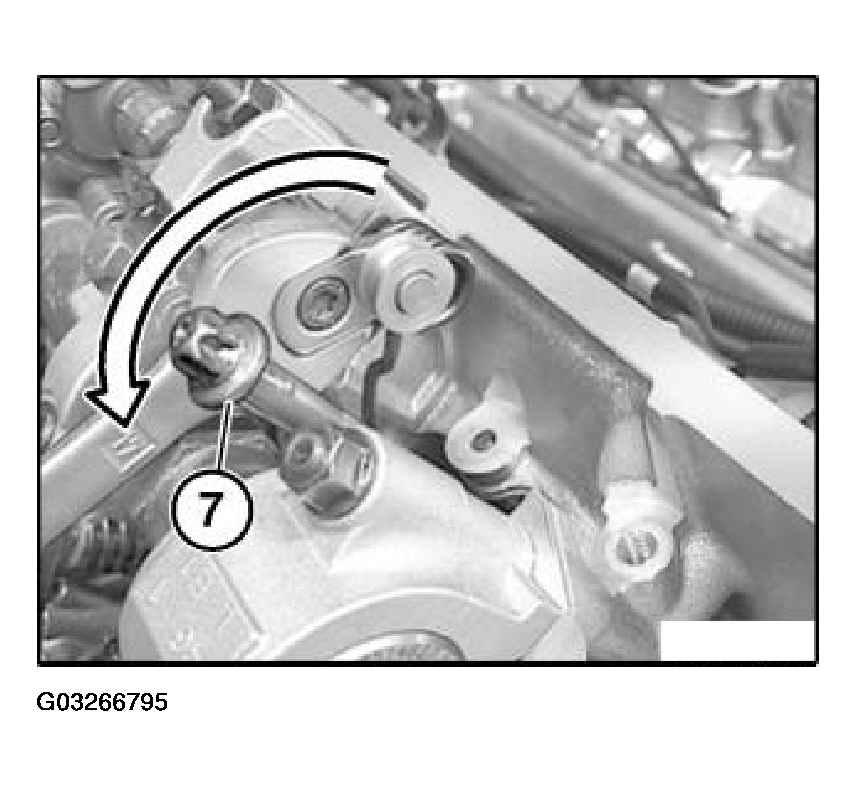

Rotate eccentric shaft at dihedral head as shown in illustration and hold in this position.

Remove cylinder head bolt (7).

Fig 10: Removing Cylinder Head Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Rotate eccentric shaft at dihedral head as shown in illustration back to minimum stroke position.

Replacement:

Reinstall screw plug of inlet VANOS pressure oil duct.

Fig 11: Rotating Eccentric Shaft At Dihedral Head

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remaining cylinder head bolts.

Lift off cylinder head.

Lift off cylinder head gasket.

Remove chain tensioning piston (1).

Fig 12: Removing Chain Tensioning Piston

Courtesy of BMW OF NORTH AMERICA, INC.

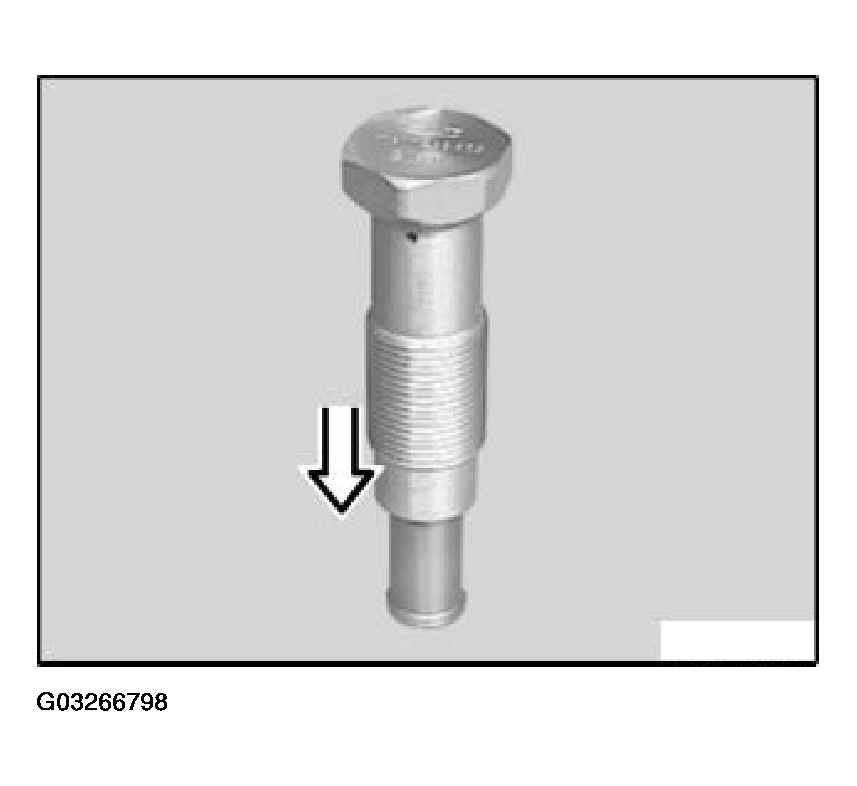

Place chain tensioning piston (1) on a level surface and compress slowly and carefully.

Repeat this procedure twice.

Fig 13: Placing Chain Tensioning Piston On Level Surface

Courtesy of BMW OF NORTH AMERICA, INC.
