11 24 571 Replacing all conrod bearings (N62)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

(piston removed)

CAUTION: Note grinding stages on crankshaft.

The letter (1) denotes the crankshaft construction stage.

The numbers (2) denote the bearing shell classification for the relevant bearing position from 1 to 5 (main bearing cap).

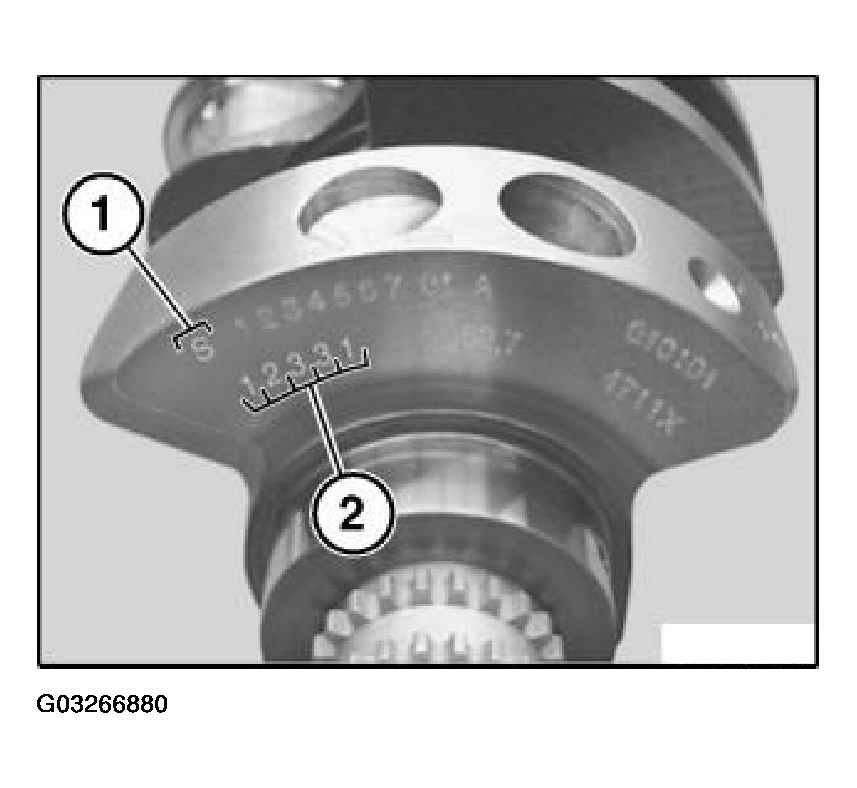

Fig 1: Identifying Letter Denotes Crankshaft Construction Stage And Numbers Denote Bearing Shell Classification For The Relevant Bearing Position

Courtesy of BMW OF NORTH AMERICA, INC.

Install new conrod bearing shells.

Insert one red and one blue bearing shell for each conrod.

Install piston.

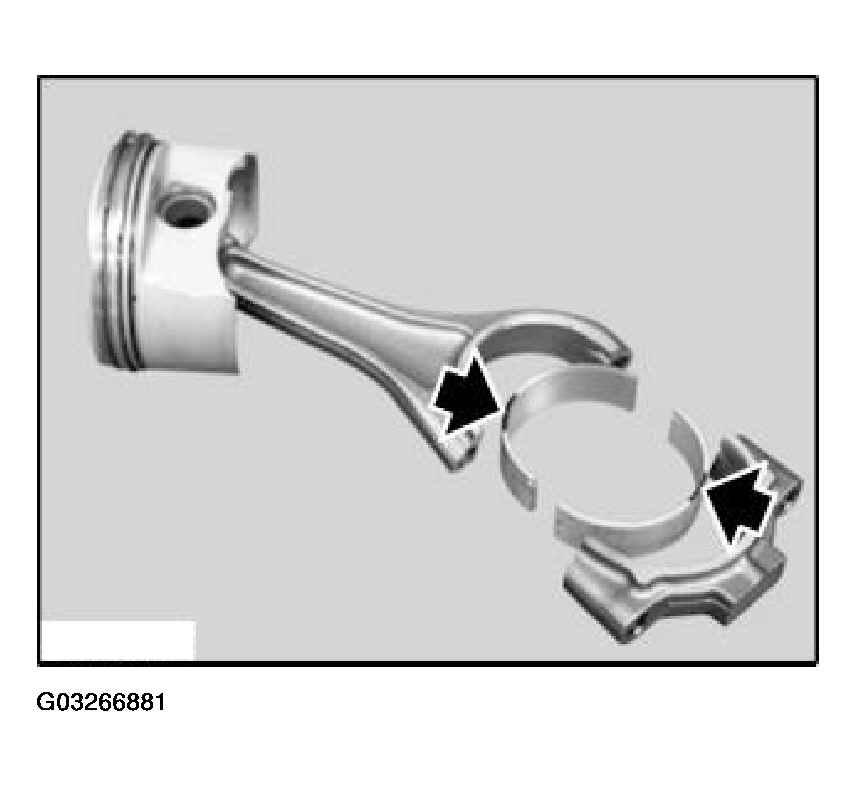

Fig 2: Installing New Conrod Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Check connecting-rod bearing clearance:

Piston in BDC position.

Fit special tool 00 2 590 (Plastigage Type PG 1) to the oil-free crankshaft.

Position bearing caps so that pair numbers match up.

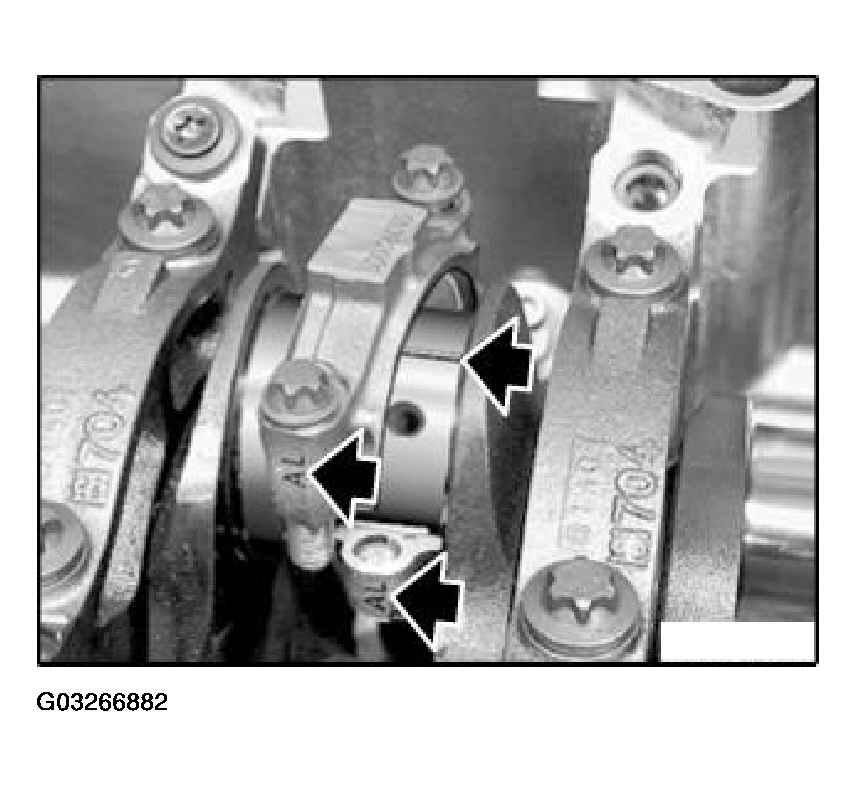

Fig 3: Positioning Bearing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not distort conrods or crankshaft.

Use the old connecting rod bolts to check connecting-rod clearance.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

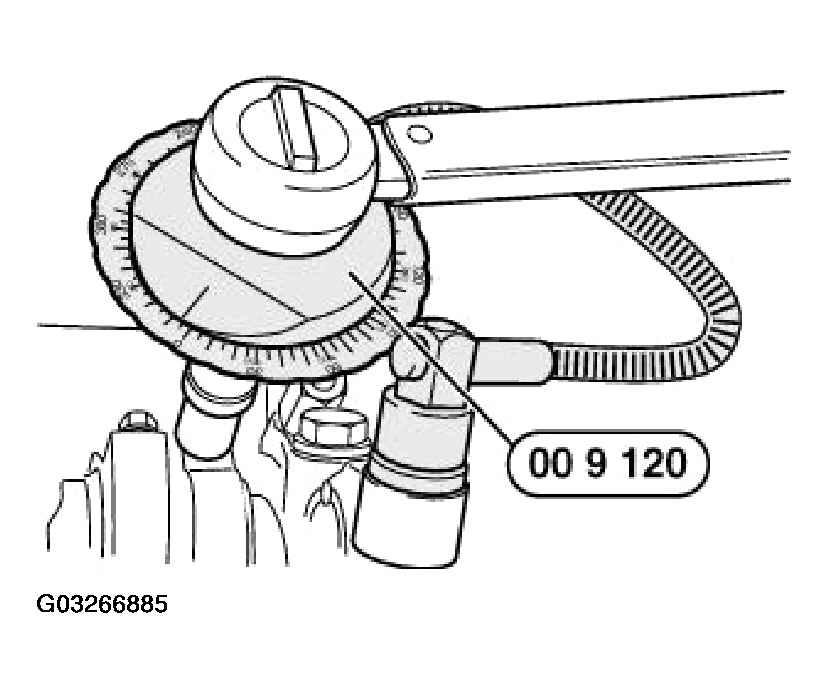

Fig 4: Tightening Conrod Bolts With Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.

Remove bearing cap and read off bearing play at width of flattened plastic thread with assistance of measurement scale.

Conrod bearing clearance.

Fig 5: Reading Off Bearing Play At Width Of Flattened Plastic Thread With Assistance Of Measurement Scale

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down conrod bolts with special tool 00 9 120 or special tool 11 2 110.

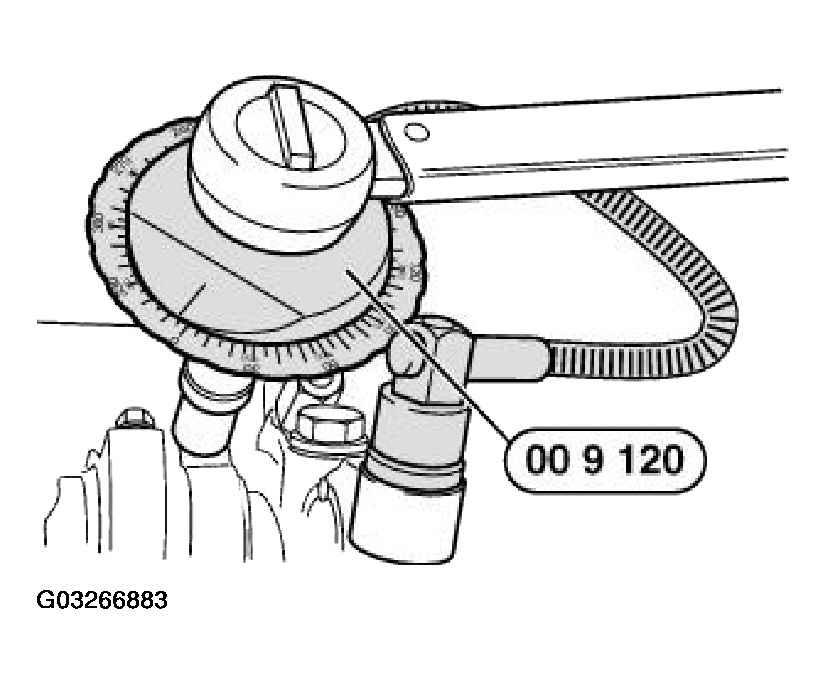

Fig 6: Tightening Conrod Bolts With Special Tool 00 9 120

Courtesy of BMW OF NORTH AMERICA, INC.
