17 0 130 Set of adapters

WARNING: This page is about a different variant/trim than selected.

In conjunction with: 17 0 101, 17 0 102

Note: For connecting adapters from 17 0 000 to pump 17 0 101 and hose 17 0 102.

SI number: 01 07 02 (884)

Order number: 17 0 130 Set of adapters

Consisting of:

1 = 17 0 131 Adapter

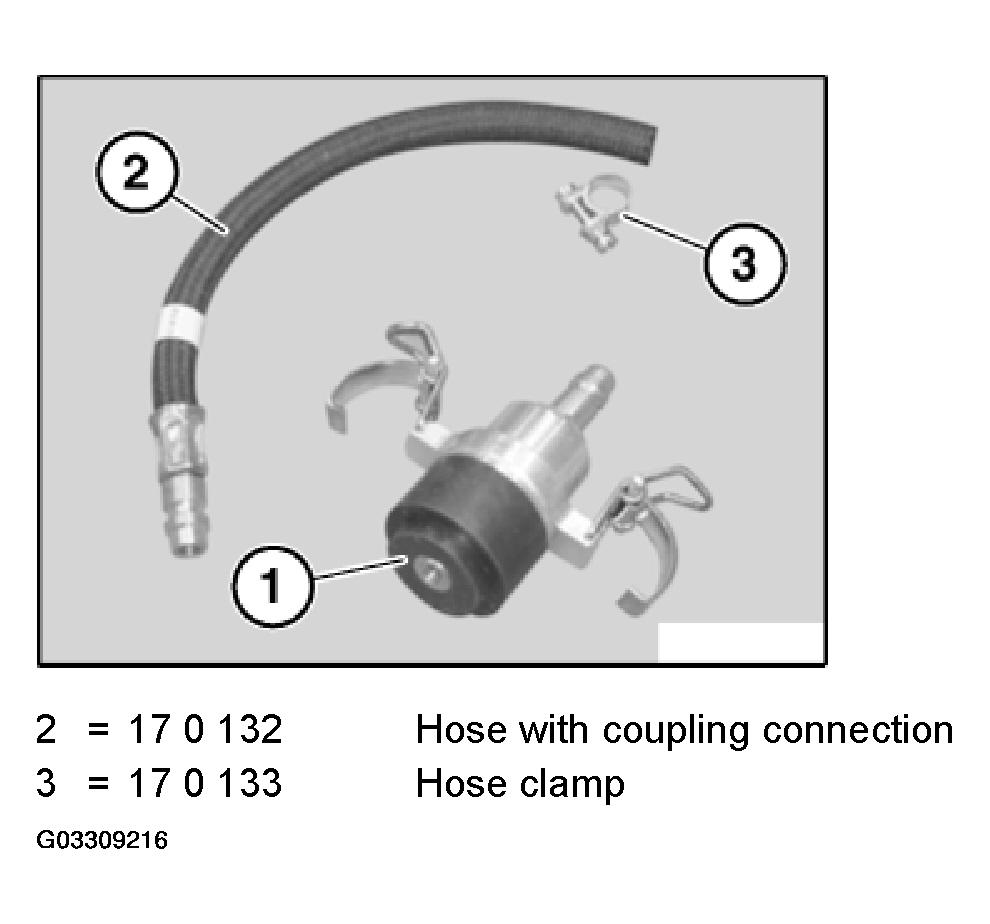

Fig 1: Identifying Set Of Adapters

Courtesy of BMW OF NORTH AMERICA, INC.

Note: For connecting pump 17 0 101 and hose 17 0 102 to adapter from 17 0 000

2 = 17 0 132 Hose with coupling connection

Note: For connecting pump 17 0 101 to adapter 17 0 007

3 = 17 0 133 Hose clamp

Note: For hose 17 0 132
