17 0 000 Tester

WARNING: This page is about a different variant/trim than selected.

Note: For checking cooling system for leaks and function of pressure relief valve in radiator cap. Replaced by 17 0 100

Storage location: A43, C17

Order number: 17 0 000 Tester

Consisting of:

1 = 17 0 001 Adapter

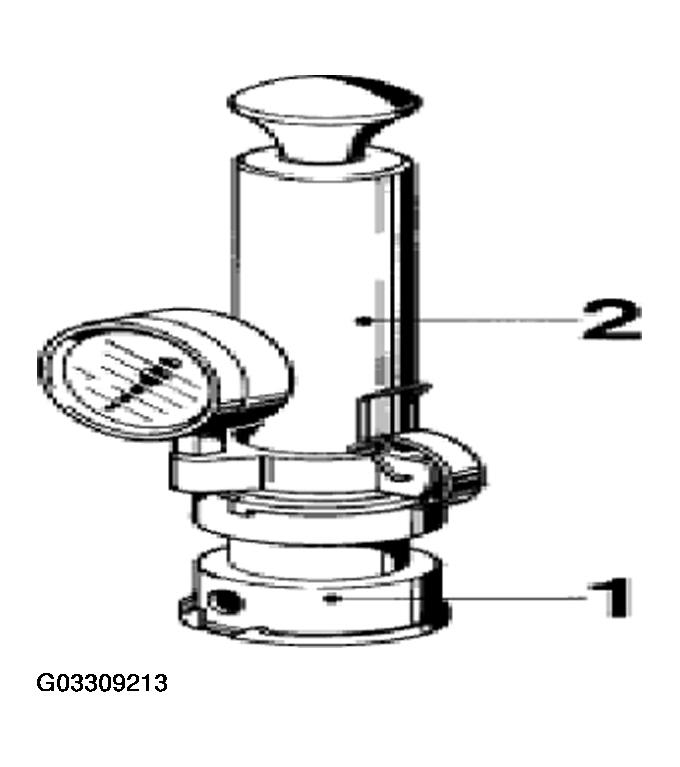

Fig 1: Identifying Tester

Courtesy of BMW OF NORTH AMERICA, INC.

Note: For checking pressure relief valve in radiator cap/model series: all, except E28

2 = 17 0 002 Tester without adapter

Note: Pressure range 0...2.5 bar/model series: all, except E28

3 = 17 0 003 Screw neck

Note: For screw-on radiator caps (normal thread)/ model series: E28, E30, E31, E32 Engine: all, except M51

4 = 17 0 004 Adapter

Note: For screw-on radiator caps (normal thread)/model series: E28, E30, E32/Engine: M51

5 = 17 0 005 Screw neck

Note: For screw-on radiator caps (buttress thread)/model series: E31, E32, E34, E36, E38, E39

7 = 17 0 007 Adapter

Note: For checking expansion tank cap/model series: E31, E32, E34, E36, E38, E39

8 = 17 0 008 Pressure hose

9 = 17 0 009 Adapter for radiator expansion tank

Note: Model series: E36/Model: M3 US Engine W10
