Automatic Transmission: Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Oil cooler and lines must always be flushed before a replacement transmission is installed.
CAUTION: When joining up engine and transmission, ensure ease of movement of torque converter.
  1. To install, reverse removal procedure. If replacing transmission, fit shift lever, bracket for cable and retainers for oxygen sensor cable from old transmission to new transmission.
  2. Bore (1) in driving disk must be accessible from opening on engine oil pan. See Fig 1.
  3. Check that dowel sleeves are correctly seated. See Fig 2. Replace damaged dowel sleeves.
  4. Rotate torque converter until bore in torque converter is flush with bore in driving disk. Flange automatic transmission to engine. See Figure. Tighten transmission-to-engine screws to specification. See TORQUE SPECIFICATIONS .
  5. Tighten torque converter-to-flywheel screws to specification. See Figure. See TORQUE SPECIFICATIONS .
  6. Install transfer case to transmission. Pay attention to dowel pin (1). See Fig 3. Grease dowel pin. Apply a thin coat of WEICON ANTISIZE grease or equivalent to splines. Tighten transfer case screw connection on transmission to specification. See TORQUE SPECIFICATIONS .
  7. Replace sealing rings on hydraulic lines. Tighten screws to specification. See TORQUE SPECIFICATIONS .
  8. Grip clamping sleeve (1). See Fig 4. Slacken nut (2). Press selector lever (3) forwards into park position. Press cable (4) in direction of arrow and release again. Grip clamping sleeve (1) and tighten nut (2) to specification. See TORQUE SPECIFICATIONS .
  9. Install rear propeller shaft. See REMOVING AND INSTALLING COMPLETE PROPELLER SHAFT .
  10. Install front propeller shaft. See REMOVING AND INSTALLING FRONT PROPELLER SHAFT .
  11. To install reinforcement plate, torque screws (2) to specification. See Fig 5. See TORQUE SPECIFICATIONS .
  12. After completion of work, check transmission fluid level of transmission and transfer case. Top up if necessary.
Fig 1: Locating Bore In Drive Plate
G00367892Courtesy of BMW OF NORTH AMERICA, INC.
Fig 2: Checking Dowel Sleeves
G00367893Courtesy of BMW OF NORTH AMERICA, INC.

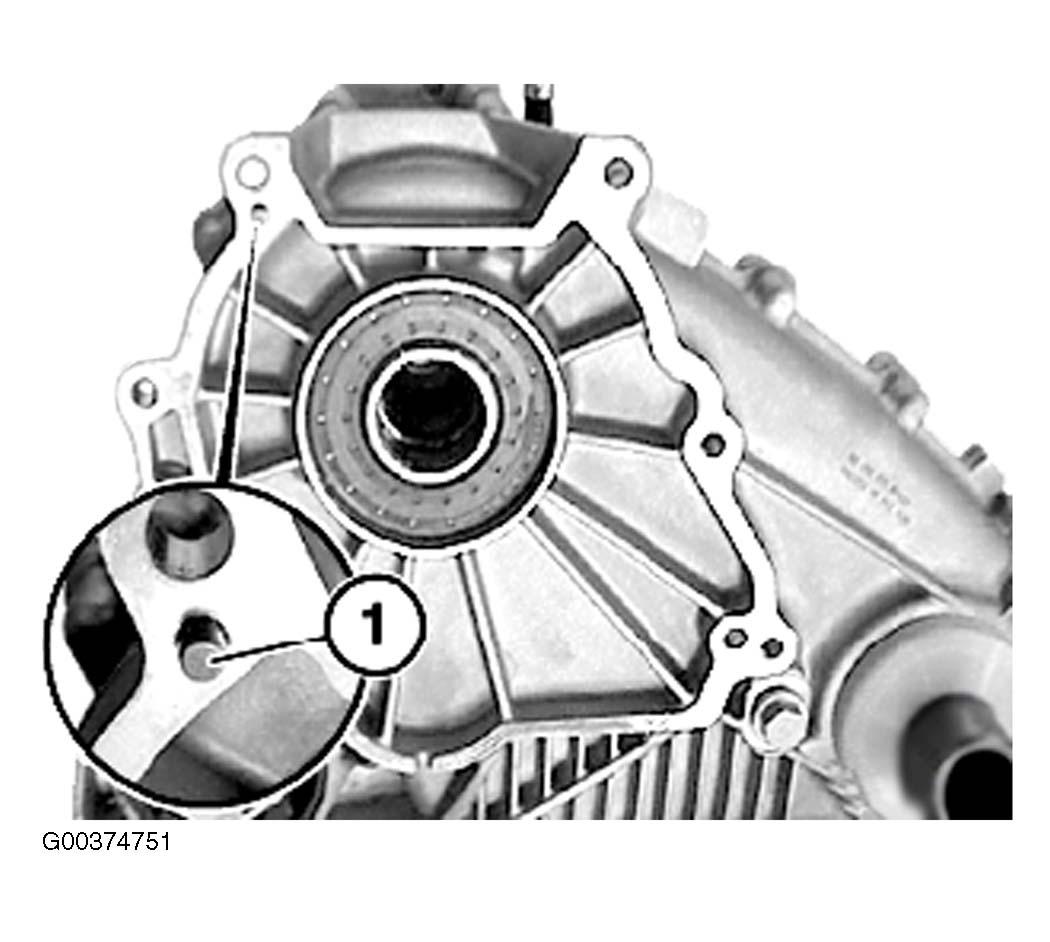

Fig 3: Installing Transfer Box
G00374751Courtesy of BMW OF NORTH AMERICA, INC.
Fig 4: Adjusting Selector Lever
G00367871Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Locating Reinforcement Plate Bolts
G00160910Courtesy of BMW OF NORTH AMERICA, INC.
