72 11 ... Removing and installing/replacing belt lock for 3rd seat row on left or right
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove outer trim. See 52 30 .. REMOVING AND INSTALLING OUTER TRIM FOR 3rd SEAT ROW .

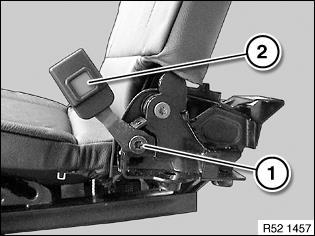

Release screw (1). Tightening torque, see 72 11 45AZ in 72 11 SEAT BELTS . Remove belt lock (2). Installation: Belt lock is coded to prevent incorrect installation.
