66 53 160 Removing and installing (replacing) the Top Rear View control unit

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary work:

Remove the cover from the dashboard trim panel

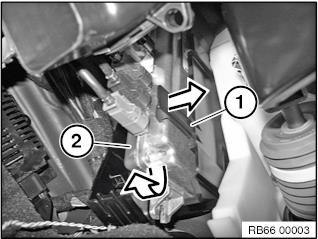

Unlock the retaining lug (1). Remove the control unit (2) from the bracket.

Fig 1: Remove Control Unit (2) From Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

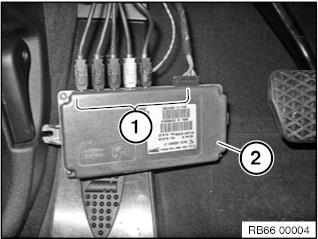

Unlock plug connections (1) and disconnect. Remove control unit (2).

Fig 2: Unlock Plug Connections (1) And Disconnect

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming and encoding
Perform the calibration ("Top View" exterior mirror camera only):
1. Mount KDS quick-release clamp on the wheels of the side being calibrated: e.g. front left and rear left. (Mounting the KDS quick-release clamp detects wheel center.)
2. Calibration is performed via BMW diagnosis system:
  - Service function
  - Body
  - All-round vision camera
  - Calibration of all-round vision camera
