66 53 150 Removing and installing/renewing video multiplexer
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)
.
Necessary preliminary work:
- E72 Only: :Remove both negative battery cables.
- Clamp off battery negative lead.
- Remove trim panel for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING PANEL FOR PEDALS .

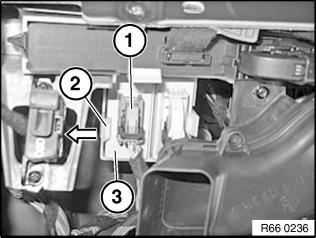

Disconnect plug connection (1). Unlock catch (2) in direction of arrow and pull out control unit (3) towards bottom.
