66 31 010 Instructions for ACC adjusting device

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Requirements for the measurement area for ACC adjusting device

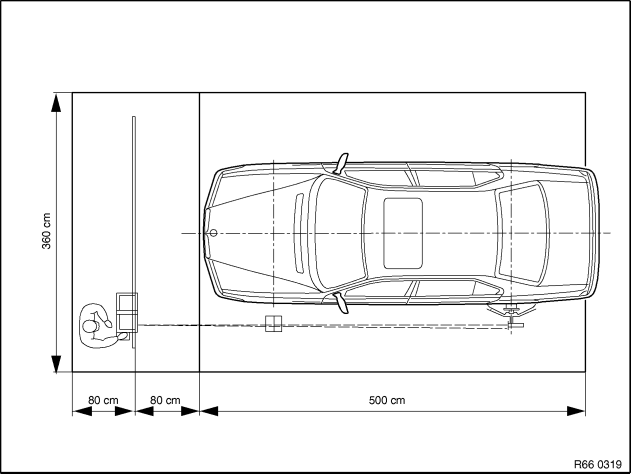

Dimensions:

Area behind the mirror of at least 80 cm that cane be entered
Distance between mirror and vehicle 80 cm +/- 5 cm
Total area of work area 360 cm x 660 cm

Fig 1: ACC Adjusting Device

Courtesy of BMW OF NORTH AMERICA, INC.

Maximum irregularity of floor surface:

Floor surface - adjusting device = 1 mm
Floor surface - vehicle = 10 mm

Fig 2: Maximum Irregularity Of Floor Surface

Courtesy of BMW OF NORTH AMERICA, INC.

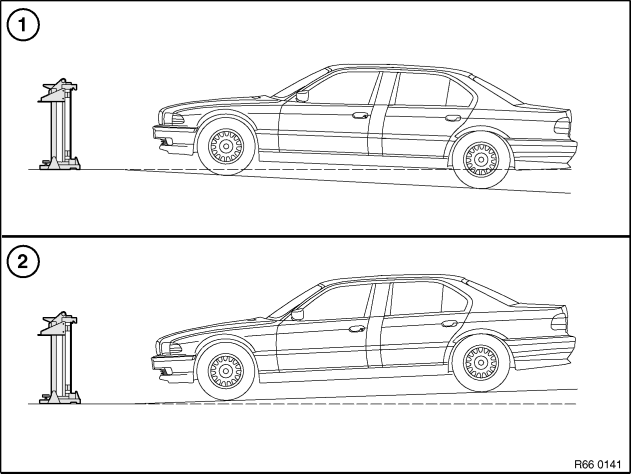

Maximum angle of inclination of floor surface - vehicle:

Downward incline of floor surface maximum 3°, see graphic above (1)
Upward incline of floor surface maximum 1°, see graphic above (2)

NOTE: Setting up the ACC adjusting device (one-off task) comprises the following steps:

Assembly of adjusting device
Assembly of rail
Basic setting of adjusting device on measurement area

Detailed instructions for setup and operation are enclosed with every ACC adjusting device.
