51 16 ... Calibrating compass in interior rearview mirror (from 09/08)
WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
It may be necessary to alter the magnetic deflection zone if the vehicle is more than two ranges away from the set deflection zone. For numbers of magnetic deflection zone, refer to Owner's manual.
If may be necessary to calibrate the compass if:
- Vehicle battery has been clamped off for an extended period of time.
- "C" appears in compass display.
- There is no compass display.
Adjusting magnetic field zone:

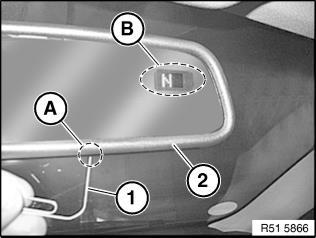

- Press and hold down control button (A) on inside mirror (2) with a suitable tool (1) for 3--6 seconds. The currently set magnetic field zone is indicated in the compass display (B) (default setting "8" for Central Europe). Release control button (A) briefly and select magnetic field zone (1-15) by pressing control button (A) again. Release setting button (A) when the desired magnetic field zone is selected. The selection menu is automatically exited after approx. 5 seconds.
- The compass must be recalibrated after the magnetic field zone has been changed.
Calibrating compass:
- Press and hold down setting button (A) on interior mirror (2) for 6-9 seconds. Release setting button (A) as soon as "C" is indicated in the compass display (B).
- Drive vehicle 2 to -3 times in a full circle at approx. 7-10 km/h. The circle must be at least twice the vehicle's turning circle. Calibration is complete as soon as a valid direction is displayed.
- For convertibles and vehicles with hardtops only: The digital compass must be calibrated once with the soft top or hardtop closed and once with the soft top or hardtop open.
Setting right-hand drive or left-hand drive vehicle:
- Press and hold down control button (A) on inside mirror (2) for 9--12 seconds. The currently set vehicle type is indicated in the compass display (B) (default setting "L" for left-hand drive). Release setting button (A) briefly and select vehicle ("L" or "R") by pressing setting button (A) again. Release setting button (A) when the desired vehicle type is selected. The selection menu is automatically exited after approx. 5 seconds.
- The compass must be recalibrated after the magnetic field zone has been changed.
Setting language of compass display:
- Press and hold down control button (A) on inside mirror (2) for 12--15 seconds. The currently set language is indicated in the compass display (B) (default setting "E" for English). Release setting button (A) briefly and select language (E for English or O for German) by pressing setting button (A) again. Release setting button (A) when the desired language is selected. The selection menu is automatically exited after approx. 5 seconds.
- The compass must be recalibrated after the magnetic field zone has been changed.
