51 11 156 Removing and installing front bumper trim (from 03/2010)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of mixing up - Different screws fitted.

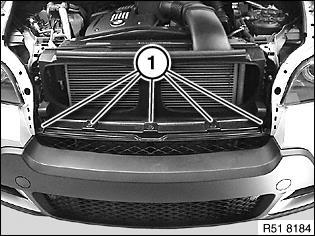

Release screws (1) on front brace.

Fig 1: Release Screws (1) On Front Brace

Courtesy of BMW OF NORTH AMERICA, INC.

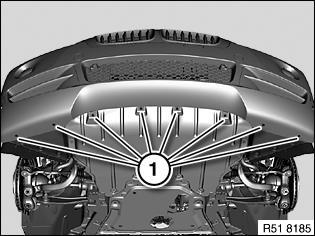

Release screws (1) under vehicle.

Fig 2: Release Screws (1) Under Vehicle

Courtesy of BMW OF NORTH AMERICA, INC.

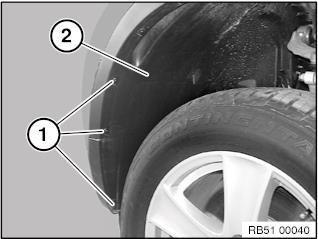

Loosen screws (1) on the right and left of the wheel arch cover (2). Installation note: Make sure wheel arch cover (2) is in correct position.

Fig 3: Loosen Screws (1) On The Right And Left Of The Wheel Arch Cover (2)

Courtesy of BMW OF NORTH AMERICA, INC.

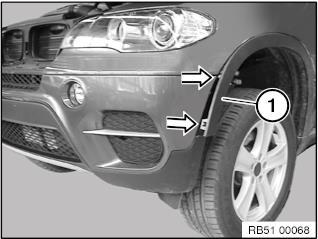

Unclip wheel arch cover (1) at front on left and right.

Fig 4: Unclip Wheel Arch Cover (1) At Front On Left And Right

Courtesy of BMW OF NORTH AMERICA, INC.

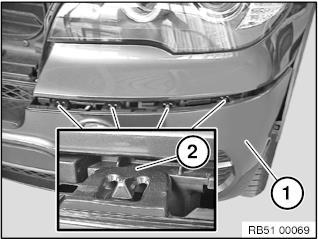

IMPORTANT: Bumper trim (1) is locked at sides in fixture and must be unlocked for removal purposes (risk of damage

Removing:

Beginning on the outside, carefully disengage individual guide tabs (2) on left and right
With the aid of another person, pull bumper trim (1) forward slightly, (if necessary, unlock and detach plug connection for Park Distance Control (PDC), plug connection for Side View camera left/right and plug connection for fog light left/right).

Remove bumper trim (1) towards front with aid of a 2nd person.

Fig 5: Bumper Trim (1) Is Locked At Sides In Fixture

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Guide tabs (1) must not be damaged! Observe gap dimensions. See BODY GAP DIMENSIONS .

Fig 6: Guide Tabs (1) Must Not Be Damaged

Courtesy of BMW OF NORTH AMERICA, INC.
