41 21 510 Replacing Front Left Door Pillar (Front Side Panel Removed)

Read contents of Body, General  . See 41 0 CONTENTS OF BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific procedure.

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved spot-welding apparatus for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

• (1) A-pillar, outer
• (2) Support carrier, wheel arch, outer
• (3) Shaped parts (not pictured)
  Fig 1: Identifying A-Pillar, Outer

  Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Fig 2: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with measurement a and cut support carrier.

Measurement a = approx. 50 mm in front of bore dia. 20 mm.

Open weld joints in area (1).

Installation:

Weld in reinforcement plate  at severance cut. See 41 00... WELDING IN REINFORCEMENT PLATE (STEEL PLATE) .

Fig 3: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

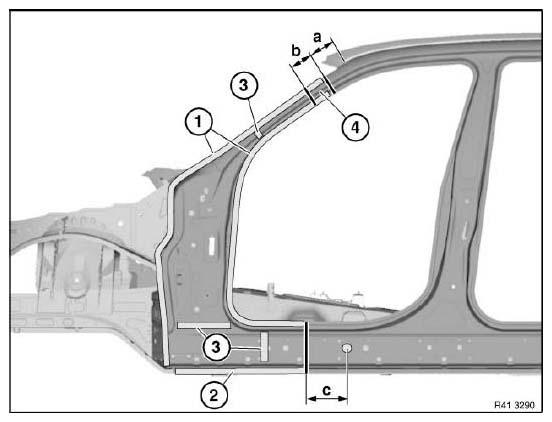

Fig 4: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

Measurement a = 160 mm from roof edge.

Measurement b = 80 mm below severance cut a.

Measurement c = approx. 150 mm before hole dia. 25 mm.

Open weld joints in areas (1) and (2).

Installation:

Sheet panel (4) is needed again to seal cowl.

Apply window glass adhesive to cavity acoustic baffles (3).

Bond and rivet new part in area (2).

Use Hemlock 813 blind rivet (sourcing reference: BMW Parts Service picture board - Aluminum and steel/bonding and welding).

Double number of rivets with respect to welding spots in area (2).

Mark severance cut (1) in accordance with measurement and cut.

Measurement a = approx. 200 mm from roof edge.

Fig 5: Identifying Severance Cut Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Open adhesive bonds in areas (1).

Open weld joints in areas (2).

Feed out water drain hose for sliding sunroof (3).

Installation:

Do not weld new part in areas (2).

Make sure water drain hose is correctly seated.

Fig 6: Identifying Open Weld Joints Area

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Mark new part in accordance with severance cuts above and cut.

Installation:

Adjust new part to fit with straightening attachment or universal mount.

Weld in reinforcing panels  at all severance cuts. See 41 00... WELDING IN REINFORCEMENT PLATE (STEEL PLATE) .

Apply adhesive  in areas (1).

Fig 7: Identifying Adhesive Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.
