36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection). See 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE)

Necessary preliminary tasks:

REMOVE PANEL FOR PEDALS

Release screws (1). Remove air duct (2).

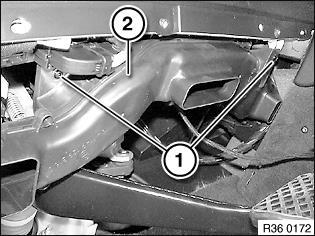

Fig 1: Release Screws (1)And Remove Air Duct (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1). Press lug (3) in direction of arrow and pull out control unit (2) towards bottom.

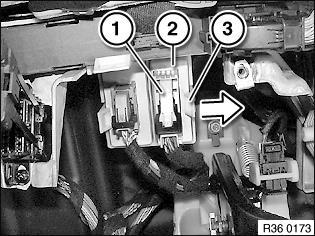

Fig 2: Press Lug (3) In Direction Of Arrow And Pull Out Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
