54 10 ... Removing and installing/replacing drive cable plate

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove mechanism for glass cover at front, see 54 10 020 Removing and installing mechanism for front glass lid .

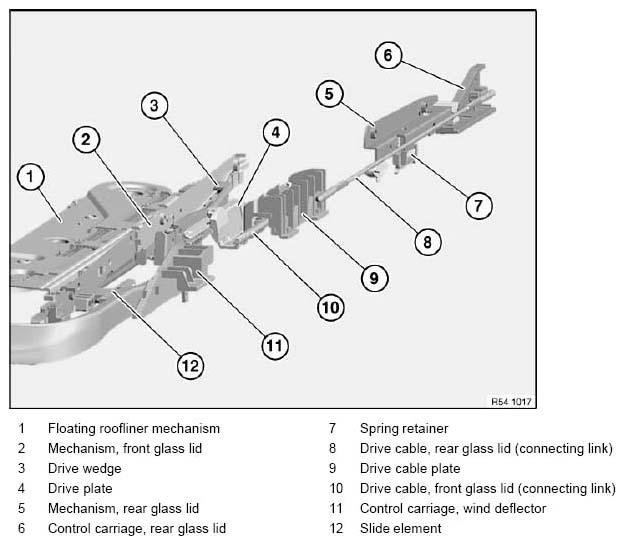

Overview of glass lid mechanism:

Fig 1: Identifying Glass Lid Mechanism Components

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Removing Drive Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

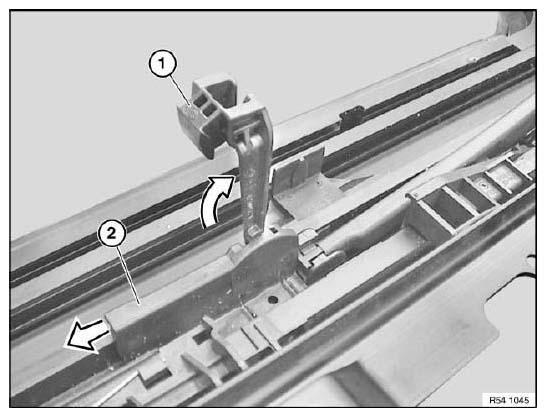

If necessary, remove drive wedge (1).

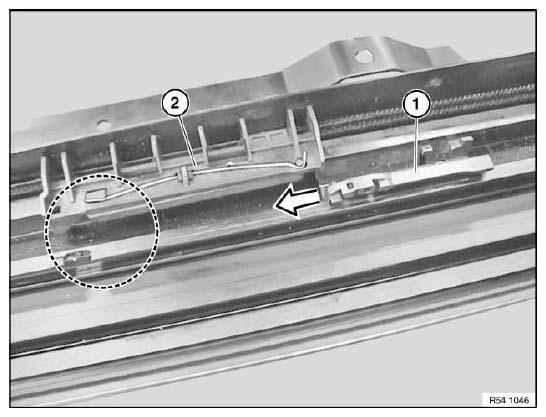

If necessary, slide drive cable plate (2) towards rear and remove from guide rail.

Fig 3: Sliding Drive Cable Plate And Drive Wedge

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage when installing drive cable plate
The rear drive cable plate (2) must be engaged before the front drive cable plate (1) is installed.
Incorrect setting can be identified from spring position and lever position (marked area).
Check engagement of rear drive cable plate (2) in guide rail.
Slide in drive cable plate (1).
