24 11 010 Removing and installing/sealing or replacing gearbox sump (GA6HP26Z)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT:

Do not let skin come in contact with transmission oil and do not inhale fuel vapours.
Wear protective gloves.
Ensure adequate ventilation.

IMPORTANT: Remove transmission oil sump only after it has cooled down.
After completion of repair work, check TRANSMISSION OIL LEVEL .
Use only the approved gearbox oil.
Failure to comply with this requirement will result in serious damage to the automatic transmission!
See AUTOMATIC TRANSMISSION -- OPERATING FLUIDS .

Release screws (1).

Remove air deflector (2).

Tightening torque 24 00 6AZ .

Fig 1: Identifying Air Deflector And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove oil drain plug (1).

Tightening torque: 24 11 6AZ .

Drain automatic transmission oil.

Installation note

Replace oil drain plug.

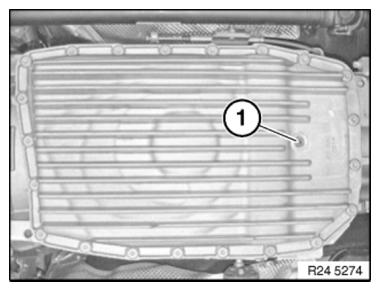

Fig 2: Identifying Oil Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling

Catch and dispose of escaping transmission oil.

Observe country-specific waste disposal regulations.

Unscrew all bolts.

Remove transmission oil sump (1).

Installation note:

Insert screws (2) until screw heads make contact.

Insert all further screws in diagonal sequence from inside to outside until screw heads make contact.

Tightening torque: 24 11 5AZ .

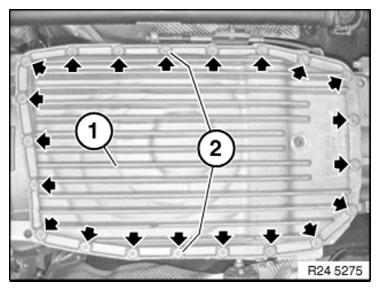

Fig 3: Identifying Transmission Oil Sump And Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (1) from transmission sump.

Clean gearbox oil sump to remove residual oil.

Clean sealing surfaces with a cloth.

Place new seal on gearbox oil sump.

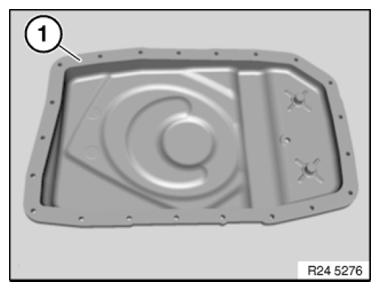

Fig 4: Identifying Transmission Sump Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not degrease transmission oil sump with cleaning agent.
