11 13 020 Removing and installing/replacing lower oil sump section (S63)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove REINFORCEMENT PLATE .
REMOVE OIL DRAIN PLUG and drain engine oil.

Unlock plug connection (1) on oil level sensor and disconnect.

Release screws (2) along line.

Tightening torque 11 13 2AZ .

Remove lower oil sump section (3).

Installation:

Clean sealing surfaces.

Replace seal.

Replace screws.

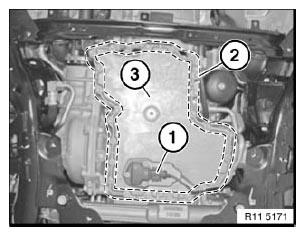

Fig 1: Identifying Plug Connection, Lower Oil Sump Section And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing oil sump bottom section:

Convert oil level sensor.

Replace sealing ring.
