32 41 333 Replacing pressure line for Dynamic Drive (line part 2) (N63/S63)

WARNING: This page is about a different car, the 2013 BMW X5 M, 2012 BMW X5 M, 2011 BMW X5 M, and 2010 BMW X5 M. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
DANGER OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT: Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off pipe connections with seal plugs.

Recycling

Catch and dispose of hydraulic fluid in a suitable collecting vessel.

Necessary preliminary work

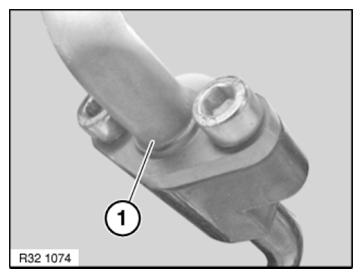

Release hexagon socket screws from flange (1).

Tightening torque 32 41 16 AZ

Seal pressure lines with suitable seal plugs.

Installation note:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 1: Identifying Pressure Line Flange
G08527852Courtesy of BMW OF NORTH AMERICA, INC.

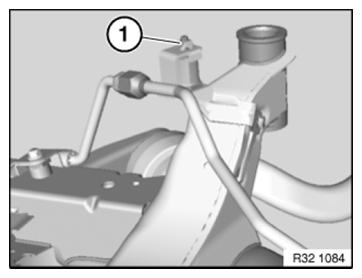

Release nut (1) and remove pressure line from decoupling element (2).

Tightening torque 32 41 7 AZ .

Installation note:

Replace self-locking nut.

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 2: Identifying Pressure Line Decoupling Element Nut
G08527853Courtesy of BMW OF NORTH AMERICA, INC.

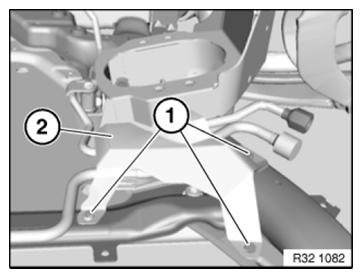

Release screws (1) and remove heat shield (2).

Tightening torque 32 41 14AZ .

Fig 3: Identifying Heat Shield And Screws
G08527854Courtesy of BMW OF NORTH AMERICA, INC.

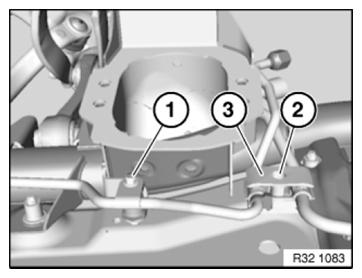

Release screw (1).

Tightening torque 32 41 7AZ .

Release screw (2) and remove holder (3).

Installation note:

Make sure pressure line is laid without tension and with sufficient spacing to adjoining components.

Fig 4: Identifying Holder And Screws
G08527855Courtesy of BMW OF NORTH AMERICA, INC.

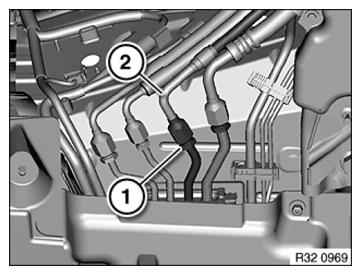

Release banjo bolt (1).

Tightening torque 37 14 15AZ .

Seal pressure lines with suitable seal plugs.

Remove pressure line (2).

Installation note:

Hydraulic lines are not permitted to contact each other or adjoining components.

Fig 5: Identifying Pressure Line And Banjo Bolt
G08527856Courtesy of BMW OF NORTH AMERICA, INC.

After installation
