Installation Of Replacement Transfer Case
WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

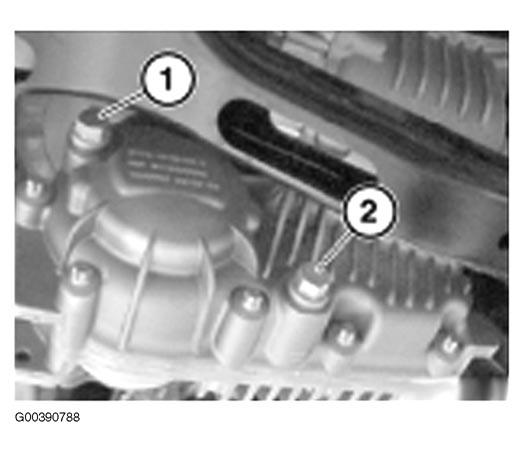

Drain oil at oil drain plug (2). See Fig 1.
Remove TRANSFER CASE .
Swap the following parts from previous transfer case to new transfer case:
- Covers & Protective Caps
- Drive Shaft Transportation Lock
- Vent Hose Of Transfer Case
- Vibration Damper
- Rubber Mount For Transfer Case Mounting
