11 31 001 Replacing camshaft (M52TU / M54 / M56): Removal

Removal of camshafts is described separately from installation. The assembly sequence for removal and installation is different.

Remove VANOS adjustment unit. Refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .

IMPORTANT: Cylinder for chain tensioning piston is under spring pressure.

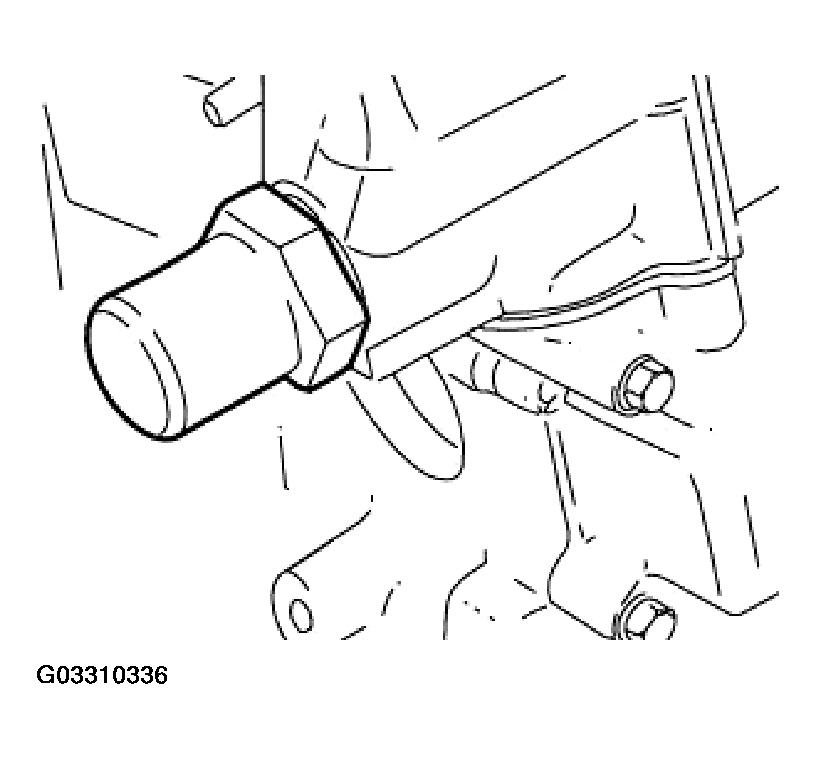

Unfasten cylinder for chain tensioning piston.

Fig 1: Unfastening Cylinder For Chain Tensioning Piston

G03310336

Courtesy of BMW OF NORTH AMERICA, INC.

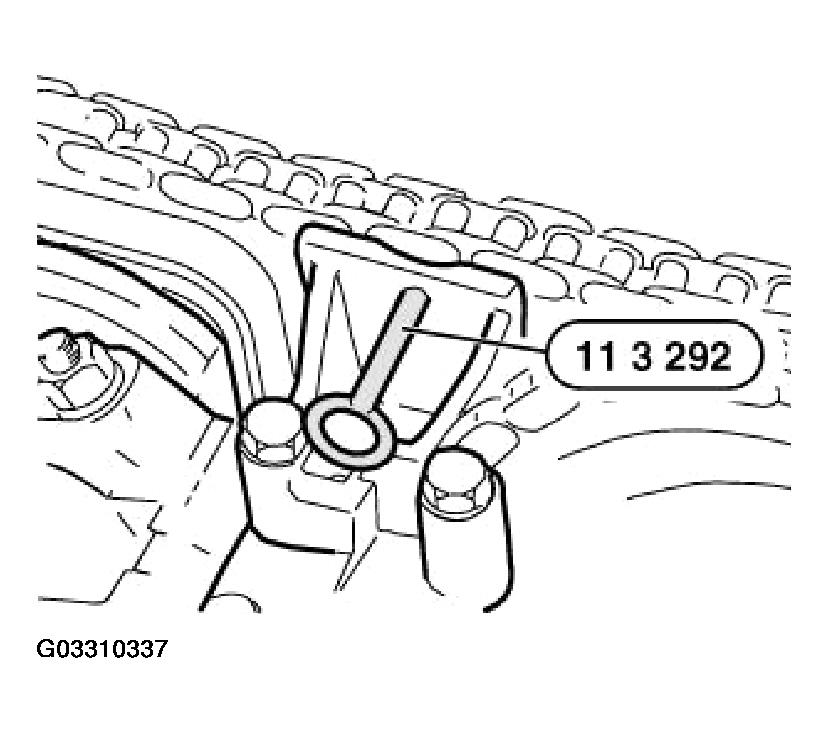

Press down secondary chain tensioner at top and lock with special tool 11 3 292.

Fig 2: Locking Secondary Chain Tensioner

G03310337

Courtesy of BMW OF NORTH AMERICA, INC.

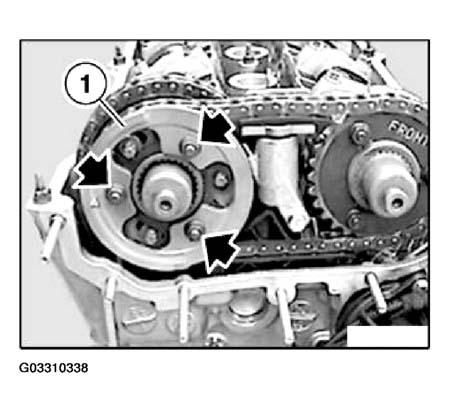

Release nuts, remove sensor gear (1).

Fig 3: Removing Sensor Gear

G03310338

Courtesy of BMW OF NORTH AMERICA, INC.

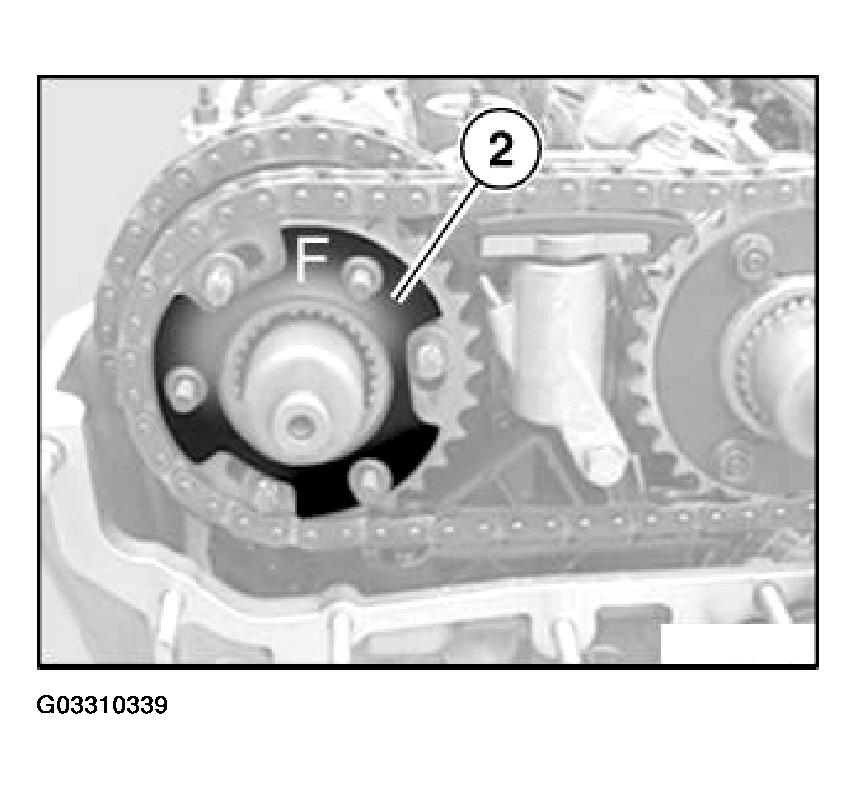

Remove plate spring (2).

Fig 4: Removing Plate Spring

G03310339

Courtesy of BMW OF NORTH AMERICA, INC.

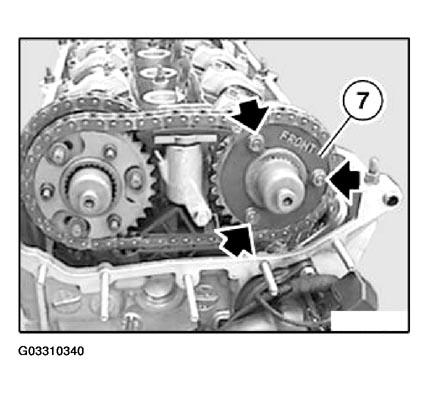

Release nuts on inlet side and remove corrugated washer (7).

Fig 5: Removing Corrugated Washer

G03310340

Courtesy of BMW OF NORTH AMERICA, INC.

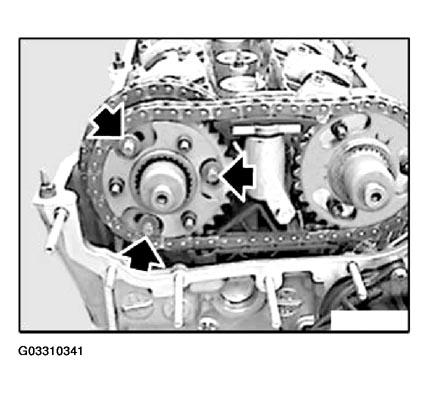

Unfasten screws.

Fig 6: Unfastening Screws

G03310341

Courtesy of BMW OF NORTH AMERICA, INC.

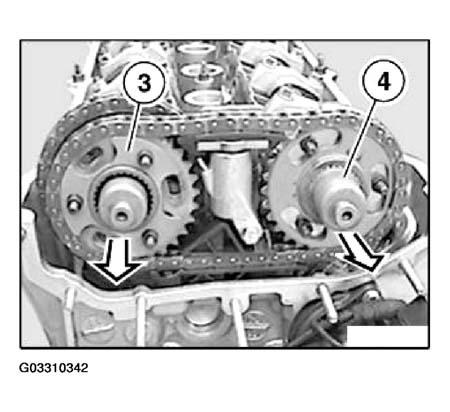

Lift off exhaust and inlet chain wheels together with chain, friction washer (3) and toothed shaft (4).

Fig 7: Lifting Off Exhaust And Inlet Chain Wheels

G03310342

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Toothed shaft (4) is and identical part for exhaust and inlet sides. Store used toothed shafts in order and reinstall on the same side only.

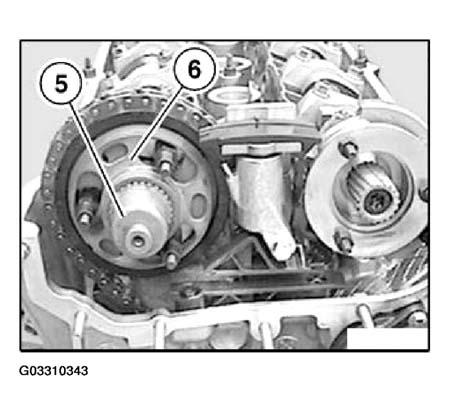

Remove toothed shaft (5) with toothed sleeve (6).

Fig 8: Removing Toothed Shaft With Toothed Sleeve

G03310343

Courtesy of BMW OF NORTH AMERICA, INC.

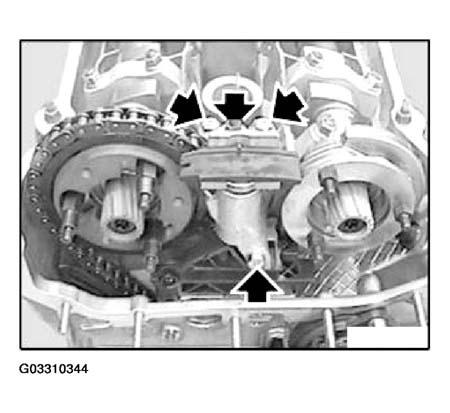

Unfasten screws. Remove secondary chain tensioner.

Fig 9: Removing Secondary Chain Tensioner

G03310344

Courtesy of BMW OF NORTH AMERICA, INC.

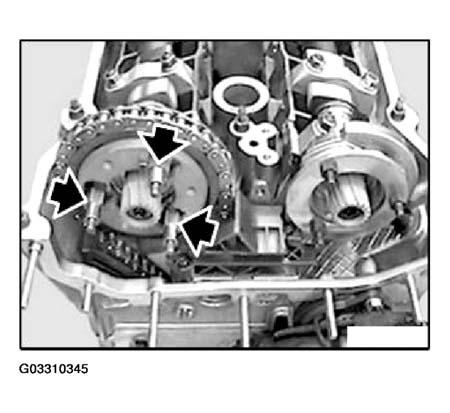

Release screw-in pin.

Fig 10: Releasing Screw-In Pin

G03310345

Courtesy of BMW OF NORTH AMERICA, INC.

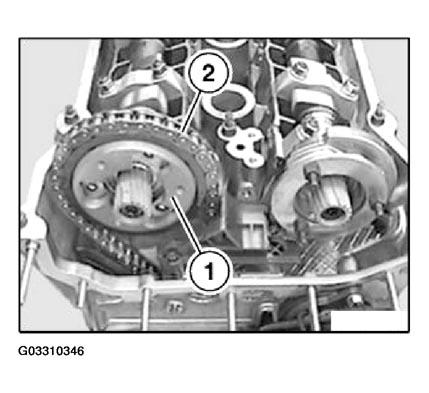

Feed chain wheel (1) towards front out of timing chain (2).

Fig 11: Feeding Chain Wheel Out Of Timing Chain

G03310346

Courtesy of BMW OF NORTH AMERICA, INC.

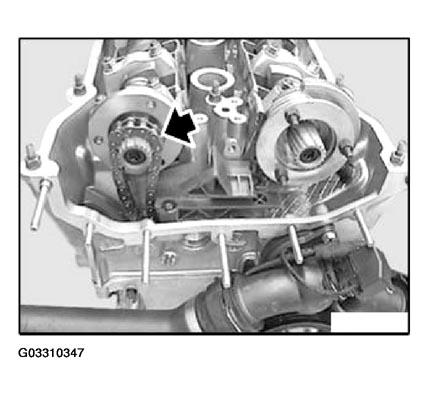

NOTE: Timing chain remains positioned over exhaust camshaft.

Fig 12: Identifying Timing Chain Position

G03310347

Courtesy of BMW OF NORTH AMERICA, INC.

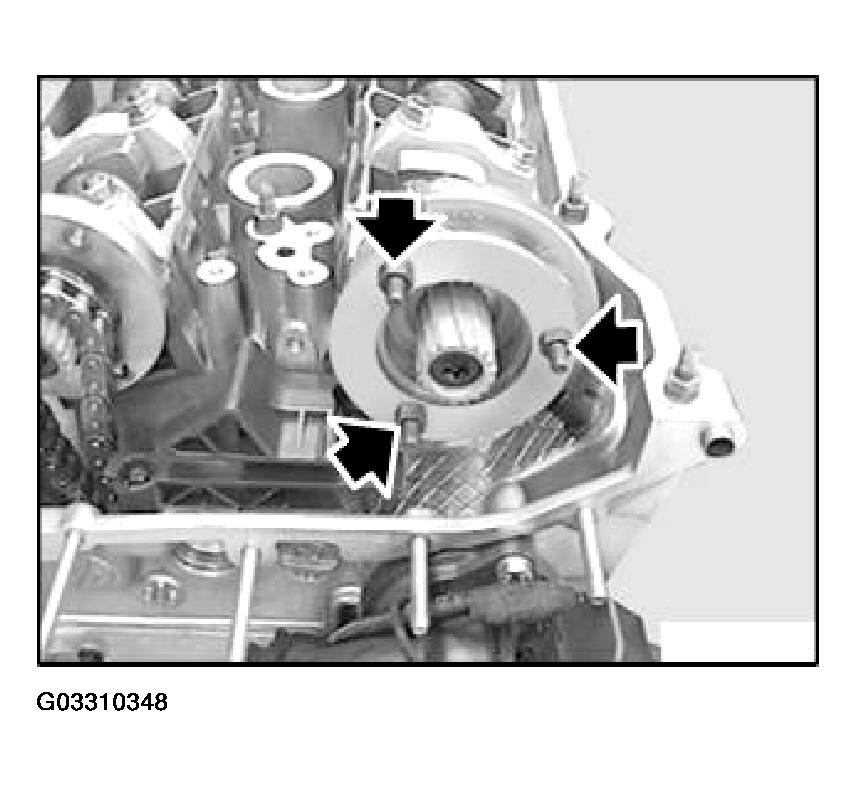

If necessary, release screw-in pin on inlet side. Remove thrust washer.

Fig 13: Removing Thrust Washer

G03310348

Courtesy of BMW OF NORTH AMERICA, INC.

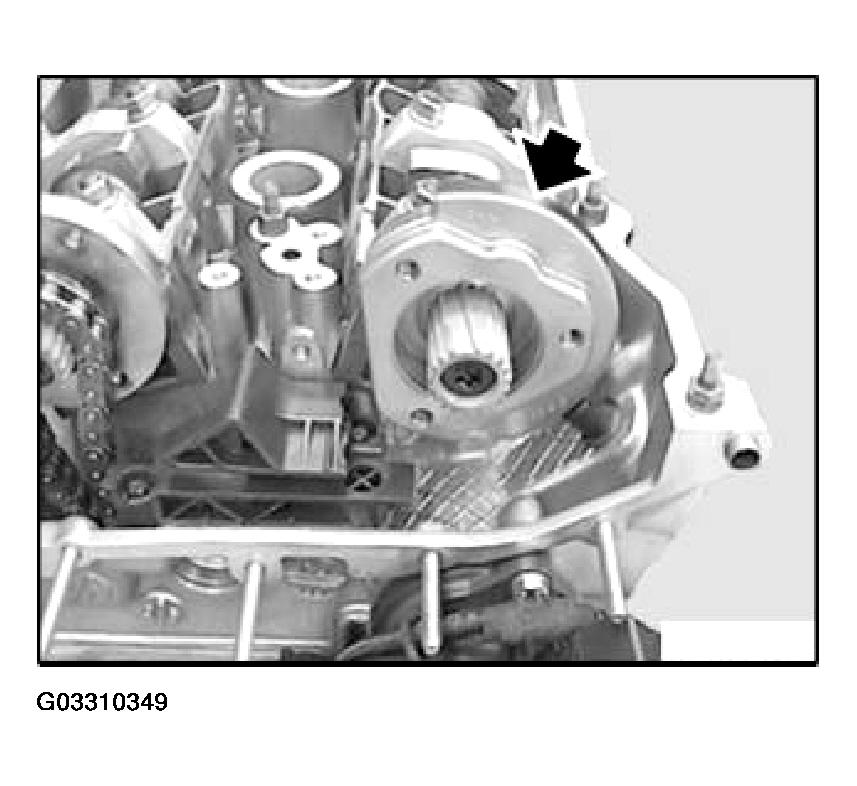

Remove sensor gear.

Fig 14: Removing Sensor Gear

G03310349

Courtesy of BMW OF NORTH AMERICA, INC.

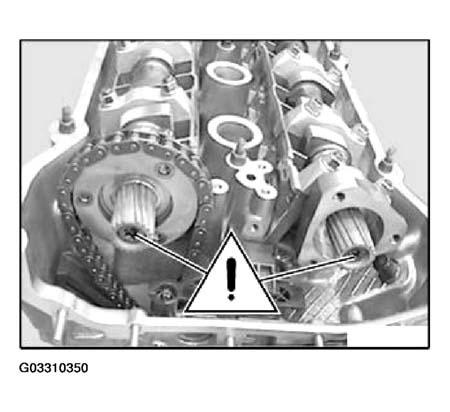

IMPORTANT: Do "NOT" release these screws.

Fig 15: Locating Screws

G03310350

Courtesy of BMW OF NORTH AMERICA, INC.

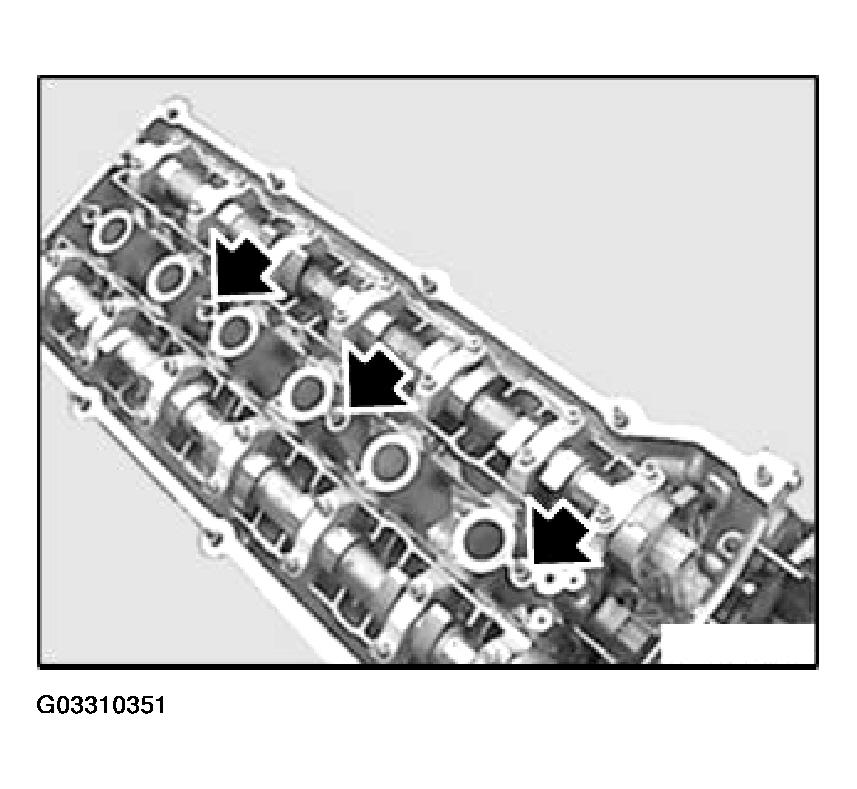

Unscrew studs.

Fig 16: Unscrewing Studs

G03310351

Courtesy of BMW OF NORTH AMERICA, INC.

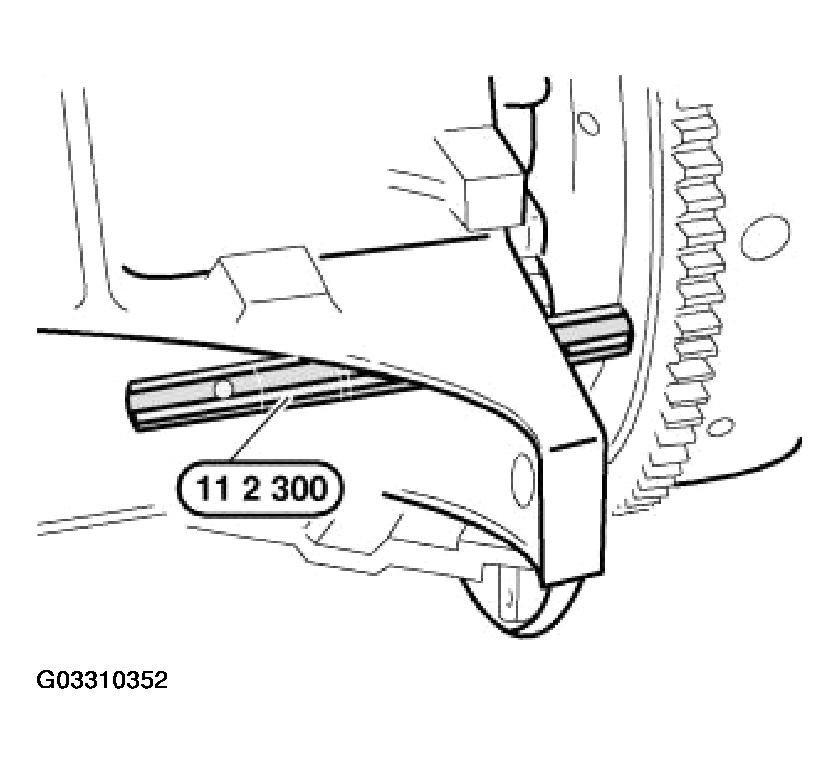

Pull special tool 11 2 300 back until flywheel is no longer secured in position.

Fig 17: Pulling Special Tool Back

G03310352

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To prevent damaging valves when fitting the camshafts, no pistons should be in TDC position.

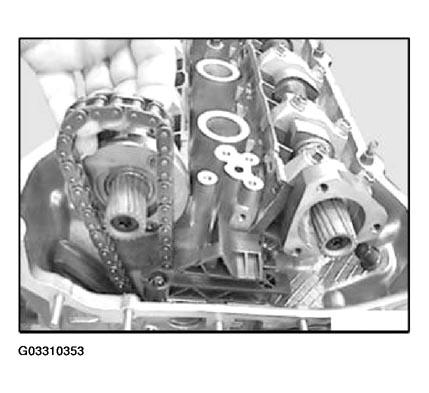

Lift timing chain and hold under tension.

Rotate engine against direction of engine rotation approx. 30° using the central bolt.

Fig 18: Lifting Timing Chain

G03310353

Courtesy of BMW OF NORTH AMERICA, INC.

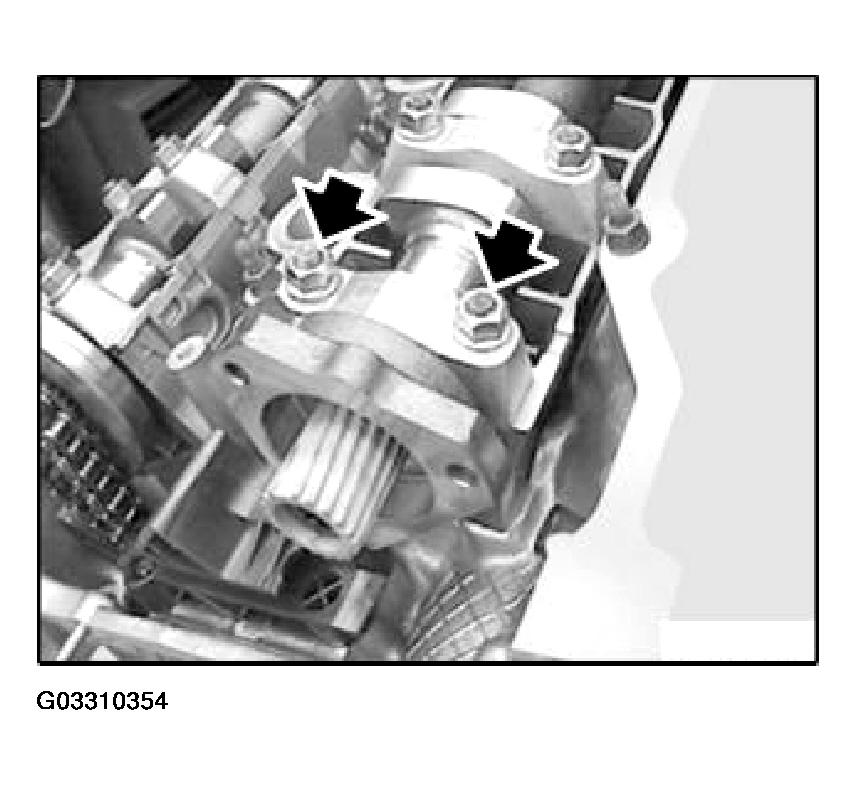

IMPORTANT: Bearing cap 1 of inlet camshaft is centered with adapter sleeves.

To prevent inlet camshaft from tilting in bearing strip, release nuts and remove bearing cap 1.

Fig 19: Removing Bearing Cap

G03310354

Courtesy of BMW OF NORTH AMERICA, INC.

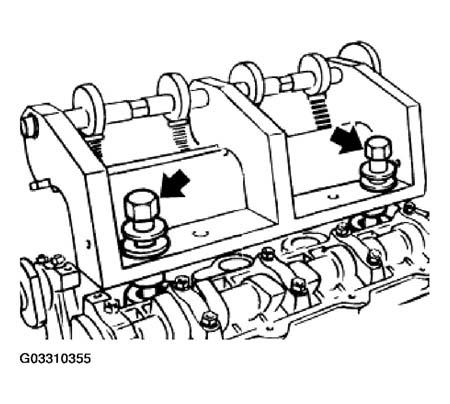

Fit special tool 11 3 260 to cylinder head and screw into spark plug threads in cylinders 1 and 4.

Fig 20: Fitting Special Tool To Cylinder Head

G03310355

Courtesy of BMW OF NORTH AMERICA, INC.

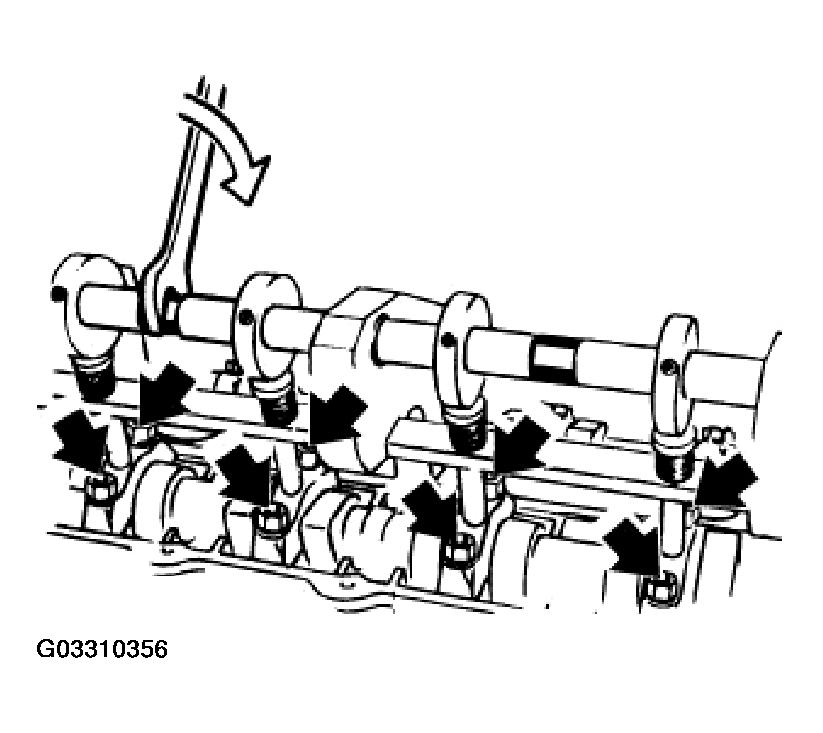

Turn the eccentric shaft to tension the bearing caps. Unfasten nuts on bearing cover.

Fig 21: Unfastening Nuts On Bearing Cover

G03310356

Courtesy of BMW OF NORTH AMERICA, INC.

Relieve tension on eccentric shaft and remove special tool 11 3 260.

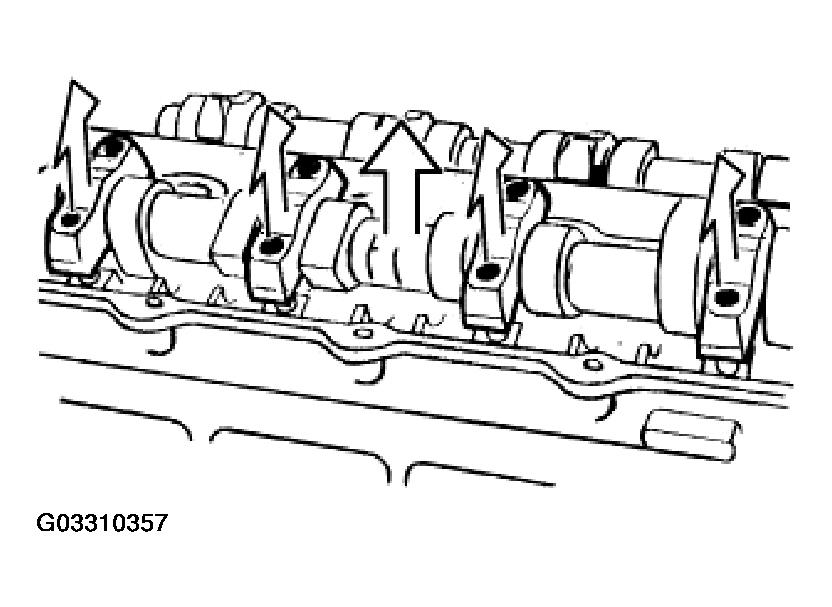

Remove bearing covers and place to one side in orderly fashion. Remove camshaft.

Fig 22: Removing Bearing Covers

G03310357

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: If the cylinder head is then to be removed, remove complete bearing strip with bucket tappets.

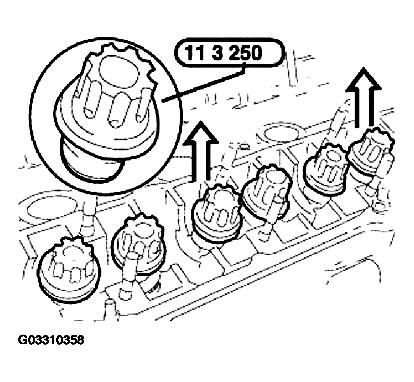

Locate bucket tappets in bearing strip with special tool 11 3 250. Lift out complete bearing strip with bucket tappet.

Fig 23: Locating Bucket Tappets In Bearing Strip With Special Tool

G03310358

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Only re-use used bucket tappets in the same tappet bore.

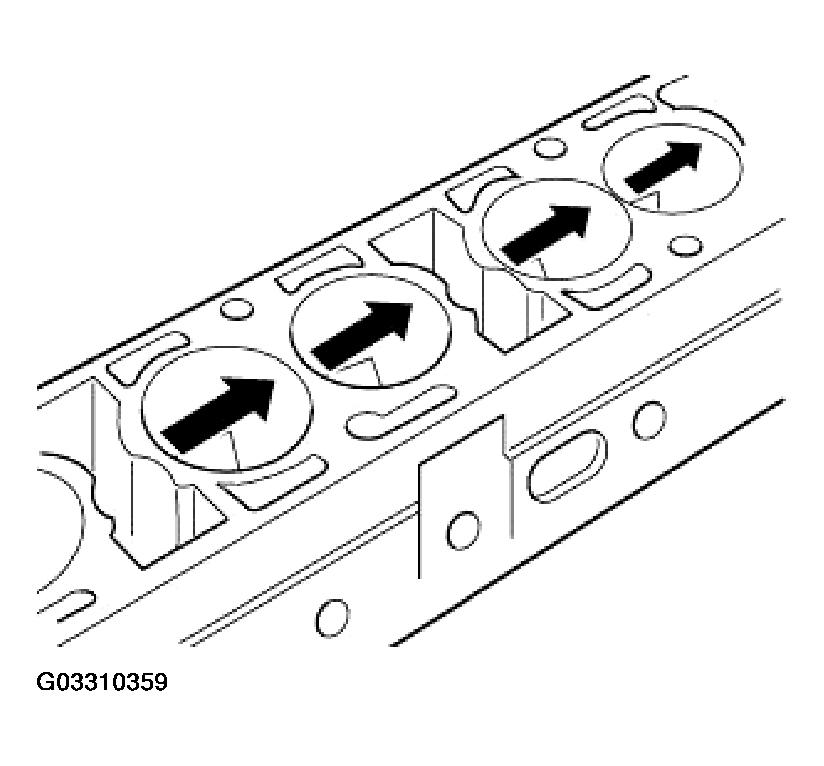

Check bearing points on bucket tappets for signs of wear (scoring).

Fig 24: Checking Bearing Points On Bucket Tappets

G03310359

Courtesy of BMW OF NORTH AMERICA, INC.

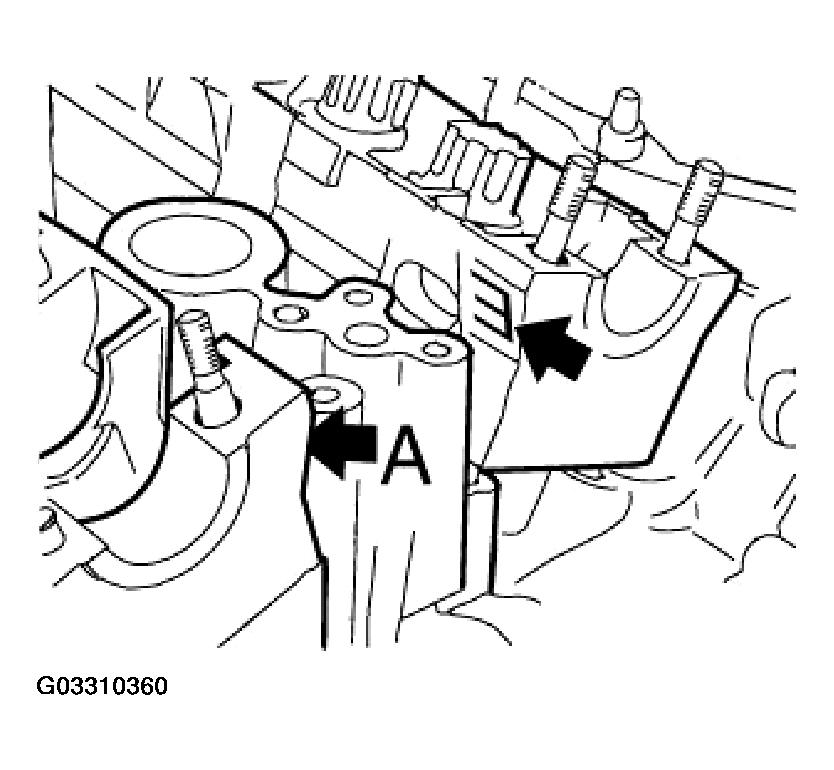

Bearing strips are marked "A" for exhaust side and "E" for inlet side.

Fig 25: Identifying Bearing Strips Marks

G03310360

Courtesy of BMW OF NORTH AMERICA, INC.

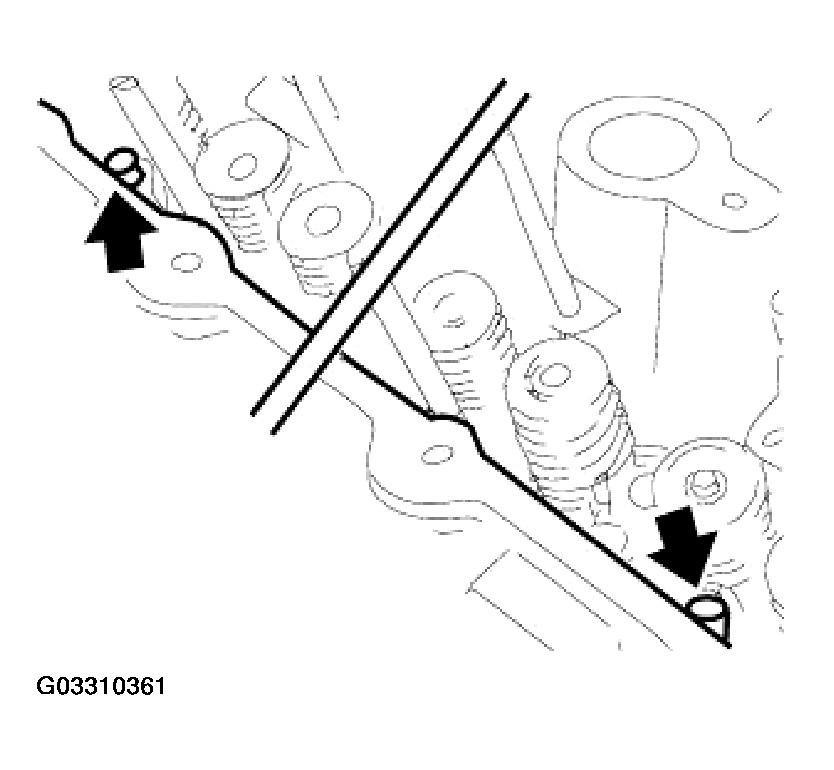

Note centering dowels on retaining pins at bearing points 2 and 7.

Install bearing strips.

Fig 26: Installing Bearing Strips

G03310361

Courtesy of BMW OF NORTH AMERICA, INC.
