18 00 020 Removing and installing complete exhaust system

Special tools required:

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

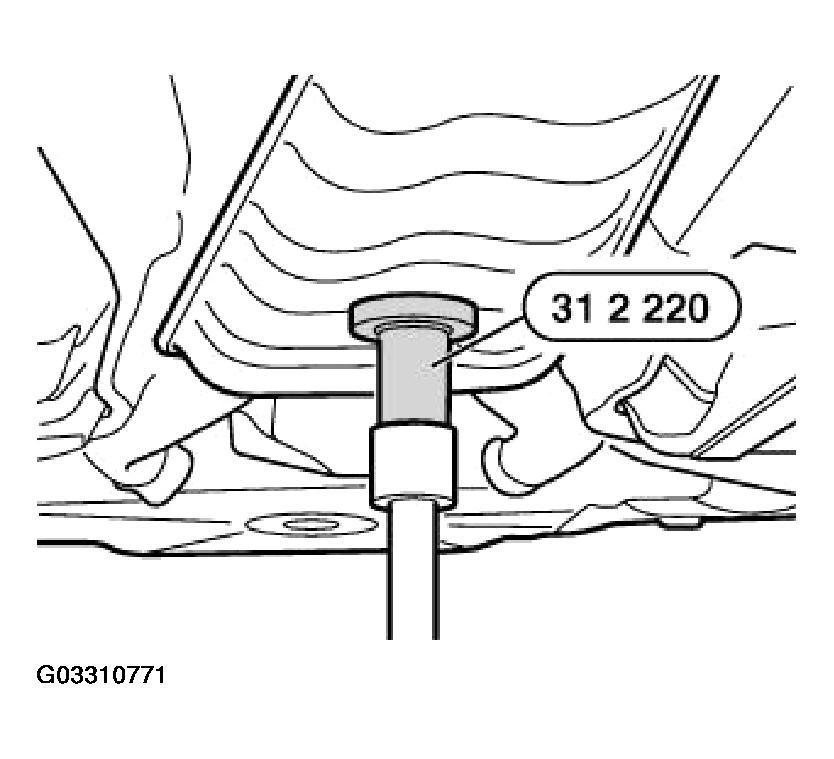

Support exhaust system with jack and special tool 31 2 220 and secure against falling out.

Fig 1: Supporting Exhaust System

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Removal of the exhaust system must be carried out with the assistance of a second person.

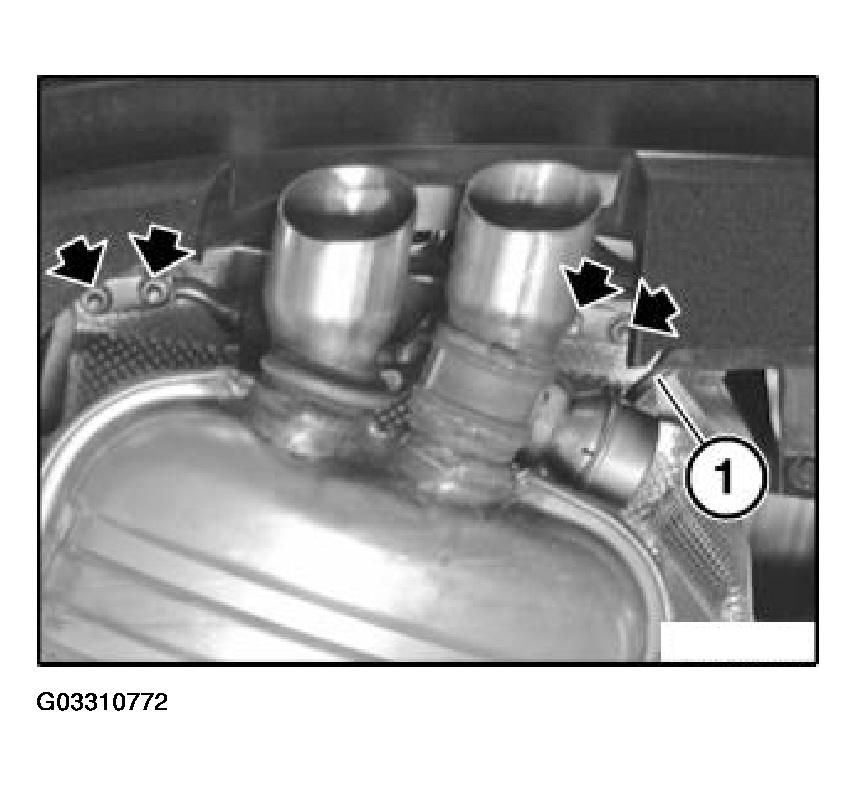

Pull off vacuum hose (1).

Fig 2: Locating Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts.

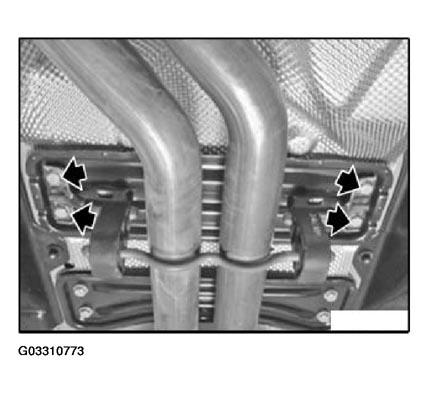

Unfasten screws.

Fig 3: Removing Muffler Screws

Courtesy of BMW OF NORTH AMERICA, INC.

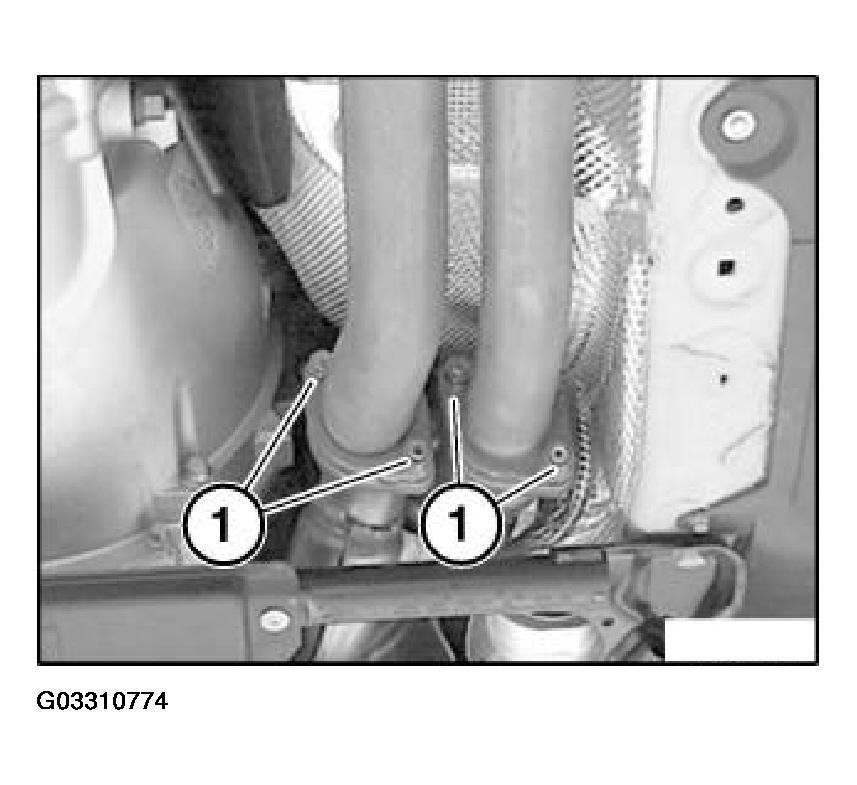

Release nuts (1) and remove complete exhaust system.

Fig 4: Removing Complete Exhaust System

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace nuts.
