51 42 000 Removing And Installing Rear Left Or Right Door Trim Panel

Special tools required:

00 9 317

WARNING: Version with side AIRBAG:
Follow safety instructions for working on cars with AIRBAG systems, refer to 51 00 ... SAFETY INSTRUCTIONS FOR WORKING ON CARS WITH AIRBAG SYSTEMS .

CAUTION: Do not use any sharp-edged tools to remove the panel - risk of damage to AIRBAG.

Remove clipped-in trim (decorative strip) on door trim panel. Refer to 51 16 221 REPLACING A CLIPPED FINISHER (DECORATIVE STRIP ON PANEL FOR INSTRUMENT PANEL, FRONT OR REAR DOOR) .

Remove toggle switch for door window operation. Refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (DOOR SWITCH CENTER) .

Remove footwell light on bottom of door. Refer to 63 31 020 REMOVING AND INSTALLING/REPLACING FOOTWELL LIGHT .

Version with roller sun blind additionally:

Remove roller sun blind on door window. Refer to 51 16 400 REMOVING AND INSTALLING OR REPLACING SUN BLIND AT FIXED SIDE WINDOW OF LEFT OR RIGHT REAR DOOR .

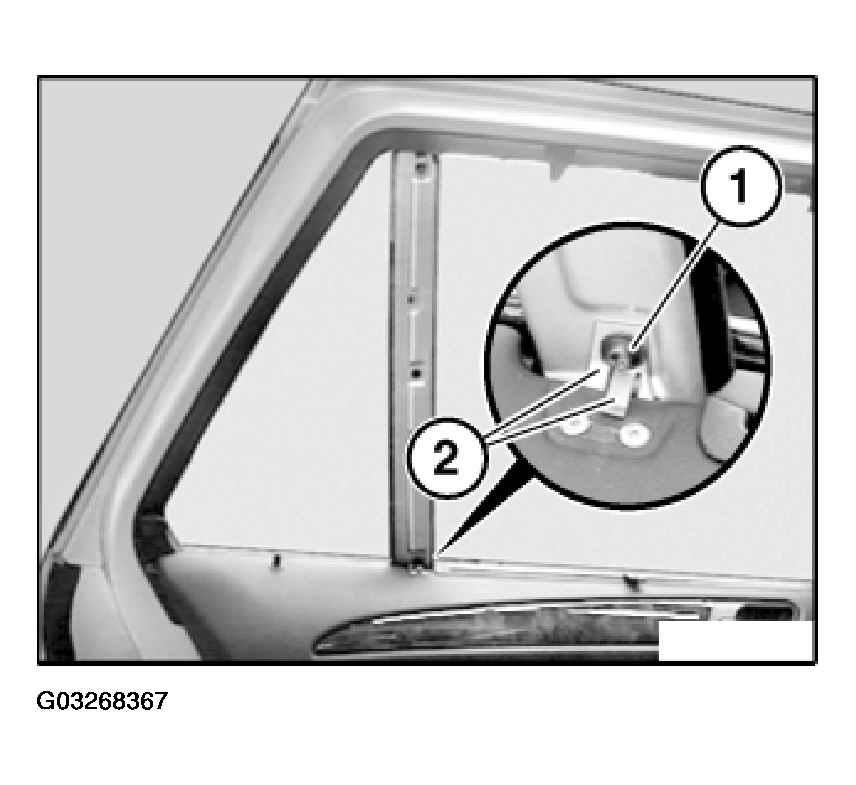

Release screw (1).

Fig 1: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bracket (2) must not be damaged.

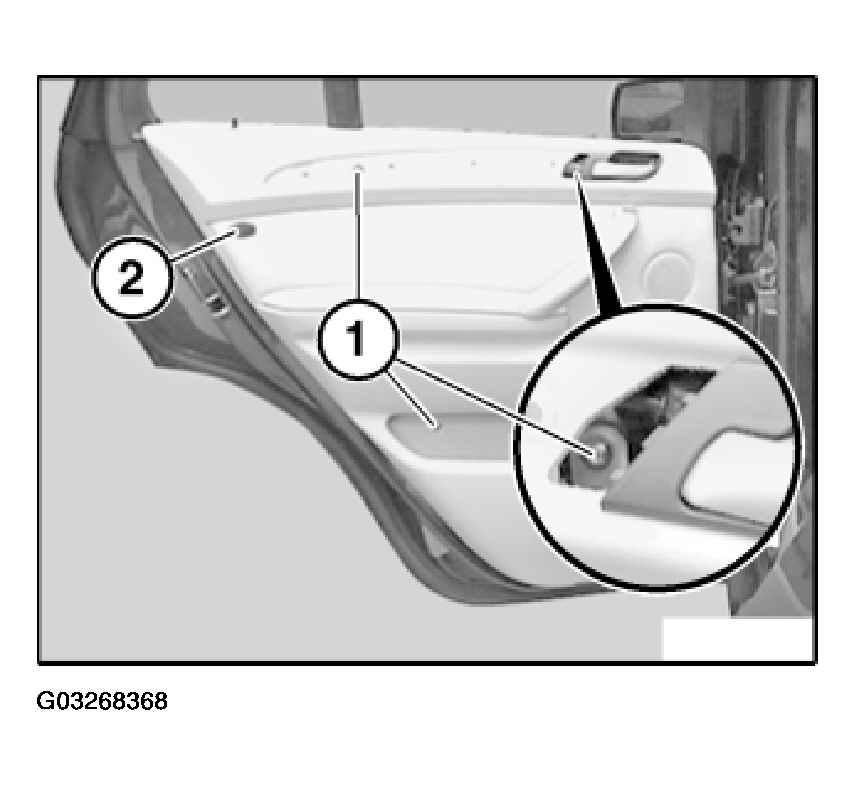

Release screws (1).

Fig 2: Identifying AIRBAG Label

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out AIRBAG label (2) and release screw underneath.

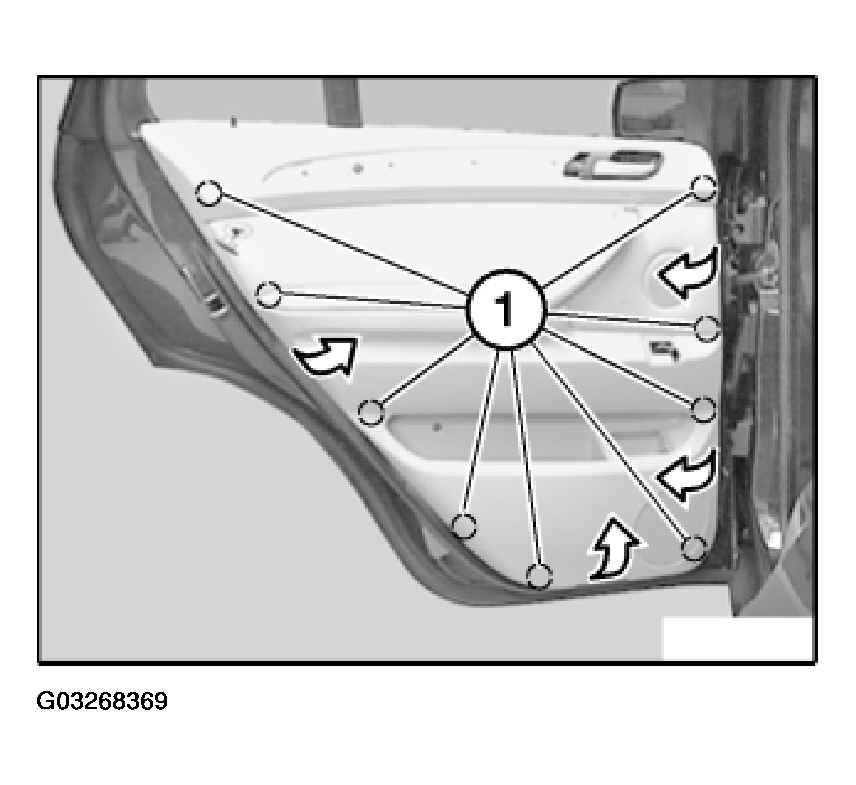

Unclip clips (1) of door trim panel with special tool 00 9 317 (trim panel wedge).

Fig 3: Removing Clips Of Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

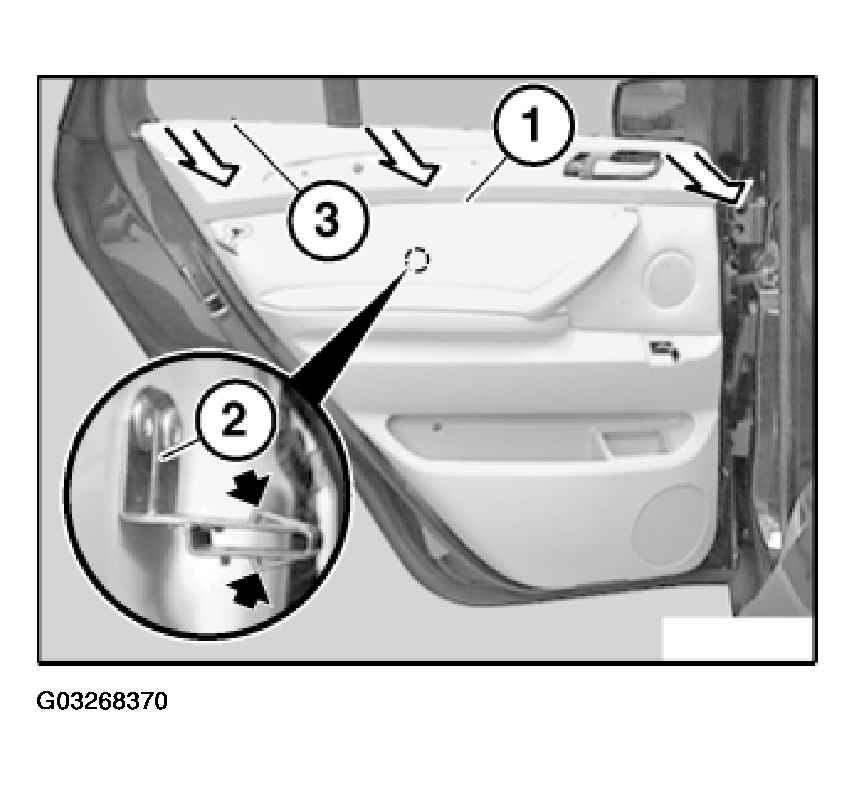

Carefully unclip door trim panel (1) at top with special tool 00 9 317 (trim panel wedge).

Fig 4: Removing Door Trim Panel At Top

Courtesy of BMW OF NORTH AMERICA, INC.

Feed door trim panel (1) out of unlocking button (3).

Installation:

Bend open retainers (2) on inner door plate for accommodating central clip.

Version with lighting for inside door handle:

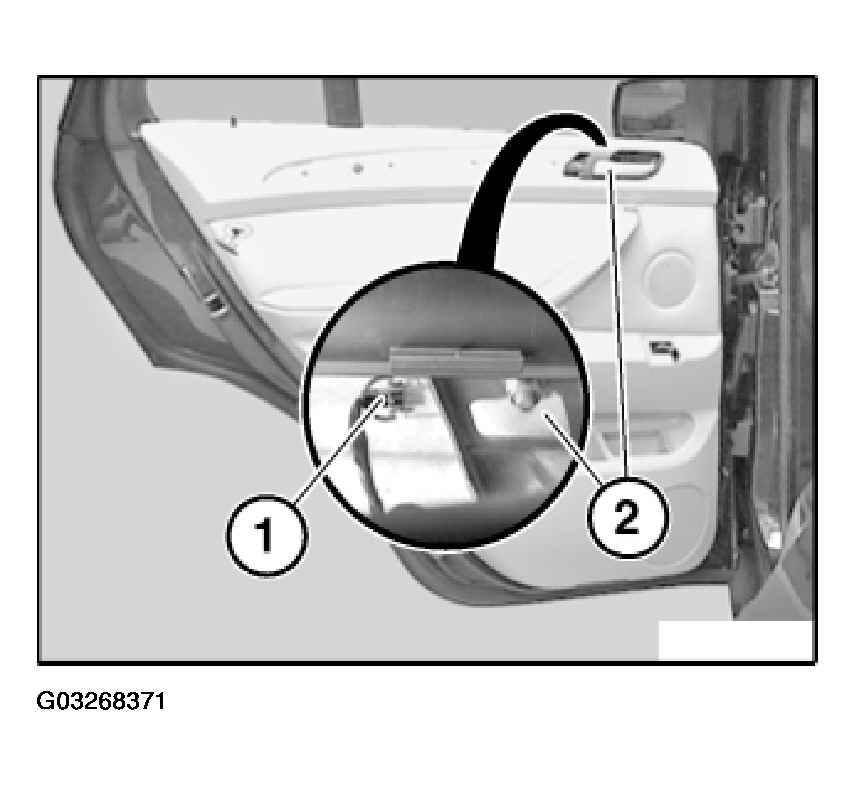

If necessary, disconnect plug connection (1) on inside door handle (2).

Fig 5: Locating Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

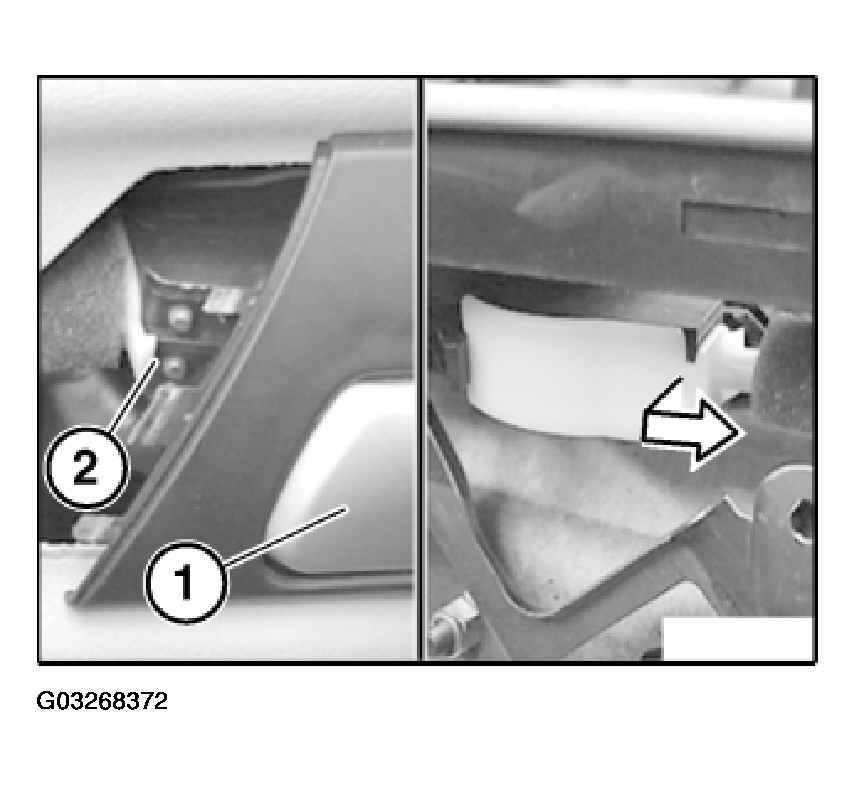

Unhook Bowden cable for release lever:

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable towards inside/rear.

Fig 6: Detaching Bowden Cable

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Press unlocking lever (1) for installation fully on door trim panel.

Version with additional speaker:

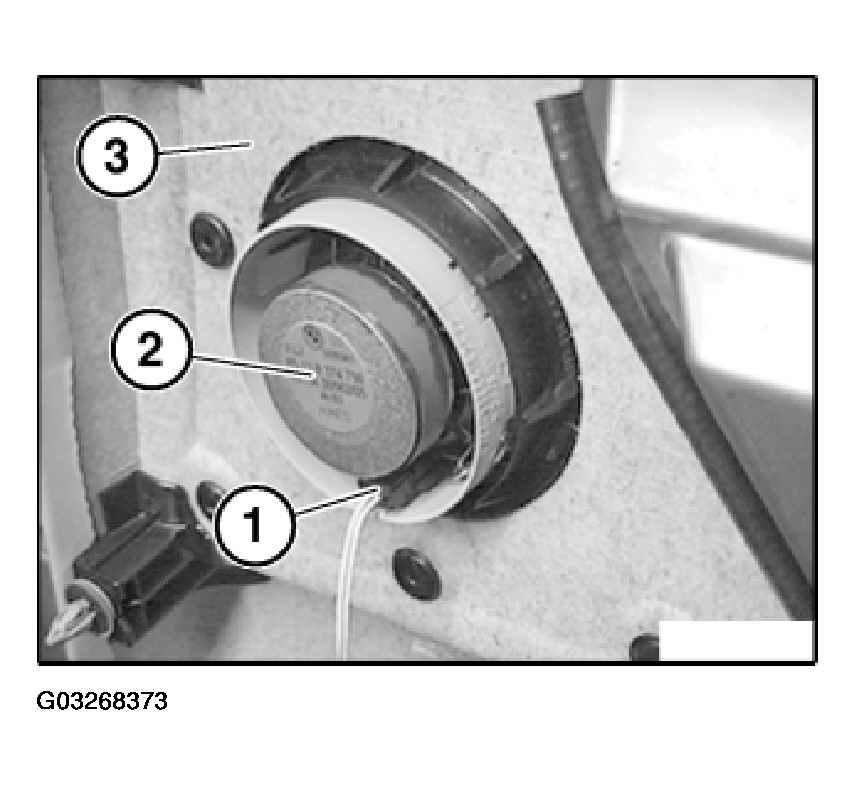

If necessary, disconnect plug connection (1) on additional speaker (2).

Fig 7: Removing Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door trim panel (3).

Installation:

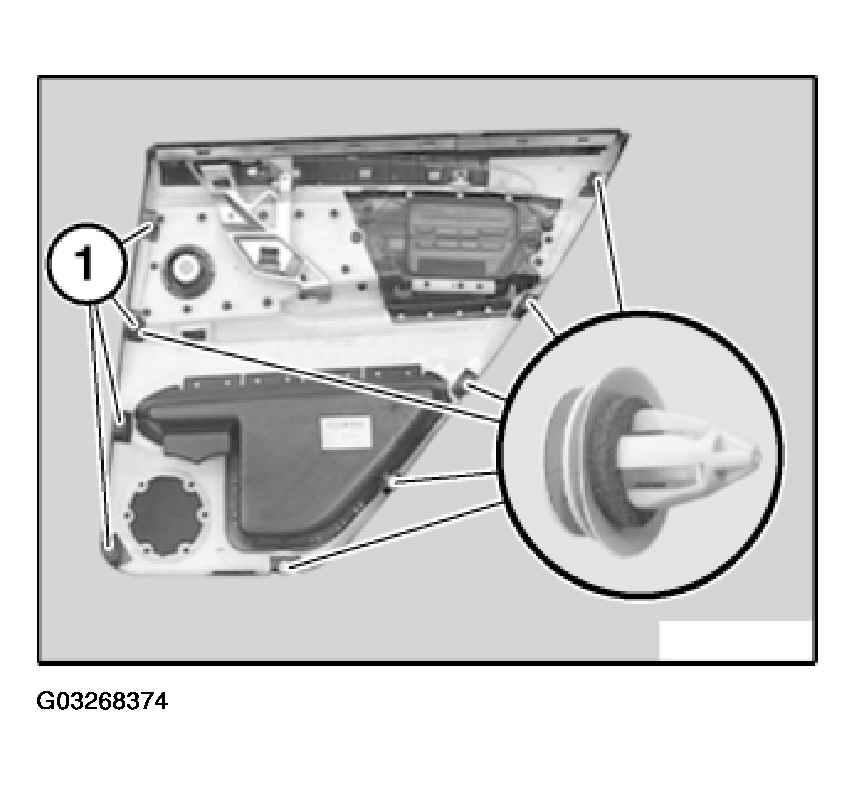

Clips (1) are longer than the other clips.

Fig 8: Fitting All Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Clips (1) are gray, the other clips are white.

Fit all clips with sealing ring.

If necessary, replace faulty clips.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check whether linkage of safety button can move freely.
If necessary, align linkages.
