63 17 060 Removing and installing left or right fog lamp (up to 10/2003)

Detach trim (1).

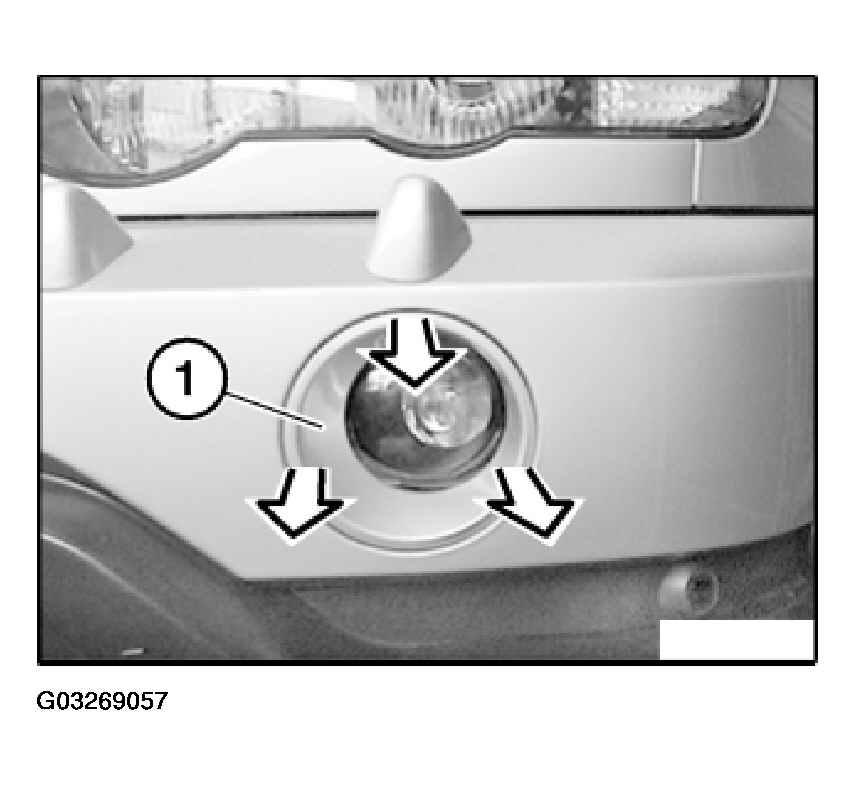

Fig 1: Detaching Fog Lamp Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Pull out fog lamp (2), unlock and disconnect plug connection. Set fog lamp (2) down.

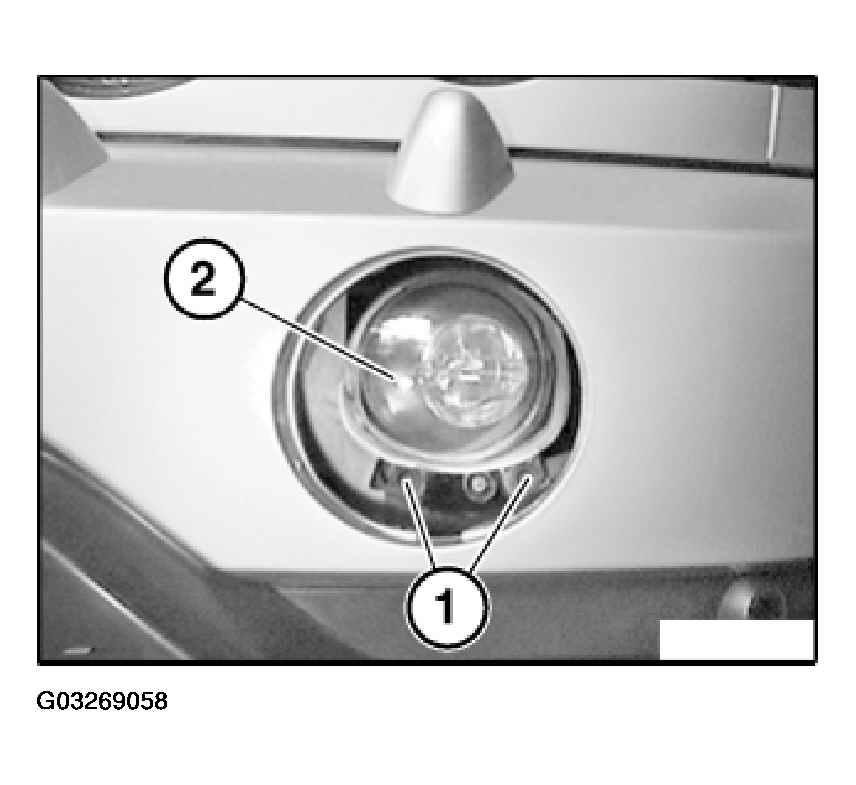

Fig 2: Removing Fog Lamp And Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed upper guide of fog lamp (2) correctly into associated fixture.
