63 17 060 Removing and installing left or right fog lamp (from 10/2003)

Necessary Preliminary Tasks:

• Remove trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM (FROM 10/03) .

Release screws (1).

Pull out fog lamp (2), unlock and disconnect plug connection.

Set fog lamp (2) down.

Installation:

Feed guide (3) of fog lamp (2) correctly into associated fixture.

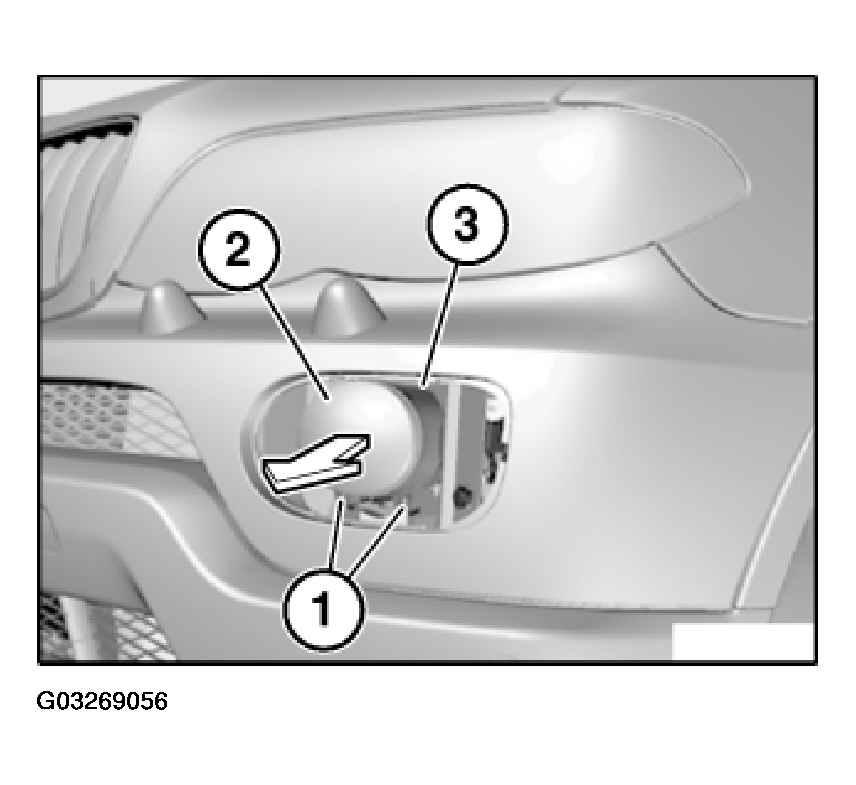

Fig 1: Disconnecting Fog Lamp Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
