51 24 115 Removing and installing/replacing striker for rear lid upper section

1. Remove trim for rear lid lower section. Refer to 51 49 090 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR LID LOWER SECTION .

Release screws (1) and remove striker (2).

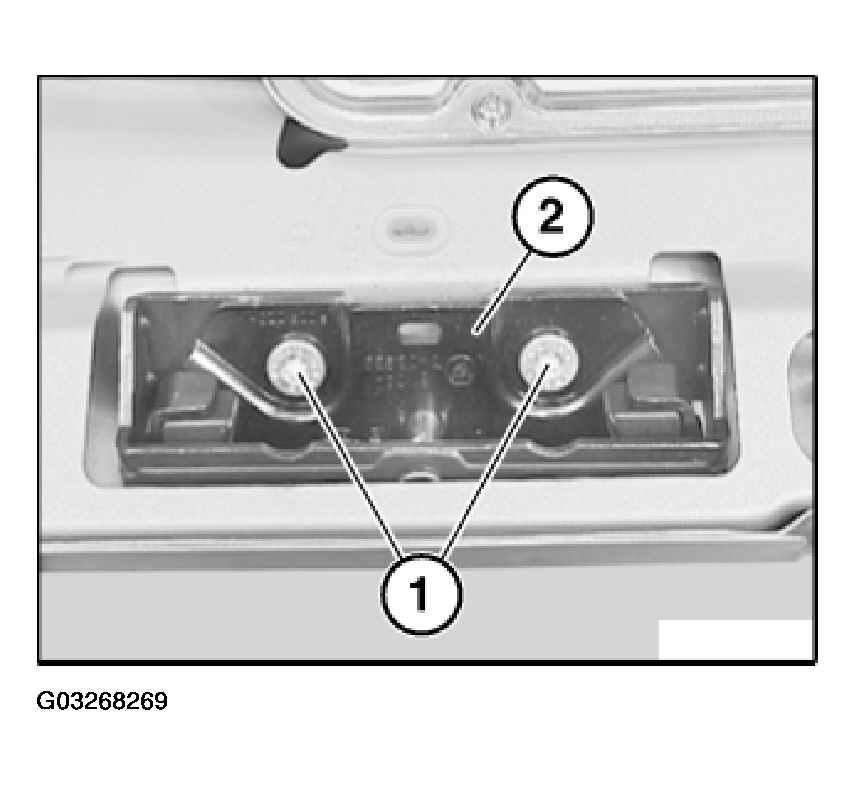

Fig 1: Removing Striker

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust rear lid latch (striker) for upper section of rear lid lock. Refer to 41 62 030 Fitting rear lid upper section .
