51 43 150 Removing And Installing Or Replacing Trim For Left Or Right Door Pillar (Bottom)

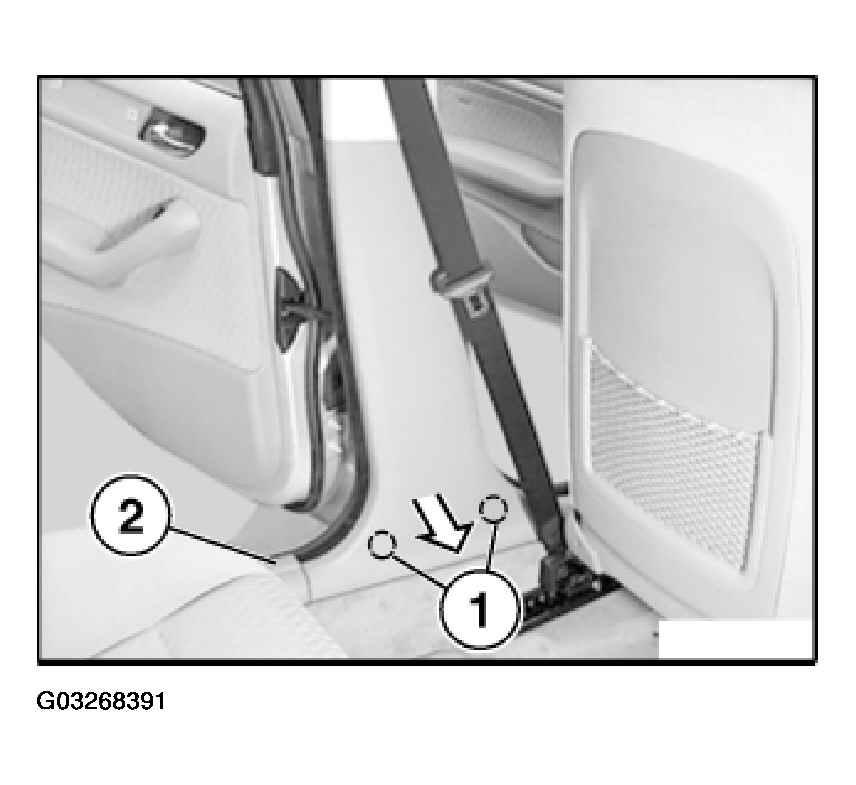

Remove rear entrance cover strip (2).

Partially remove mucket from B-pillar finisher.

Fig 1: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

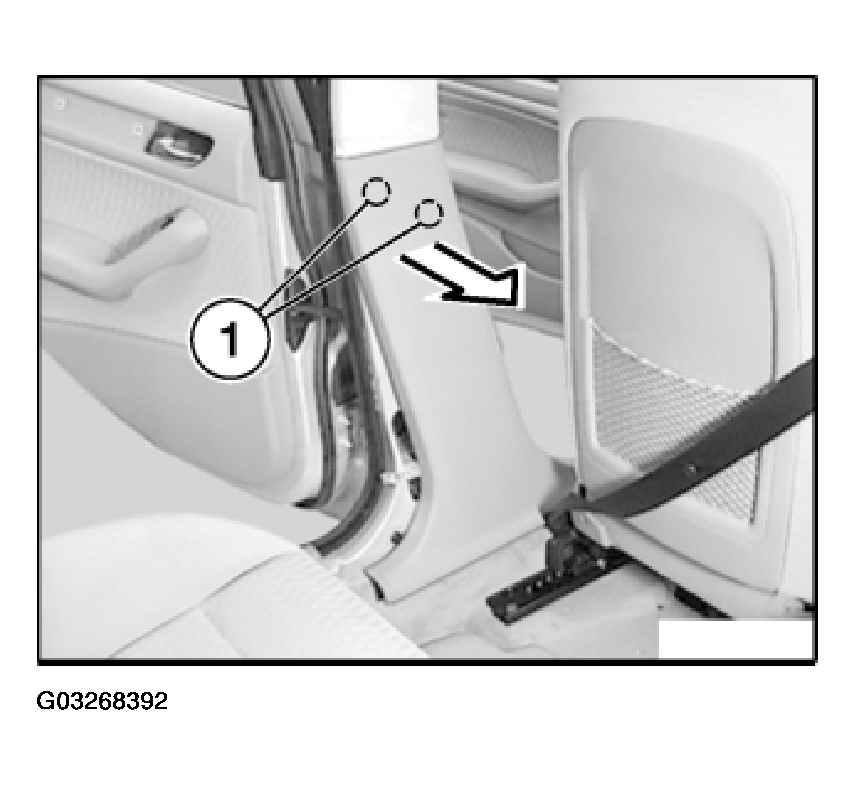

Unclip clips (1) in lower panel.

Fig 2: Removing Clips In Lower Panel

Courtesy of BMW OF NORTH AMERICA, INC.

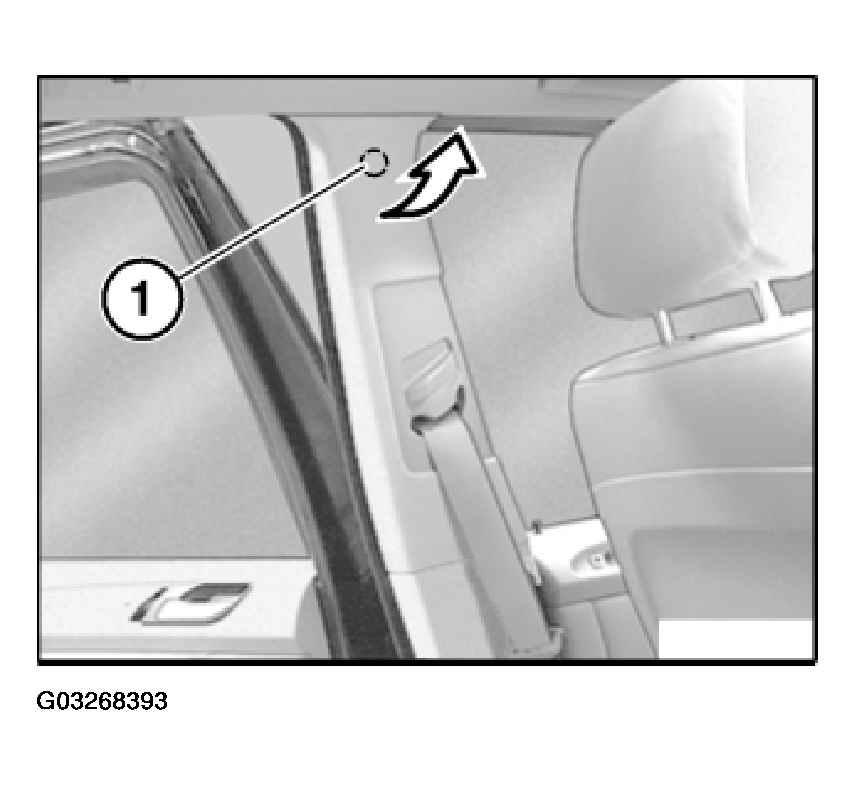

Unclip clip (1) in upper panel.

Fig 3: Removing Clip In Upper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt upper panel upwards as far as possible.

Installation:

If necessary, replace defective clip (1).

Fig 4: Replacing Defective Clip

Courtesy of BMW OF NORTH AMERICA, INC.

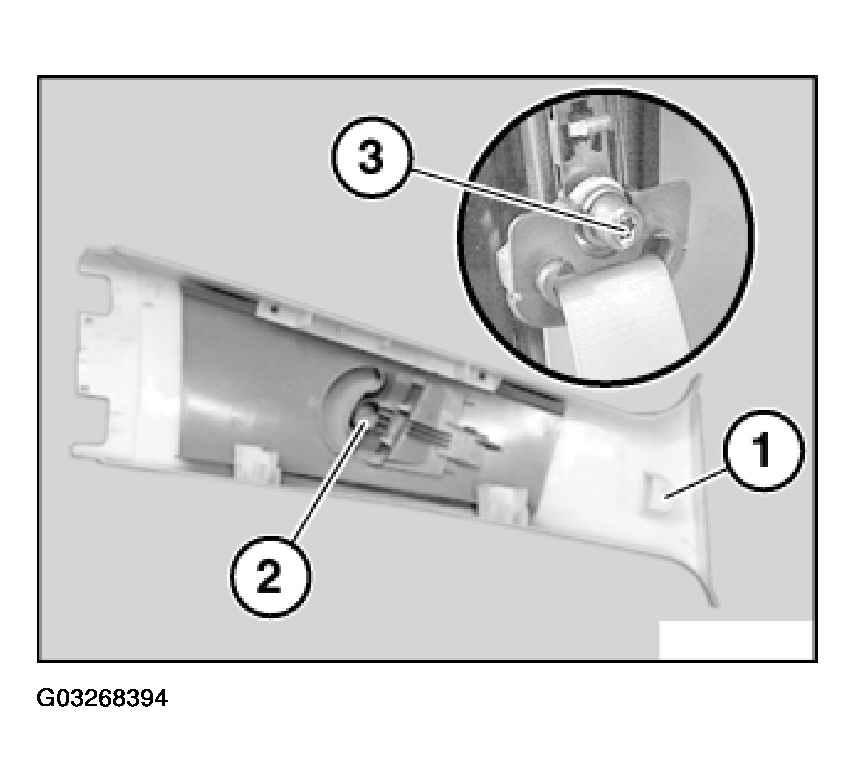

Belt adjustment fixture (2) must enclose head of belt screw (3).

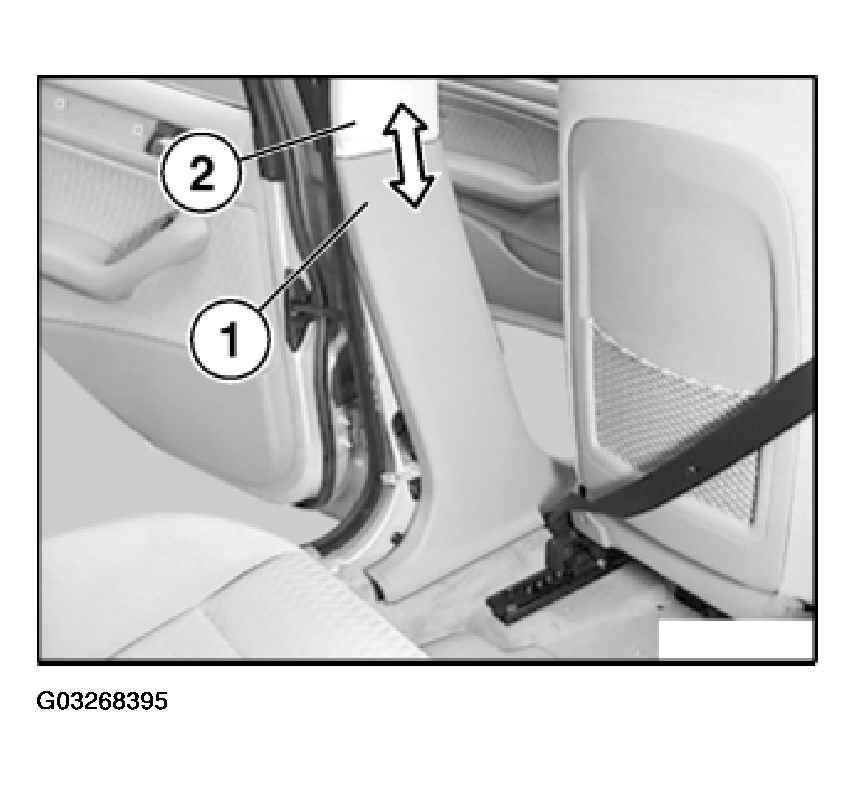

Detach lower panel (1) carefully from upper panel (2).

Fig 5: Detaching Lower Panel From Upper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

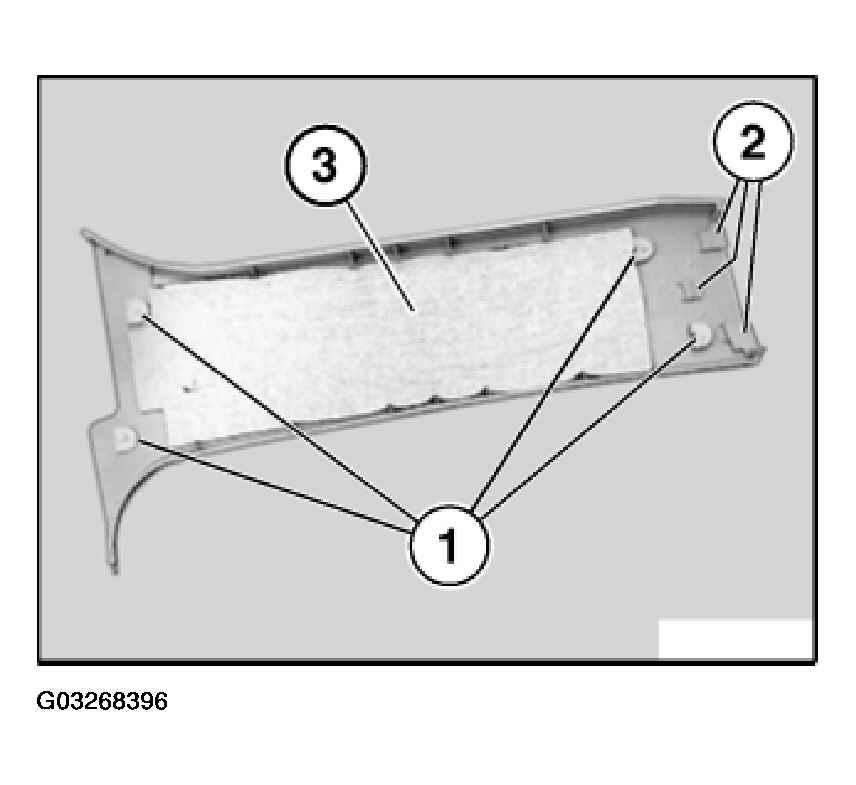

If necessary, replace defective clips (1).

Fig 6: Identifying Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Guides (2) on trim (3) must not be damaged.
