51 49 053 Removing And Installing/Replacing Side Trim For Rear Lid Upper Section

Special tools required:

Open rear lid at top.

Using special tool 00 9 317, lever out side trim (1) on left/right with clip (2) from retainer (3) in lower trim (4).

Installation:

If necessary, replace faulty retainer (5).

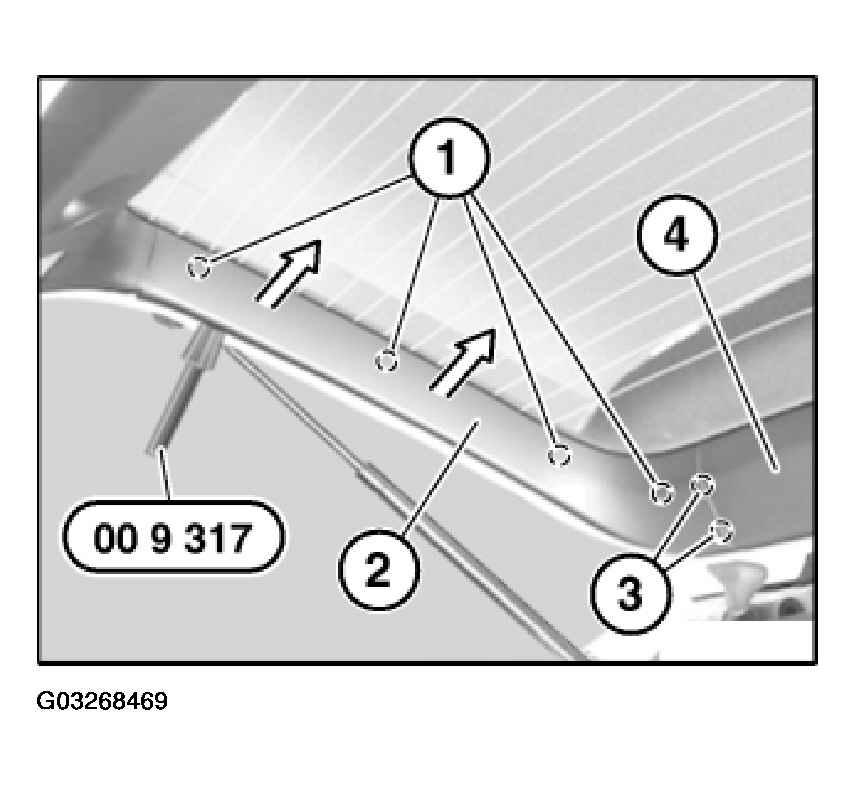

Fig 1: Levering Out Side Trim

Courtesy of BMW OF NORTH AMERICA, INC.

With special tool 00 9 317, unclip clips (1) in side trim (2).

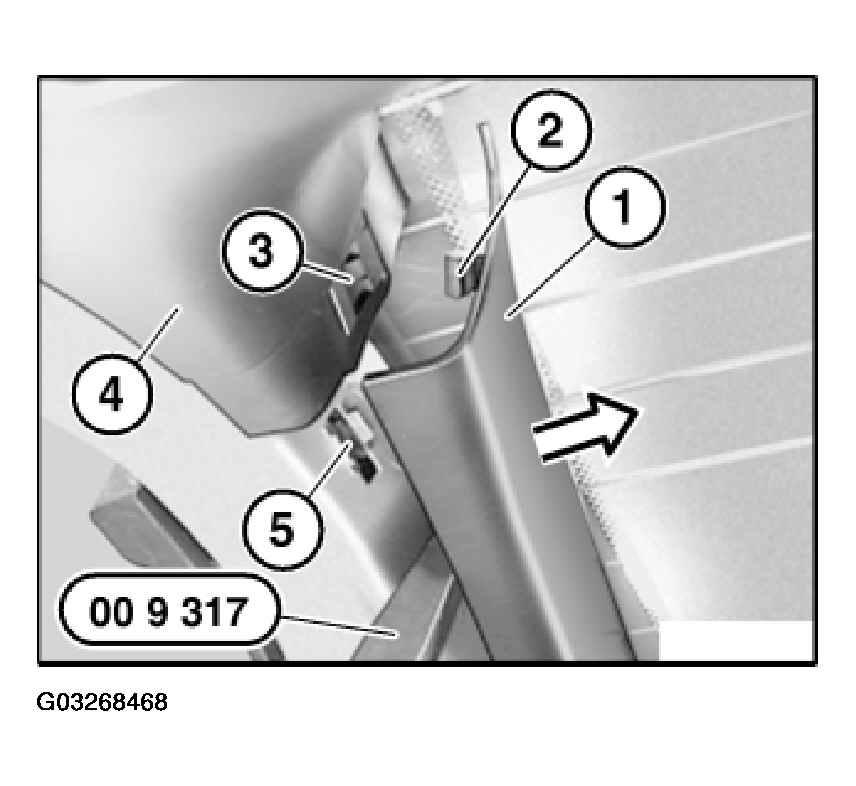

Fig 2: Removing Trim From Swallow-Tail Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Feed trim (2) out of swallow-tail guides (3) in upper trim (4) and remove.

Installation:

If necessary, detach clips (1) from trim (3) and insert in rear lid.

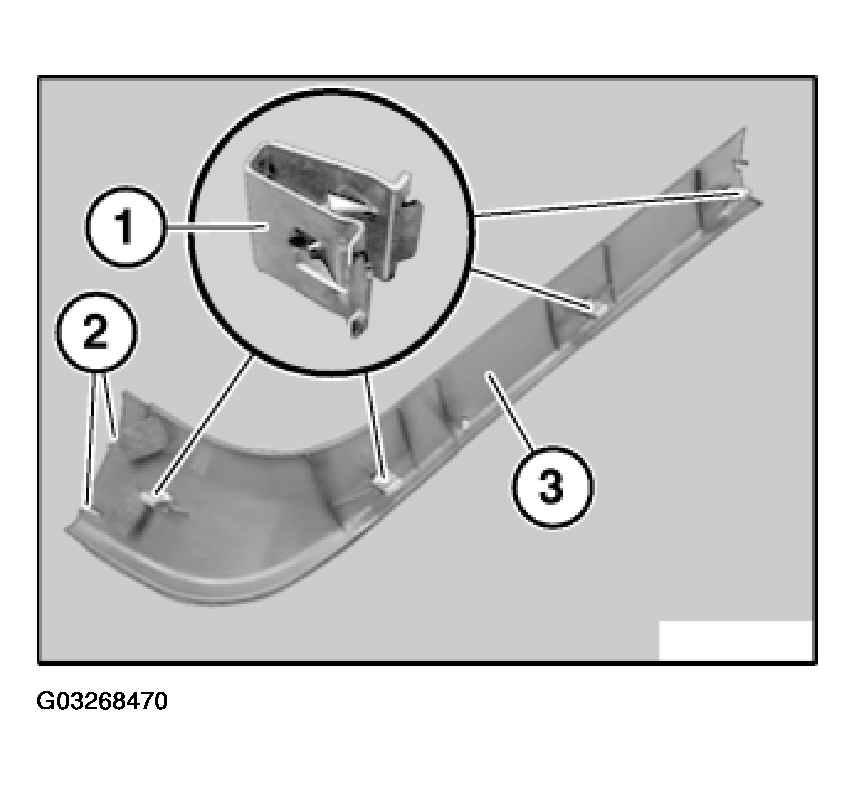

Fig 3: Detaching Clips From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Mounts (2) must not be damaged.
