51 22 170 Removing And Installing/Replacing Outside Handle On Left Or Right Back Door

Removal:

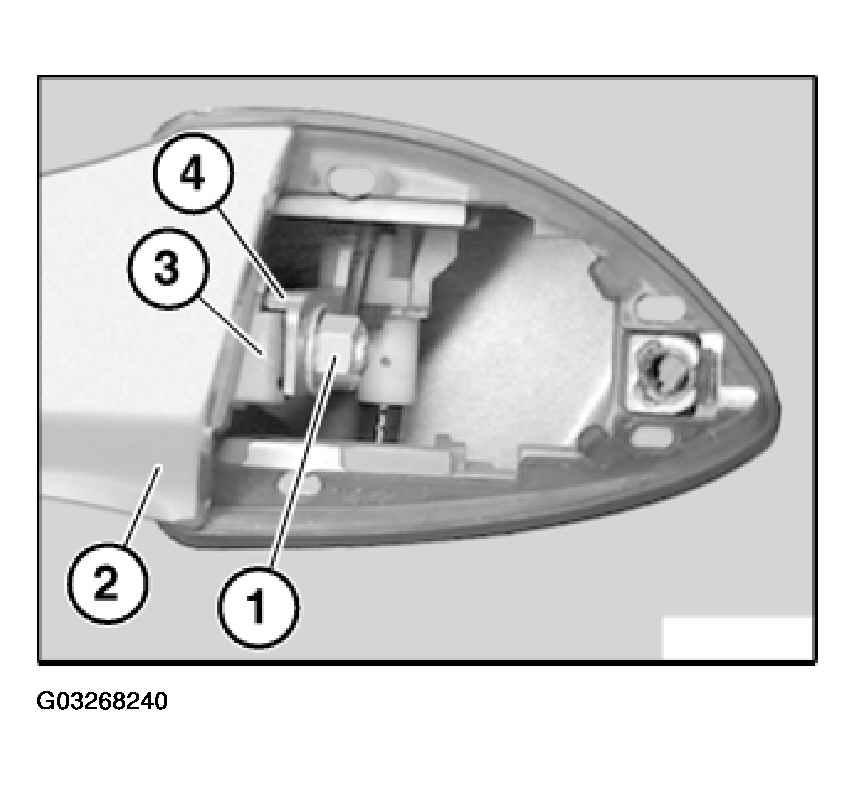

Slacken nut (1) on outside handle (2) (do not release fully).

Fig 1: Identifying Nut On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Contact surface (3) of outside handle (2) must rest without play against lock actuator (4).

Tightening torque 51 22 5AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

NOTE: Fit the older outer frame (1) of screw cover (damage to paint).

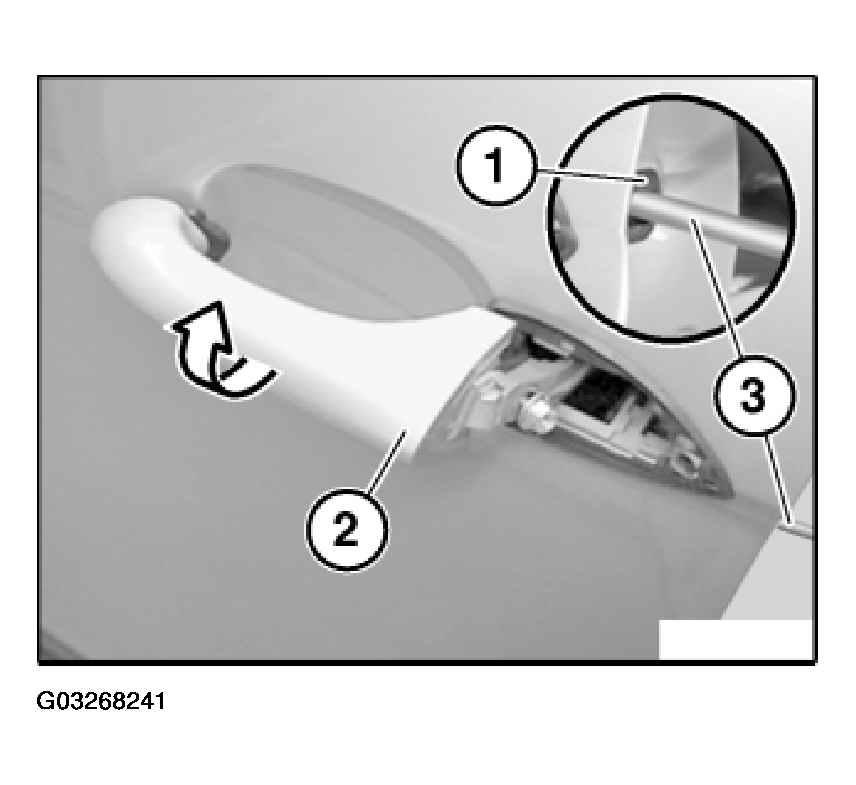

Pull outside handle (2) as far outwards/upwards as possible and secure in this position with a screwdriver (3).

Fig 2: Securing Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

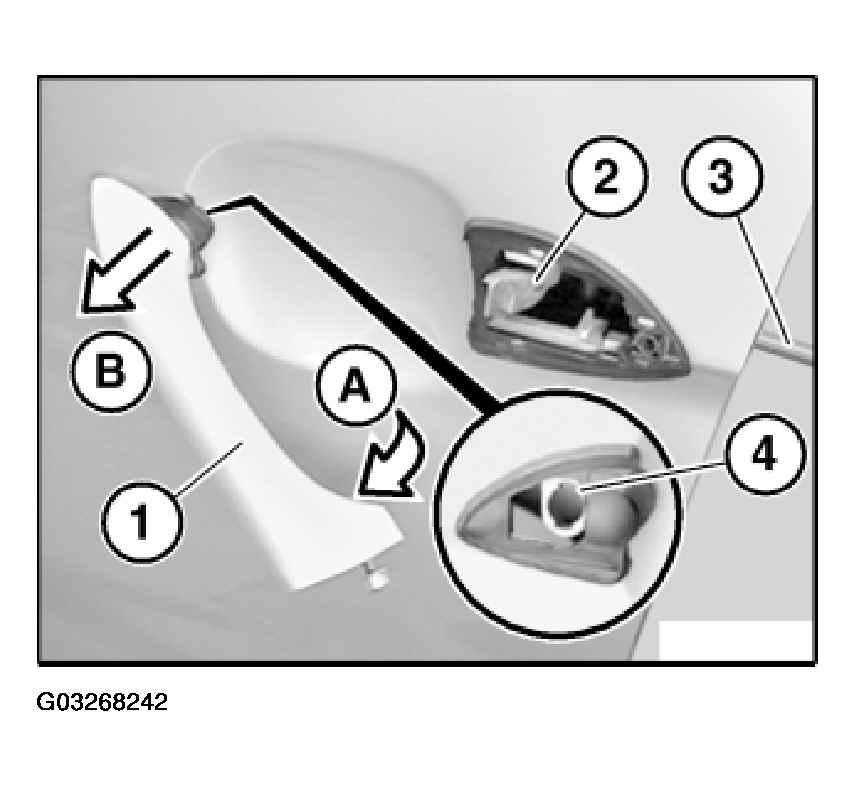

NOTE: For removal, the outside handle (1) must remain secured with a screwdriver (3).

Pull off outside handle (1) from rear lock actuator (2).
Pull off outside handle (1) in lowest setting (as shown in illustration) from front lock actuator (4).

Fig 3: Pulling Off Outside Handle
Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Old outer frame (1) of screw cover must be fitted (damage to paint).

Fig 4: Pressing Lock Actuator With A Screwdriver

Courtesy of BMW OF NORTH AMERICA, INC.

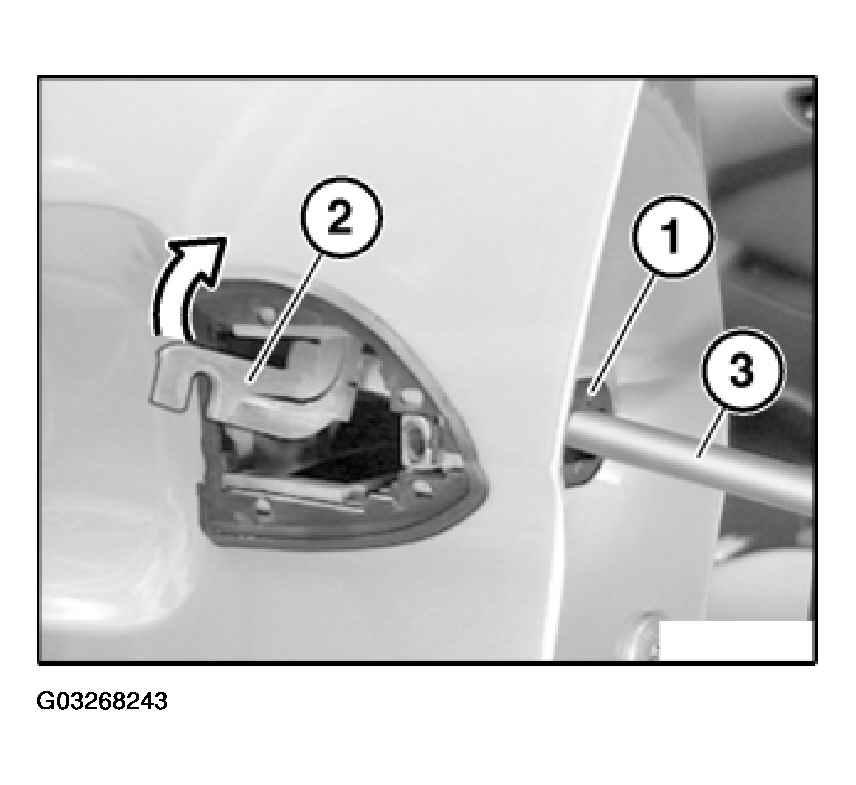

Press lock actuator (1) with a screwdriver (2) fully into "Open" setting.

Mount outside handle in this position.

Installation:

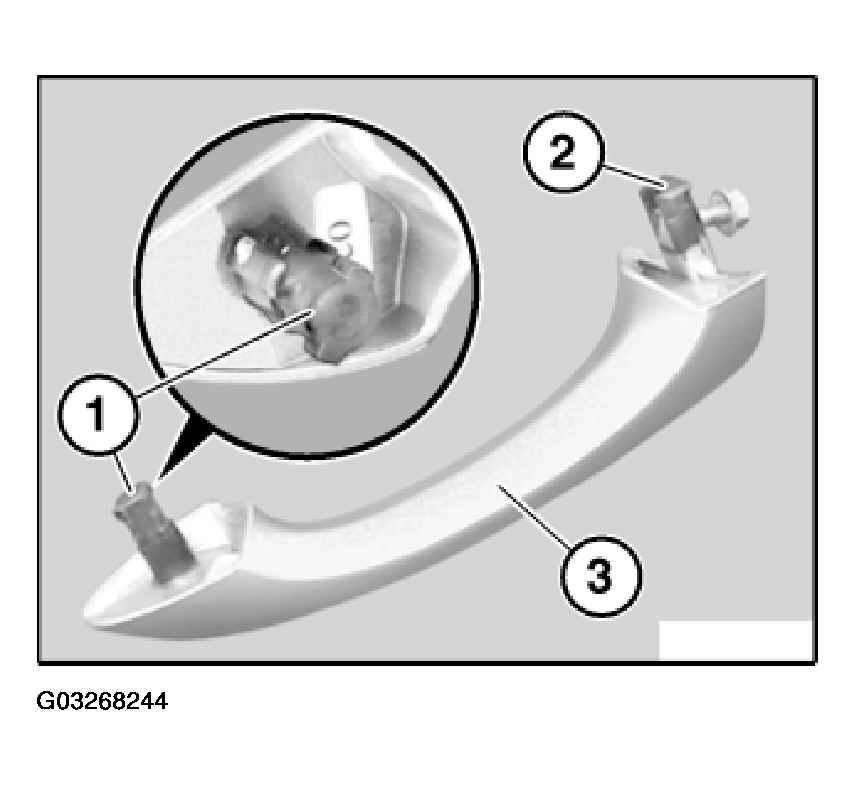

Supports (1) and (2) on outside handle (3) must not be damaged.

Fig 5: Identifying Supports On Outside Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

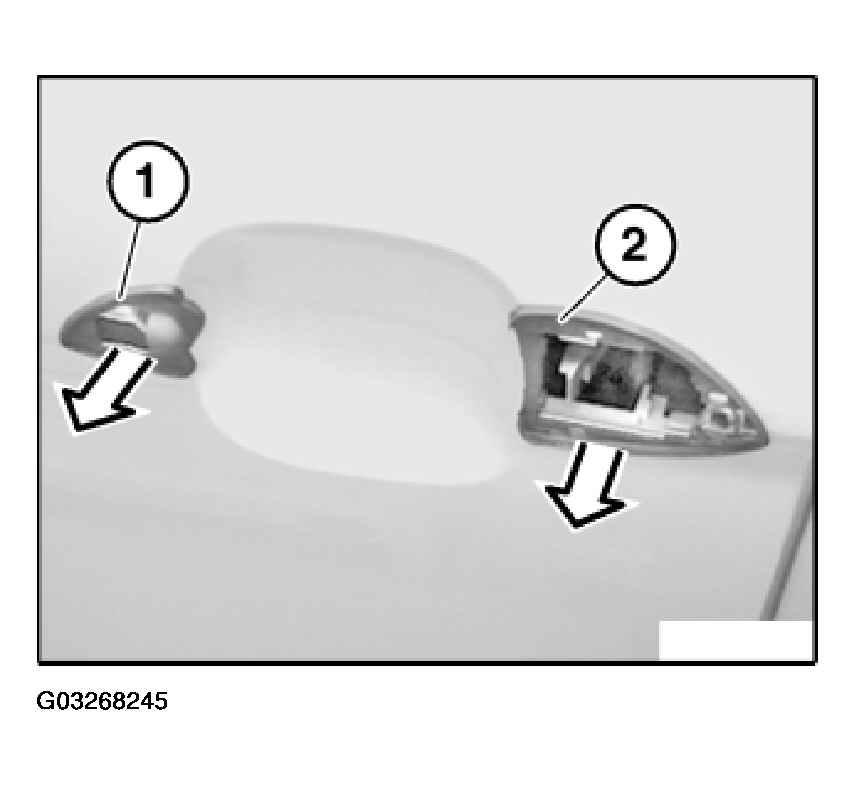

If necessary, replace faulty seals (1) and (2) for outside handle.

Fig 6: Replacing Faulty Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Carry out function check only with door open.
