51 16 201 Replacing center console

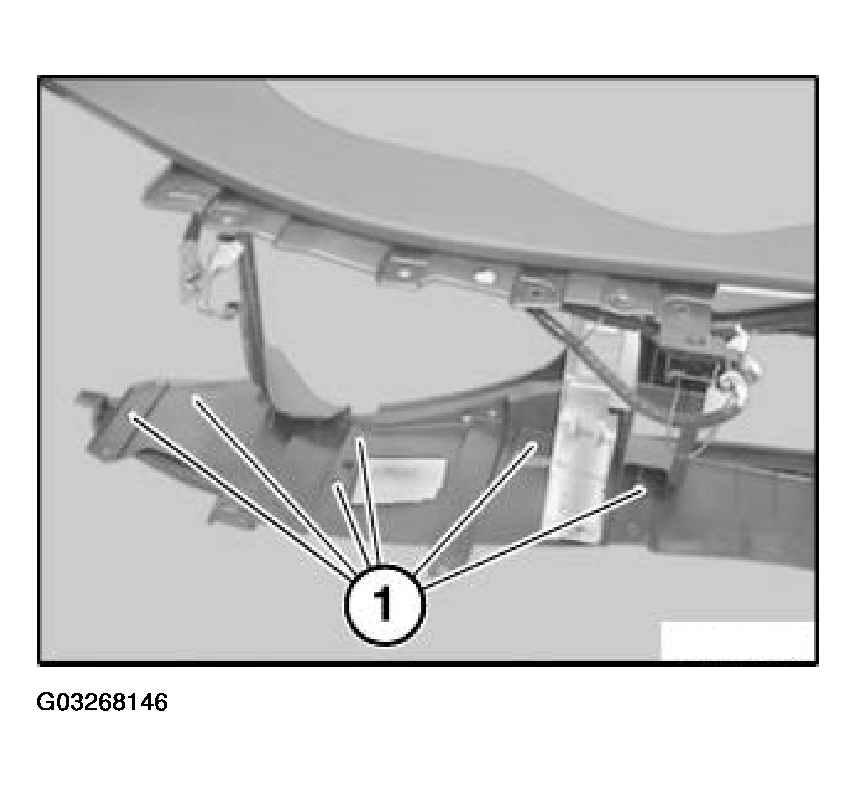

Release left/right screws (1).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

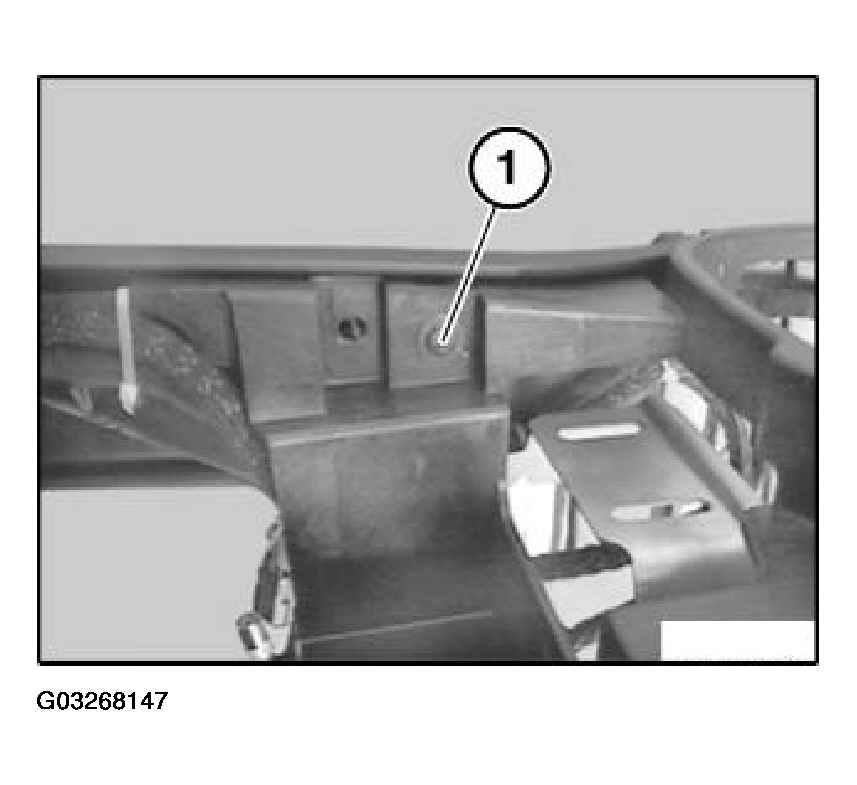

In addition, release screw (1) on driver's side.

Fig 2: Releasing Screw On Driver'S Side

Courtesy of BMW OF NORTH AMERICA, INC.

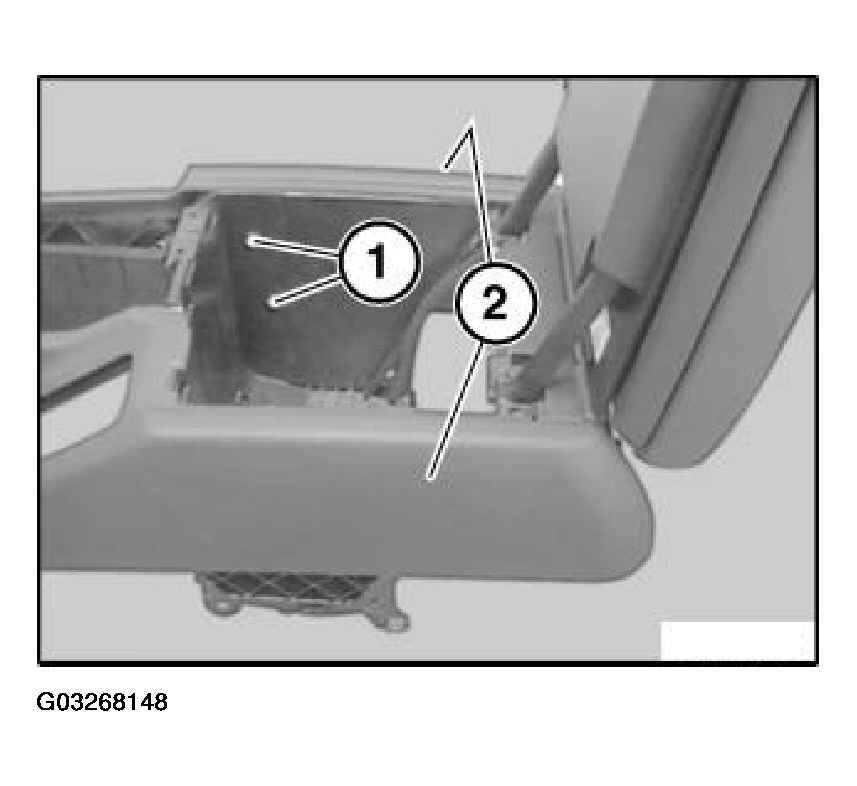

Release left/right screws (1) and remove side sections (2).

Fig 3: Removing Side Sections

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

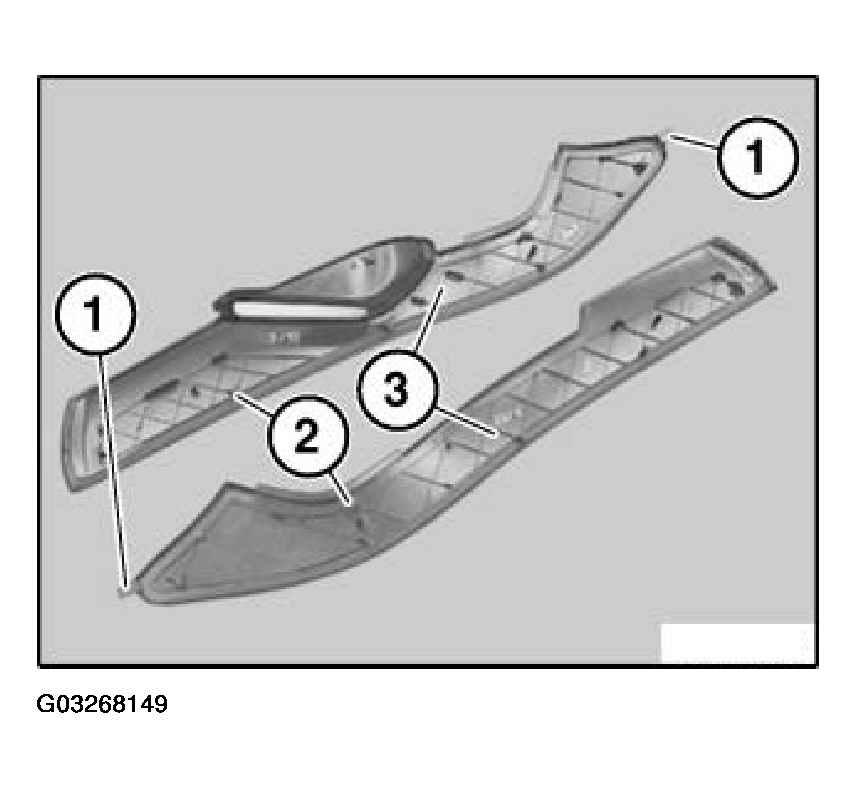

Guides (1) and all screw points (2) of side sections (3) must not be damaged.

Fig 4: Identifying Screw Points Of Side Sections

Courtesy of BMW OF NORTH AMERICA, INC.

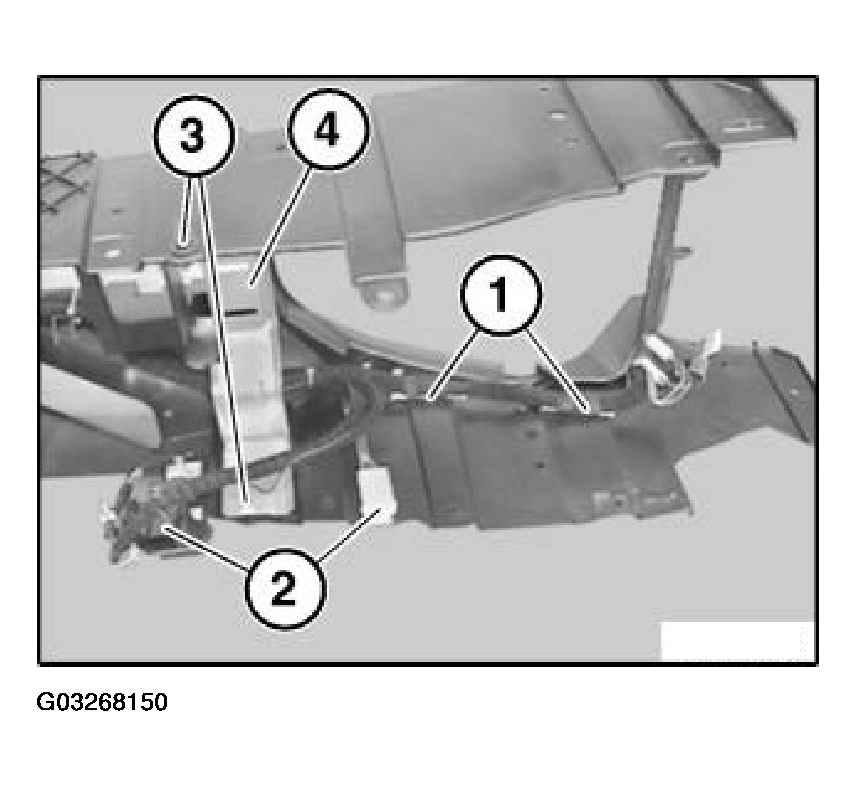

Release cable holder (1).

Fig 5: Releasing Cable Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn and detach plug connections (2).

Release screws (3) and remove holder (4).

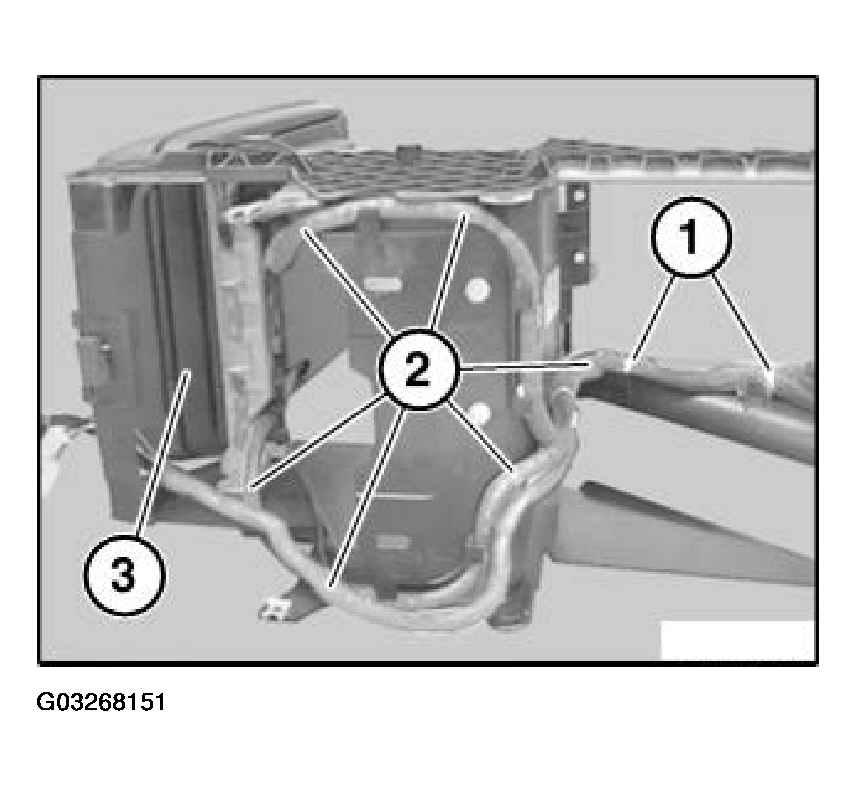

Unfasten cable clip (1).

Fig 6: Unfastening Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Feed cable (2) out of center console (3).

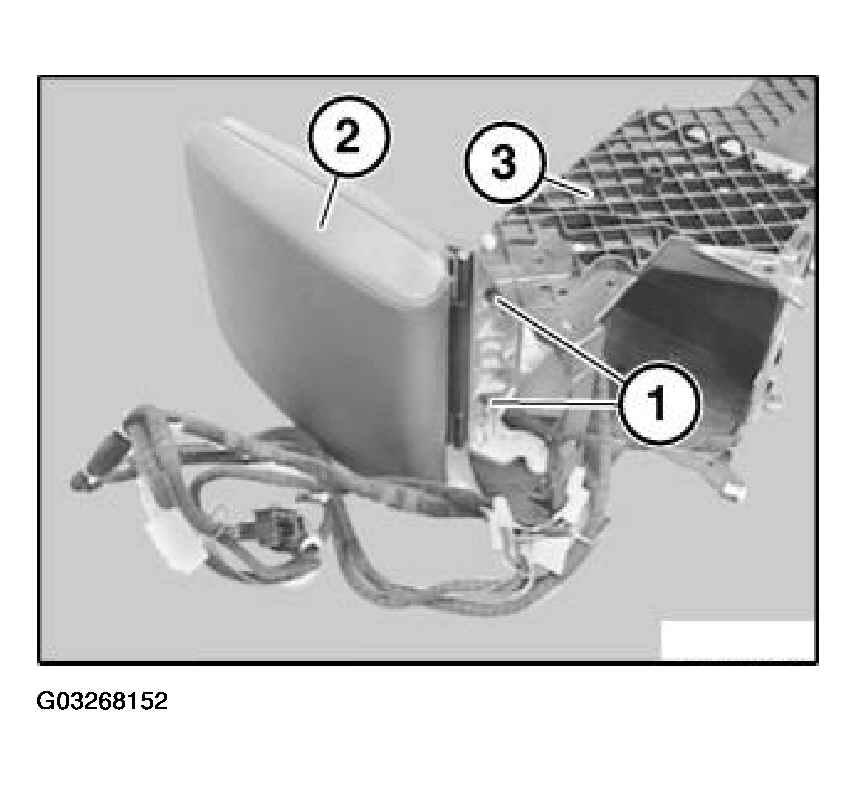

Release screws (1) and remove armrest (2) from center console (3).

Fig 7: Removing Armrest From Center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and remove frame (1).

Fig 8: Removing Frame

Courtesy of BMW OF NORTH AMERICA, INC.

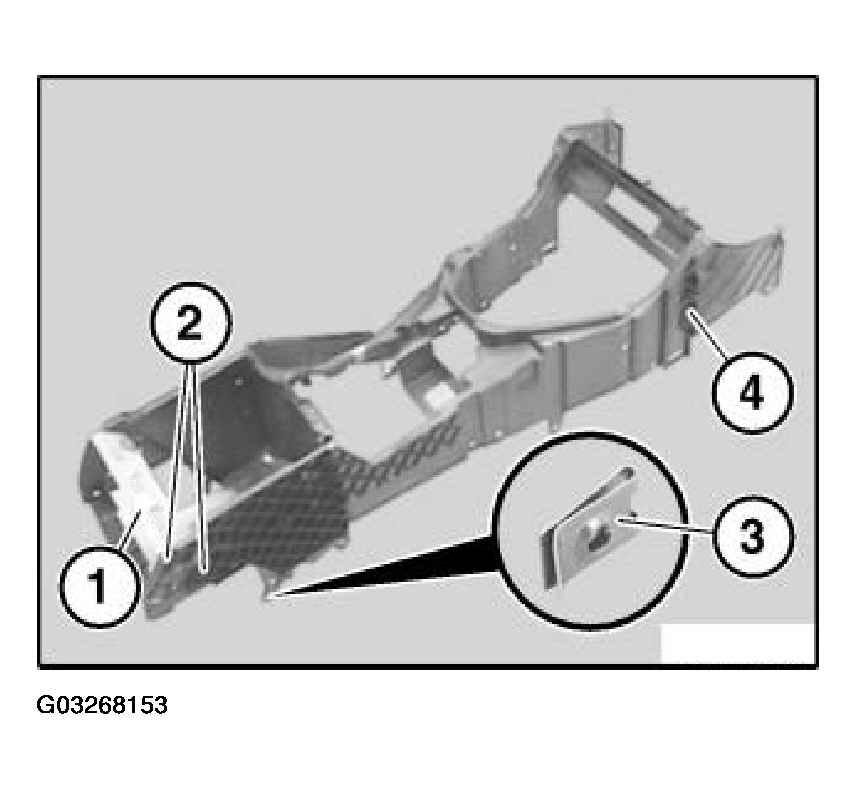

Remove left/right metal nuts (3) from center console (4).
