51 41 017 Removing And Installing/Replacing Cover On Door Handle, Front Left Or Right

Special tools required:

• 00 9 317

Lever out cover (1) with special tool 00 9 317 (trim panel wedge).

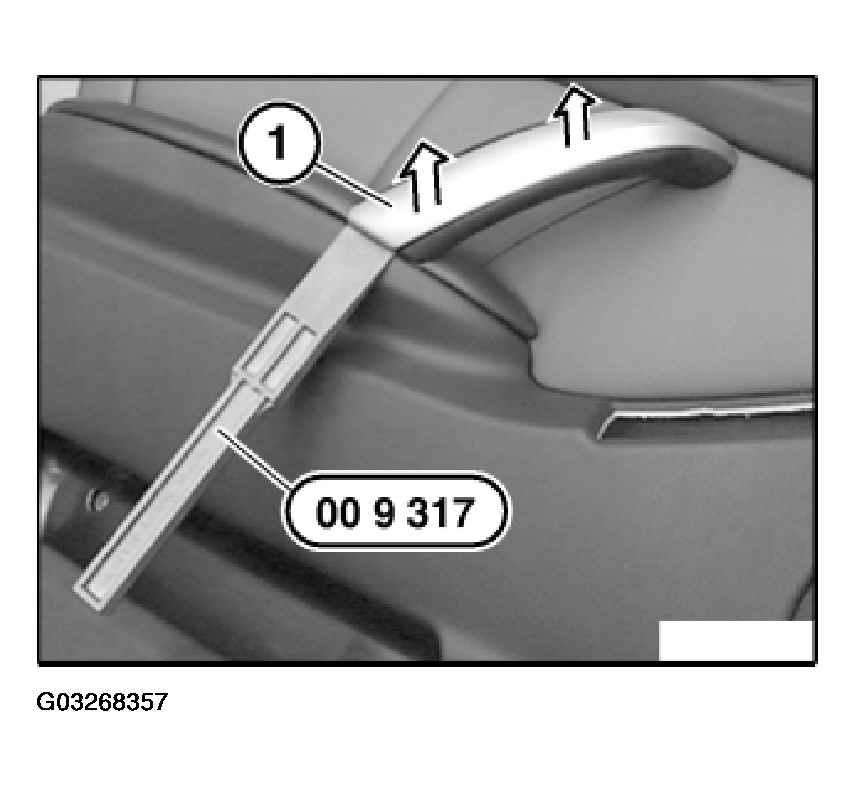

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on cover (2) must not be damaged.

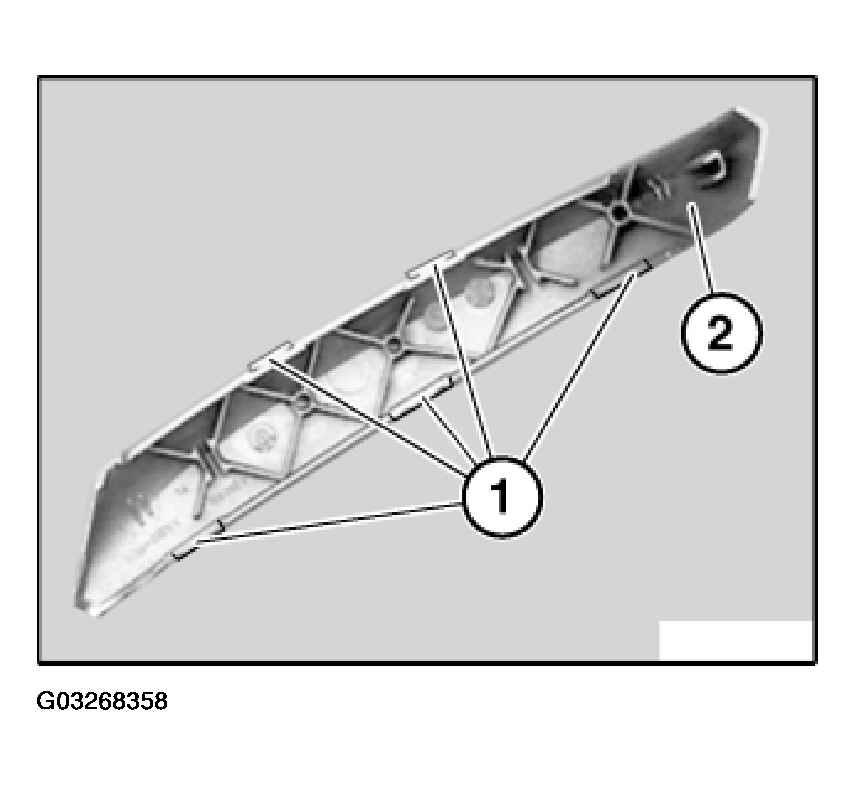

Fig 2: Identifying Catches On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
