22 11 011 Replacing Left Engine Mount (N62TU)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect battery . See 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Secure engine in installation position.
Remove reinforcement plate . See 31 10 010 REMOVING AND INSTALLING/REPLACING REINFORCEMENT PLATE .
Remove engine support arm .

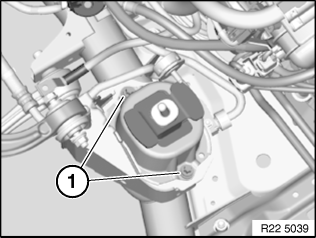

Release screws (1) and remove engine mount (2). Tightening torque 22 11 1AZ, see EXHAUST SYSTEM - TIGHTENING TORQUES .

Fig 1: Releasing Screws And Removing Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

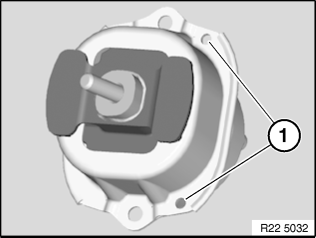

Holes (1) in engine mount must point to middle of vehicle. See Figure.
