65 12 220 Removing and installing (replacing) satellite radio (only US version from 09/2009, M model from 07/2009)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove CAR COMMUNICATION COMPUTER .

When replacing, please observe:

Record SID number (1) of the removed device.

NOTE: The SID number (1) can be found on the label of the housing. Location may be different, depending on the manufacturer of the device.

Record SID number (1) of the new device.

Input enabling code from the ASAP portal.

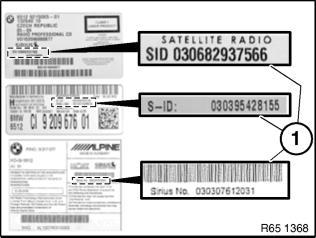

Fig 1: Sid Number (1) Can Be Found On Label

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement: Perform vehicle programming and coding with BMW scan tool.

NOTE: Contact Sirius. Use the SID number to cancel current device and register new one.
