36 11 533 Removing and installing/renewing tire pressure control wheel electronics (2nd Generation)

WARNING: This page is about a different car, the 2010 BMW X5, 2009 BMW X5, 2008 BMW X5, and 2007 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Before removing or refitting, check which generation of wheel modules is fitted. If the electronic wheel module has been removed, the complete valve must be replaced.

NOTE: There are two different electronic wheel modules. The SP303 electronic wheel module must be used with RDC-01 and RDC-02 from model year 03/06. The Gen3 electronic wheel module must be used with RDC-LC from model year 09/09. If a tire sealant has been used, replace the electronic wheel module. When a tire has been removed, do not clean the rim with installed electronic wheel module with high-pressure cleaner. Do not treat electronic wheel module with solvents, cleaning agents etc. If dirty, wipe with a clean cloth only. Before the installation of new wheel electronics with valve, thoroughly clean the valve bore of the wheel rim. Do not clean electronic wheel module with compressed air.

Remove tire

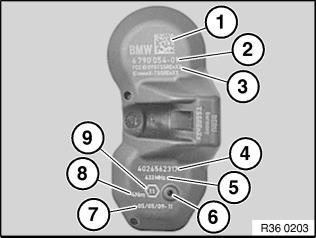

Labelling of Gen3 electronic wheel module for RDC-LC

Data Matrixcode
BMW part number
FCC ID = radio authorization
Electronic wheel module ID
Transmission frequency
Pressure sensor
Width across flats of union nut
Tightening torque
Production date of electronic wheel module

Fig 1: Labelling Of Gen3 Electronic Wheel Module For RDC-LC

G00496554

Courtesy of BMW OF NORTH AMERICA, INC.

Labelling of electronic wheel modules SP303 RDC-01 and RDC-02

Transmission frequency of electronic wheel module
Large Torx socket screw
BMW part number
Tightening torque of Torx screw and union nut
Width across flats of union nut
Serial number of electronic wheel module
Production date of electronic wheel module

Fig 2: Labelling Of Electronic Wheel Modules SP303 RDC-01 And RDC-02

G00496555

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The following illustrations only show removal and refitting of the 3rd generation wheel module. The instructions also apply without alteration to the wheel module SP303.

Removing electronic wheel module Release union nut (1).

Fig 3: Release Union Nut (1)

G00496556

Courtesy of BMW OF NORTH AMERICA, INC.

Remove wheel module and valve (1) from valve hole.

Fig 4: Remove Wheel Module And Valve (1) From Valve Hole

G00496557

Courtesy of BMW OF NORTH AMERICA, INC.

Using suitable pliers (2), unscrew valve (1) from the thread of the square-head bolt (3), while holding the wheel module (4) firm. Completely unscrew valve (1). Remove square-head bolt from wheel module holder. Installation: Replace valve.

Fig 5: Using Suitable Pliers (2), Unscrew Valve (1) From The Thread Of The Square-Head Bolt (3)

G00496550

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before the installation of new wheel electronics with valve, thoroughly clean the valve bore of the wheel rim! Also make sure that the valve bore is free of burrs

Installing electronic wheel module: Insert new square-head bolt (1) in wheel module (2). Screw single-use valve insert (3) three turns onto square-head bolt (1).

Fig 6: Installing Electronic Wheel Module Insert New Square-Head Bolt (1) In Wheel Module (2)

G00496551

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure the square head screw (1) fits exactly in the holder for the electronic wheel module!

Insert valve insert with electronic wheel module into cleaned valve bore. Both outer feet on the underside of the wheel module must be resting against the rim wall.

Fig 7: Make Sure The Square Head Screw (1) Fits Exactly In The Holder For The Electronic Wheel Module

G00496552

Courtesy of BMW OF NORTH AMERICA, INC.

Screw on sleeve nut (1) by hand as far as it will go. Tighten sleeve nut until the inner strip-off ring breaks. Breakage is perceptible audibly and tangibly (momentary drop in torque resistance). Then fully tighten sleeve nut (1). Tightening torque, see 36 11 1AZ in 36 11 WHEEL RIMS .

Fig 8: Screw On Sleeve Nut (1) By Hand As Far As It Will Go

G00496553

Courtesy of BMW OF NORTH AMERICA, INC.

Important! Fixing must not under any circumstances be retightened! The square-head bolt should be located precisely in the wheel module holder. After tightening, the electronic wheel module must fit snugly on the rim!
