13 54 250 Replacing air intake hose (M54)

Switch off ignition.

Release hose clamp (3).

Detach intake hose (5) from air-mass flow sensor.

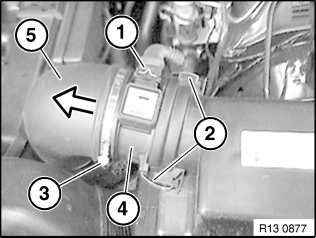

Fig 1: Identifying Intake Hose, Clamps, Air-Mass Flow Sensor, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check sealing ring (1) between air-mass flow sensor and intake hose for damage, replace if necessary.

Coat sealing ring (1) with acid-free grease.

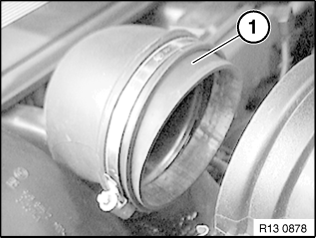

Fig 2: Identifying Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable tie (2) of line (1) on intake hose (3).

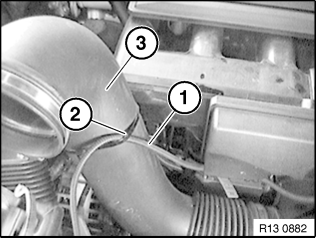

Fig 3: Locating Intake Hose, Line, And Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Pull intake hose (2) out of connecting piece and remove.

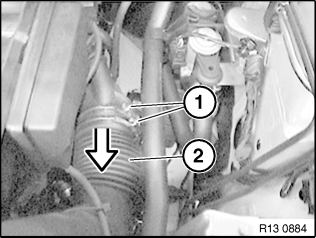

Fig 4: Identifying Intake Hose And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
