Special tools required:
- 12 7 110
Remove and install alternator drive belt.
Depending on alternator type, grip shaft with:
- hexagon socket
- multi-tooth socket or
- Torx socket wrench

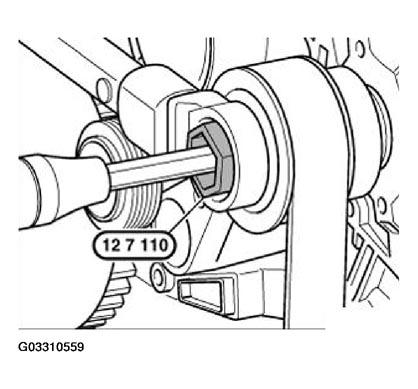

Release nut with special tool 12 7 110.
Installation:
Tightening torque 12 31 2AZ / 12 31 3AZ .
