Telephone System Overview

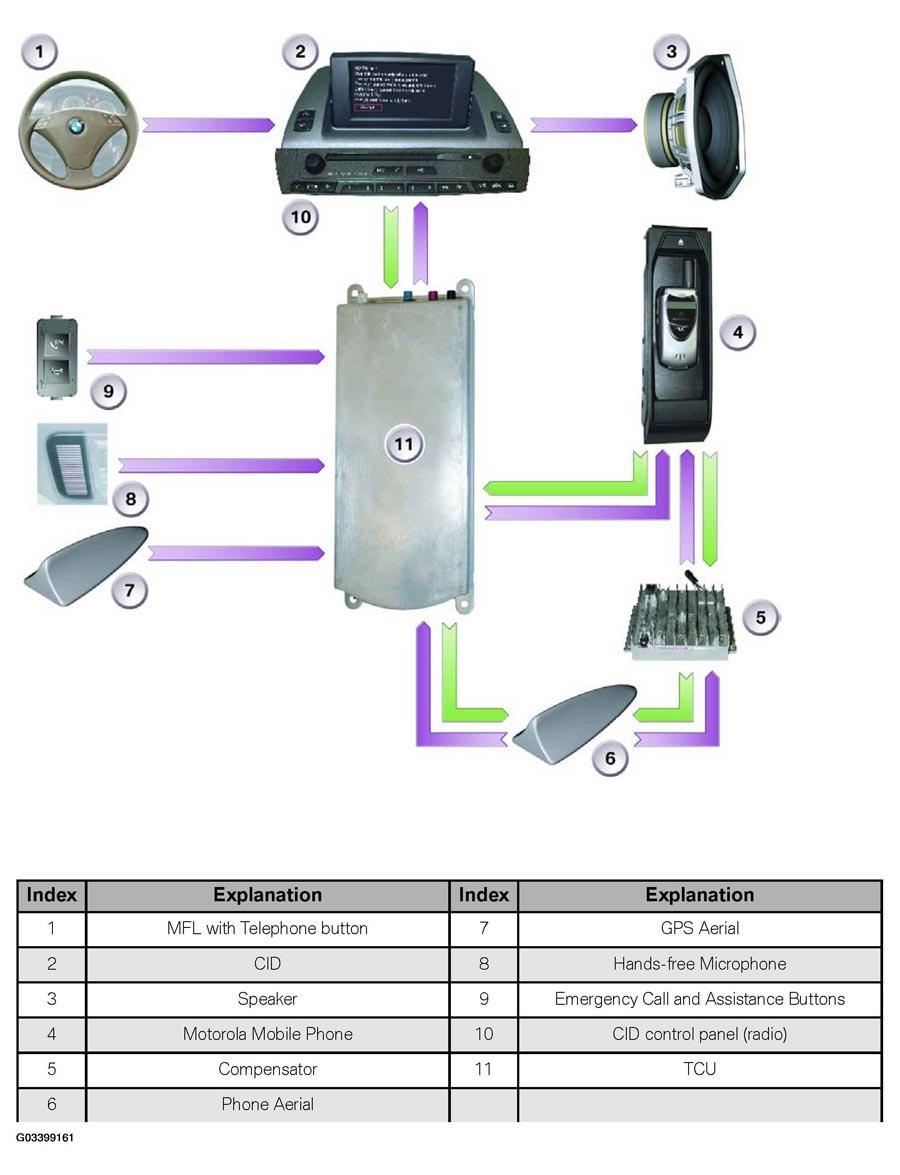

Fig 1: Identifying Telephone System Overview
G03399161Courtesy of BMW OF NORTH AMERICA, INC.
