FM Aerial Diversity

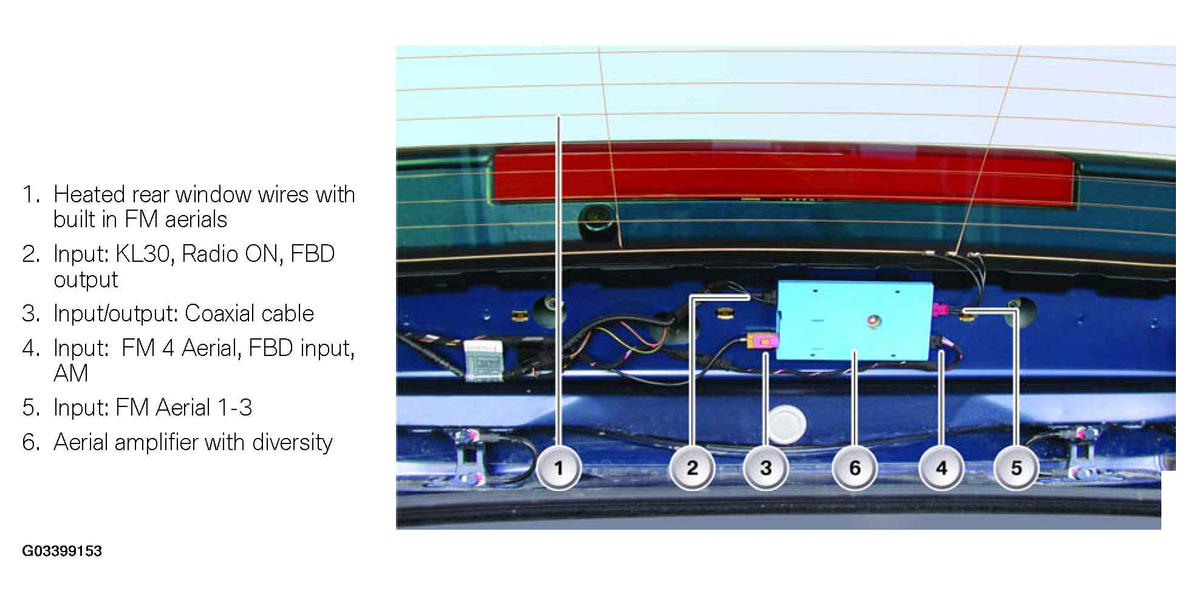

The tuner is connected to the aerial diversity module via an aerial connector (Fakra) and a coaxial cable. The antenna diversity switches to the next aerial as soon as the signal quality of the active FM aerial exceeds a defined threshold value. No interruption can be heard when the diversity module switches over. Evaluation of the signal quality and the switch over only occur in the aerial diversity module.
