Power Supply: Fuses

The E83 is equipped with two fuse holders. The luggage compartment fuse holder with the fuse of the front fuse holder is located next to the vehicle battery in the spare wheel recess.

The glovebox fuse holder carries the majority of the fuses. The main fuses for the DME and the ignition/starter switch are located on the rear side of the glovebox fuse holder.

The luggage compartment houses the vehicle battery and the luggage compartment fuse holder. The luggage compartment fuse holder supplies the glovebox fuse holder.

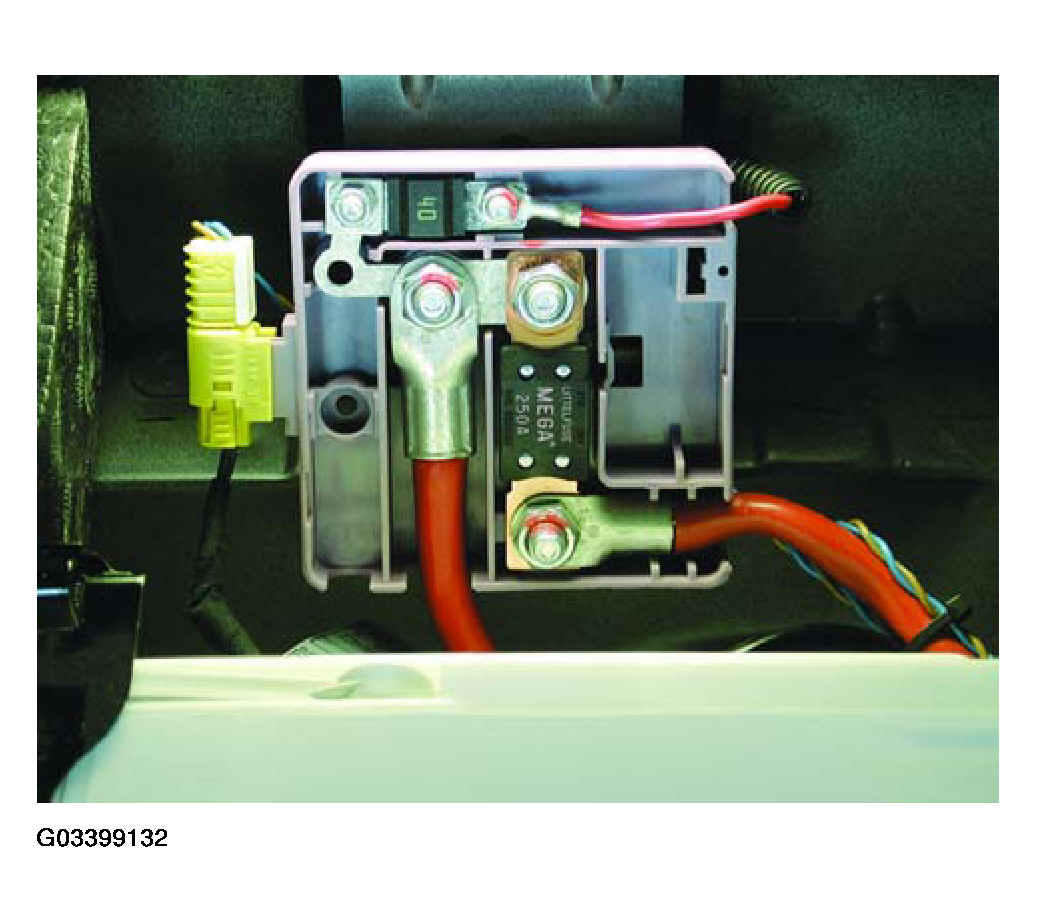

Fig 1: Identifying Luggage Compartment Fuse Holder With Fuse (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

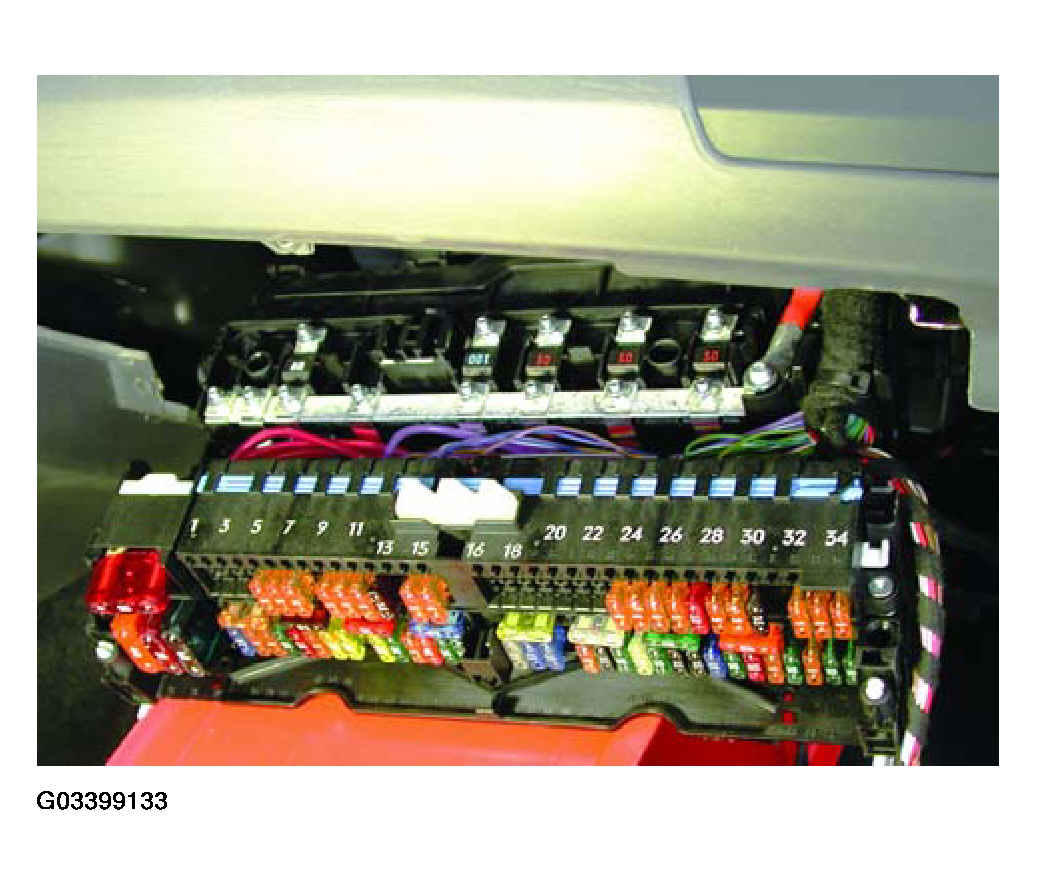

Fig 2: Identifying Luggage Compartment Fuse Holder With Fuse (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

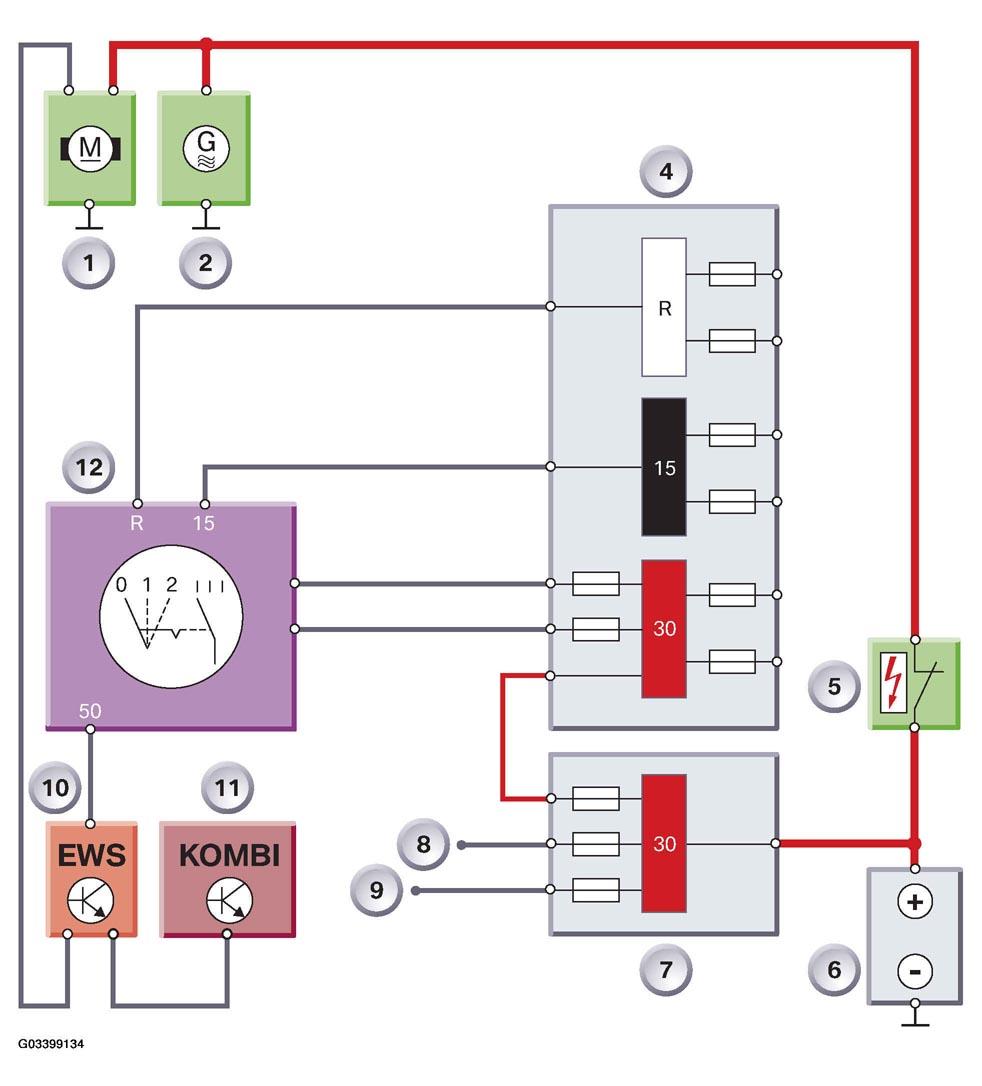

Fig 3: Voltage Supply Schematic

Courtesy of BMW OF NORTH AMERICA, INC.
