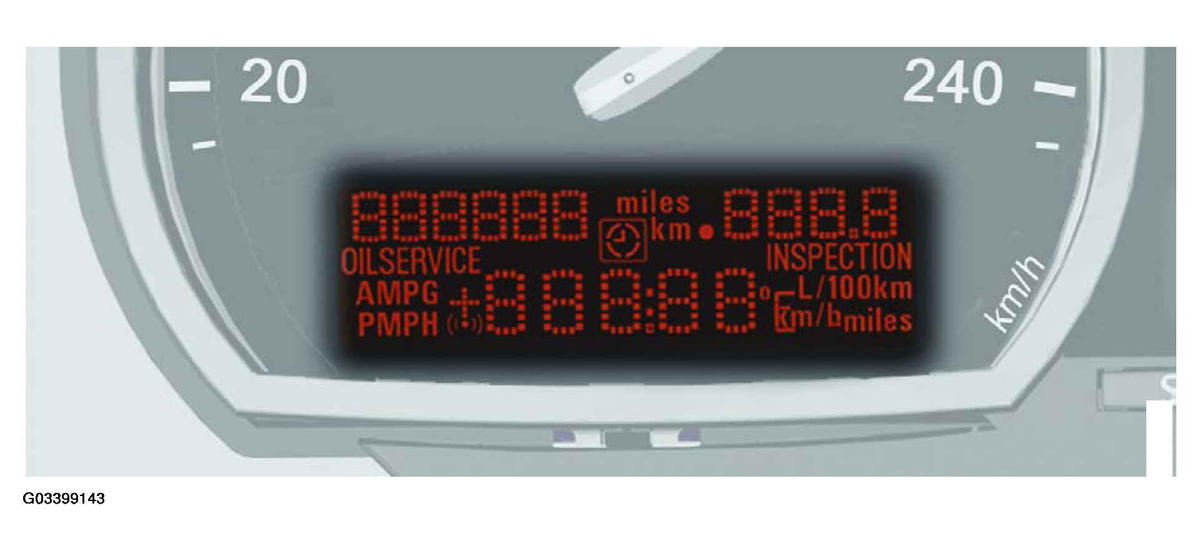

LC Display
The LC display is integrated in the speedometer. The LC display indicates the kilometer reading/mileage and time as well as the on-board computer functions. The service interval indicator is also shown in the LC display.
A tampering dot indicates if there are different vehicle identification numbers in the light switch cluster and in the instrument cluster.
The LC display is made up of orange-colored segment characters (similar to a dot matrix). The brightness of the display is determined by the light switch cluster.
The LC display is activated with terminal R "ON".
